| 电口 |
1 x 10 / 100Base-TX port |
| 光纤端口 |
2 x 100Base-FX port |
| 光纤接口 |
SFP |
| 光学波长 |
Varying on SFP module |
| 最大发射功率（dBm） |
Varying on SFP module |
| Launch Power (dBm)-Min. |
Varying on SFP module |
| Receive Sensitivity |
Varying on SFP module |
| Maximum Input Power |
Varying on SFP module |

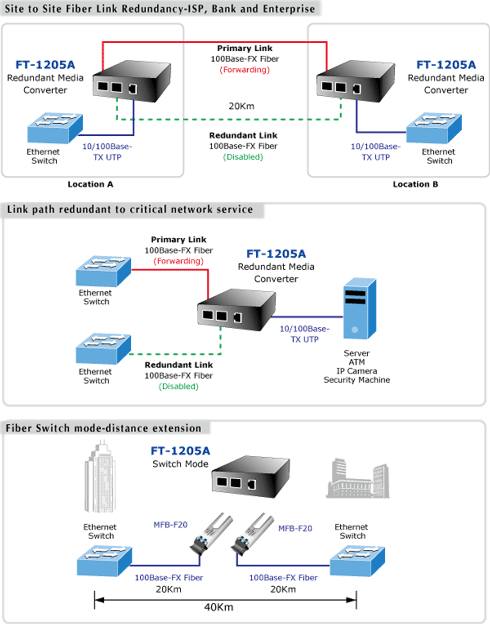

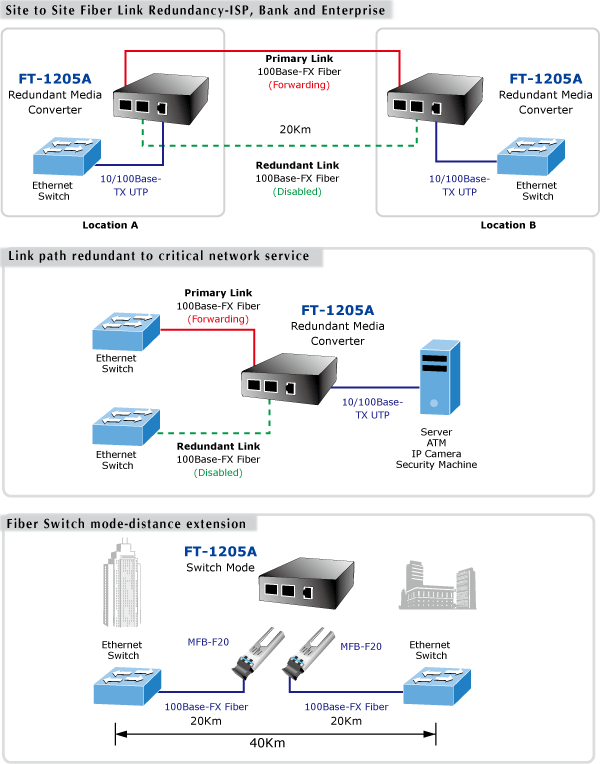

| Redundant Link |
Port 1 (Primary)
Port 2 (Backup) |
| Cable-Twisted-pair |
10Base-T : 2-Pair UTP Cat. 3, 4, 5, up to 100 m
100Base-TX : 2-Pair UTP Cat. 5, 5e up to 100 m |
| Cable-Fiber-Optic Cable |
? 50 / 125m or 62.5 / 125m multi-mode fiber cable, up to 2km.
? 9 / 125m single-mode cable, providing a long distance of 20 / 40 / 60km or longer (varying on SFP module) |
| Speed-Twisted-pair |
10 / 20Mbps for half / full-duplex
100 / 200Mbps for half / full-duplex |
| Speed-Fiber-optic |
200Mbps for full-duplex |
| LED Indicators |
System: One Power LED
TP Port: One Speed; One LNK / ACT
Fiber Port: One Link / Act |
| DIP Switches |
DIP 1: On 3-port switch mode; Off 2-port redundant
DIP 2: On loop back reply enable; off loop back reply disable |
| Standards |
IEEE 802.3, 10Base-T
IEEE 802.3u, 100Base-TX, 100Base-FX
IEEE 802.3x Flow Control |
| Power Consumption |
6.7 watts (maximum) |
| Power Input |
5V / 2A |
| Dimensions (W x D x H) |
97 x 69 x 25 mm |
| Operating Environment |
Operating temperature: 0~50 degrees C
Humidity: 10~90% non-condensing |
| Storage Environment |
Storage temperature: -25~70 degrees C
Humidity: 10~90% non-condensing |
