| 硬件特性 |
| 百兆电口 |
16 10/ 100Base-TX RJ-45 Auto-MDI / MDI-X ports |
| PoE端口 |
8-Port with PoE injector function (Port 1 to port 8) |
| 交换处理方式 |
Store-and-Forward |
| 背板带宽 |
2.38Mpps |
| 吞吐量 |
3.2Gbps |
| 地址表 |
4K entries |
| 共享数据缓冲区 |
2.75Mb embedded memory for packet buffers |
| 流量控制 |
Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| 尺寸(W x D x H) |
440 x 120 x 44 mm (1U height) |
| 净重 |
1.75 kg |
| 电源要求 |
100-240V AC, 50-60 Hz, 1A |
| 功率消耗 |
123 watts / 419.43BTU |
| 温度 |
Operating: 0~50 degrees C
Storage: -40~70 degrees C
|
| 湿度 |
Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
|
| Power over Ethernet |
| PoE标准 |
IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type |
End-Span |
| PoE输出功率 |
Per Port 48V DC, 350mA. Max. 15.4 watts |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE总输出功率 |
110 watts |
| 2层特性 |
| 管理方式 |
Web interface |
| Alert Trap |
SNMP Trap for alarm notification of events |
| 端口设定 |
Port speed duplex mode selection. Flow control disable / enable. Port disable / enable. Port description on each port |
| 带宽控制 |
Yes, 1Mbps / 2Mbps / 4Mbps / 8Mbps / 16Mbps / 32Mbps / 64Mbps |
| 带宽控制 |
Yes, 5% / 10% / 25% / 50% / Disable |
| 端口状态 |
Display each port's detail Ethernet traffic counter information |
| VLAN |
16 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN |
| Port trunking |
Supports 2 groups of 4-Port trunk support, up to 800Mbps bandwidth per trunk |
| 端口镜像 |
Port mirroring allows monitoring of the traffic across any port in real time |
| QoS |
Allows to assign low / high priority on each port
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
|
| MAC地址 / TCP & UDP过滤 |
Yes |
| IGMP Snooping v1 / v2 |
Allows to disable or enable |
| PoE供电控制 |
Allows to disable or enable power provision and assign priority on each PoE port |
| 标准一致性 |
| 认证标准 |
FCC Part 15 Class A, CE |
| 遵循国际标准 |
IEEE 802.3：Ethernet
IEEE 802.3u：Fast Ethernet
IEEE 802.3x：Full-duplex Flow control
IEEE 802.3af：Power over Ethernet
IEEE 802.1Q：VLAN
IEEE 802.1p：QoS
|

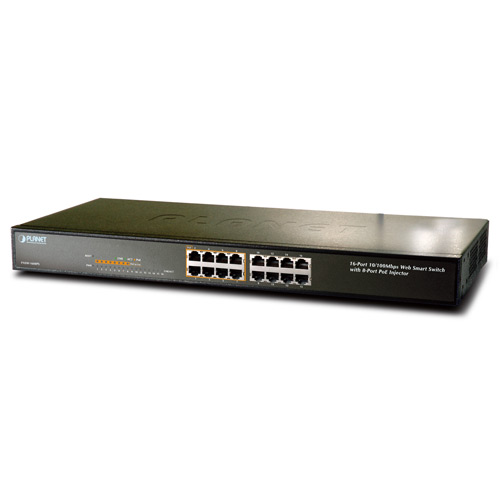

| 以上参数针对FNSW-1608PS硬件V2版本 |
