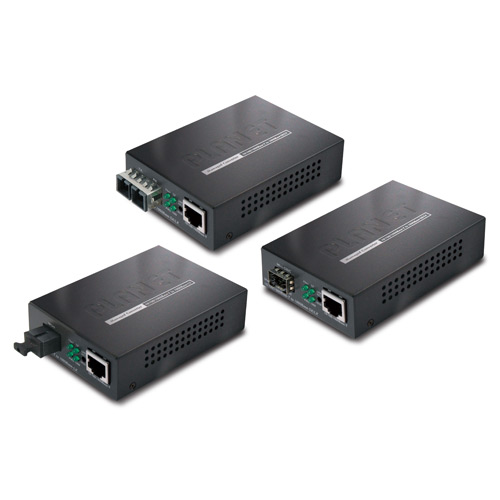

WEB/SNMP/OAM Remotely Managed Gigabit Converter
PLANET GT-90x series is a 10/100/1000Base-T to 1000Base-LX / SX Managed Media Converter developed to meet the advanced demand for further Network applications and equipped with the feature of plug and play. The GT-90x series provides all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and offers highly stable Gigabit fiber performance. It supports conversion between 10/100/1000Base-T and 1000Base-LX / SX network, which includes SC / SFP / WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.
Friendly/Centralized/Simple Web Management Interface
For efficient management, the GT-90x Managed Gigabit Ethernet Media Converter series is equipped with remote Web / SNMP interface. With its built-in Web-based management, PLANET GT-90x series acts as an easy-to-use, platform-independent management and configuration facility. The GT-90x series also supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. Moreover, the TS-1000/802.3ah OAM protocol (operations, administration, and maintenance) supported helps remote device be managed and monitored by the GT-90x.
Enhanced Management Features
The GT-90x series can be programmed for advanced management functions such as IP address configuration, DHCP Client function, port configuration, converter configuration, 802.1Q Tag VLAN, Q-in-Q VLAN, Ingress/Egress bandwidth control, QoS and Layer protocol filter, broadcast storm and bandwidth control, to enhance bandwidth utilization.
Easy Installation
As the GT-90x Managed Gigabit Ethernet Media Converter series fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX / SX, the Gigabit media conversion installation is quite quick and easy simply by utilizing plug and play feature. This GT-90x series can be used as a stand-alone unit or as a slide-in module to PLANET Media Converter Chassis (MC-700, MC-1000 and MC-1500). The media converter chassis can provide DC power to GT-90x series to maintain the fiber-optic network at the central location. | |
Fiber-Optic Networking for ISPs, Enterprises, and Homes

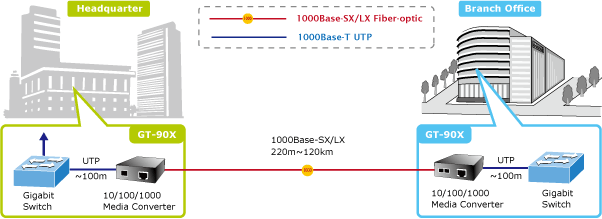

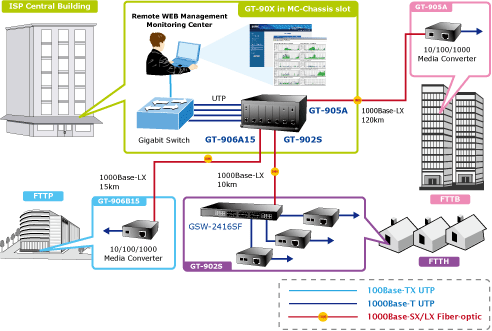

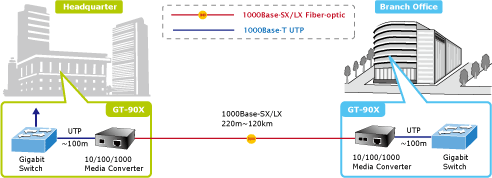

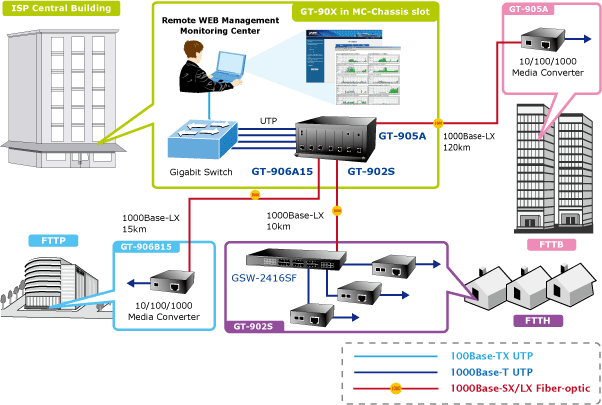

With high performance of data transmission and easy installation, the GT-90x series can build an ISP network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs, and FTTB (Fiber to the Building) for small office network environment from enterprises. The Web Management interface provided at the GT-90x series helps network administrators to easily monitor and set up the converter, the transmission speed and duplex through web browsers. | | | | | |
Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
One-channel media conversion between 10/100/1000Base-T and 1000Base-SX / LX
TP port supports 10/100/1000Base-T auto-negotiation and auto-MDI/MDI-X
1000Base-SX: 50/125?m or 62.5/125?m multi-mode fiber cable, up to 220/550m on GT-902
1000Base-LX: 9/125?m single-mode cable provides long distance for 10km on GT-902S
1000Base-LX WDM interface for up to 15km (single-mode fiber 9?m/125?m) on GT-906A15/B15
1000Base-LX WDM interface for up to 60km (single-mode fiber 9?m/125?m) on GT-906A60/B60
1000Base-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
Compact size for working with PLANET MC family Media Chassis (MC-700/1000R/1500)
Wall-mountable hardware design
Built-in IP-based Web interface for remote management
Layer 2 Management Feature
?Store-and-Forward mechanism
?Built-in Web interface for remote management and setup
?Manual IP address setting / DHCP client for IP address assignment
?SNMP v1 / v2c monitor / private Enterprise MIB
?Event trap and SNMP trap support
?Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port
?Supports Port Status / Ethernet Statistics on both TP and Fiber interface
?Supports Maximum frame size to 16K bytes
?Loop detection / Broadcast / Multicast / Unicast storm control
?Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN
?802.1p Tag Priority / IP address priority / IP DSCP option in Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies
?TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
?16 TCP / UDP Filter groups
?Password setting, IP setting and devices description setting through Planet Smart discovery utility
?Firmware upgrade via remote Web interface
External DC 5V 2A power supply
LED indicators for easy network diagnosing
Reset Button at the front panel for the factory default reset
Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX mini GBIC module | |
硬件规格 |
国际标准 |
IEEE 802.3, 10Base-T
IEEE 802.3u, 100Base-TX
IEEE 802.3ab, 1000Base-T
IEEE 802.3z, 1000Base-SX/LX
|
端口 |
1 x 10/100/1000Base-T port,
1 x 1000Base-SX/LX port
|
电口 |
RJ-45 port (Auto-MDI/MDI-X) Twisted Pair |
光纤接口 |
GT-902 / GT-902S: SC
GT-905A: SFP
GT-906A15 / GT-906B15 / GT-906A60 / GT-906A60: WDM |
波长 |
GT-902: 850nm
GT-902S: 1310nm
GT-905A: N/A
GT-906A15: TX:1310nm / RX:1550nm
GT-906B15: TX:1550nm / RX:1310nm
GT-906A60: TX:1310nm / RX:1550nm
GT-906B60: TX:1550nm / RX:1310nm |
最大发射功率(dBm) |
GT-902: -4 dBm
GT-902S: -3 dBm
GT-905A: N/A
GT-906A15: -3 dBm
GT-906B15: +5 dBm
GT-906A60: -3 dBm
GT-906B60: +4 dBm |
最小发射功率(dBm) |
GT-902: -9.5 dBm
GT-902S: -9.5dBm
GT-905A: N/A
GT-906A15: -9 dBm
GT-906B15: 0 dBm
GT-906A60: -9 dBm
GT-906B60: -1 dBm |
接收灵敏度 |
GT-902: -13.5 dBm
GT-902S: -14.4 dBm
GT-905A: N/A
GT-906A15: -21 dBm
GT-906B15: -25 dBm
GT-906A60: -21 dBm
GT-906B60: -25 dBm |
最大输入功率 |
GT-902: -18 dBm
GT-902S: -20 dBm
GT-905A: N/A
GT-906A15: -3 dBm
GT-906B15: -3 dBm
GT-906A60: -2 dBm
GT-906B60: -2 dBm |
高速双绞线 |
10/20Mbps for Half / Full-Duplex
100/200Mbps for Half / Full Duplex
2000Mbps for Full-Duplex
|
高速光纤 |
2000Mbps for Full-Duplex |
电缆双绞线 |
10Base-T: 2-pair UTP Cat. 3,4,5, up to 100 m
100Base-TX: 2-pair UTP Cat. 5, up to 100 m
1000Base-T: 4-pair STP Cat 5 up to 100m
|
光纤电缆 |
� 50/125?m or 62.5/125?m multi-mode fiber cable, up to 220/550m.
� 9/125?m single-mode cable, provides long distance for 10/15/20/30/40/50/60/70/120km (very on fiber transceiver or SFP module)
|
LED 指示灯 |
� PWR,
� TP LINK/ACT, 1000
� Fiber LINK/ACT
|
功率消耗 |
4 watts/ 13 BTU (maximum) |
电源输入 |
DC 5V / 2A |
尺寸 (W x D x H) |
93 x 70 x 26 mm |
操作环境 |
Temperature: 0~50 degrees C; Humidity: 5~90% non-condensing |
储存环境 |
Temperature: -40~70 degrees C; Humidity: 5~90% non-condensing |
认证 |
FCC Class A, CE Class A |
