Equipped with the parallel printing interfaces, the FPS-3300 makes your printer available to be shared in the most popular network environment.

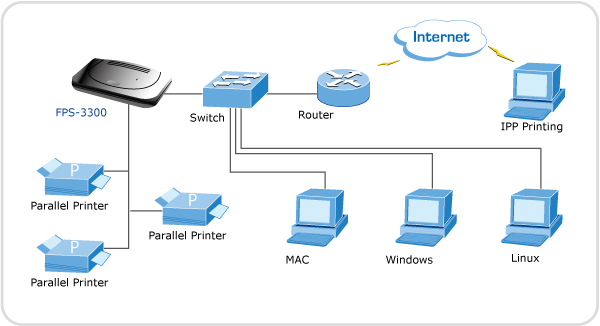

With the embedded web server, the FPS-3300 is configurable through your network PC's web browser. Moreover, PLANET also provides a utility of management for Microsoft Windows systems. With various network printing methods including Windows Peer-to-Peer printing, NetWare and Windows server based queues printing, LPR printing, Internet Printing Protocol (IPP) and AppleTalk for Macintosh, the FPS-3300 can be applied to any network easily.
With auto-MDI/MDI-X function, users do not need to be concerned about the cable type while they connect to different LAN devices. It is capable to detect the signal and to change its transfer/receive order on the cable automatically. Moreover, the FPS-3300 LAN port can auto-sense and adjust the current network speed, thus eliminating the requirements for manually switching.
| |
All users that work with different OSs, such as Windows, Linux, Mac OS and Novell that can print to the printer via the FPS-3300 at the same time.
Secondly, while the FPS-3300 is assigned with a legal IP address, local as well as Internet users can print to the attached printer through Internet with IPP printing function.
| | | |
Supports for most popular NOS
?Supports Windows 98/2000/Me/NT/XP/Server 2003, Linux, Unix, Novell and Mac OS
Auto-Sensing
?Supports 10/100Mbps Auto-Nway, Automatically Negotiates optimal mode, 10/20Mbps, 100/200Mbps
?Ethernet 802.2, Ethernet 802.3, SNAP Auto-Detect
Auto-MDI/MDI-X
?Auto detects the connected cable type while it connects to different LAN devices. It is capable to detect the
?signal and to change its transfer/receive order on the cable automatically
Compatible with popular network utility
?Unix, TCP/IP: LPD, TFTP
?Windows: LPR, PTP driver, IPP, SMB (NetBEUI)
?Apple: Ether Talk Chooser
?Novell: IPX/SPX, TCP/IP (5.x and later)
Easy Management
?Intuitive utility of management supports Windows 98/2000//Me/NT/XP and Server 2003
?Web-Base Management
?HP Web JetAdmin | |
产品 |
标准 |
IEEE 802.3, 10Base-T; IEEE 802.3u, 100Base-TX
|
布线 |
Category 5/5e or above, 2-pair
|
打印机端口 |
3 x Parallel port
|
协议 |
TCP/IP, IPX/SPX, AppleTalk, NetBEUI, Bi-Directional
|
支持NOS |
Windows 95/98/Me/2000/NT/XP/Server 2003, Novell, Linux, Unix, and MAC OS
|
打印方式 |
PTP (Peer-to-Peer), Windows LPR printing, SMB, IPP (Internet Printing Protocol), LaserWriter Chooser (AppleTalk)
|
管理工具 |
PS-Admin (Windows Application), Web-based management (HTTP), HP Web JetAdmin
|
尺寸 (W x D x H) |
214 x 131 x 42.7 mm
|
重量 |
305g
|
电源 |
5V DC, 2A
|
认证 |
FCC / CE
|
技术参数
日期 |
版本 |
描述 |
下载 |
2007-11-19 |
1.0 |
FPS-3300 |
![](/images/icon_pdf.png) |
安装版本
快速安装指南
日期 |
版本 |
描述 |
下载 |
2008-04-16 |
|
Quick Install Guide |
![](/images/icon_pdf.png) |
用户手册
日期 |
版本 |
描述 |
下载 |
2007-12-28 |
|
User's Manual |
![](/images/icon_pdf.png) |
实用工具
日期 |
版本 |
描述 |
下载 |
2007-12-28 |
|
Initial release. |
![](/images/icon_download.png) |
产品证书
日期 |
版本 |
描述 |
下载 |
2008-01-28 |
|
EC Declaration |
![](/images/icon_pdf.png) | |
|
