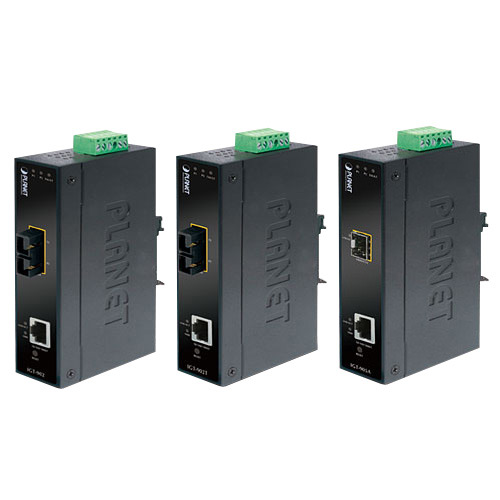

Distance Extension with High Performance and Steady Network Communicating
PLANET IGT-90xT Industrial Managed Gigabit Media Converter series extends communication distance with highly Gigabit performance via fiber optical wire, in which the extension distance could be up to 10km by applying IGT-902TS and IGT-905A (vary on SFP module) or up to 550m with the IGT-902T. The IGT-90xT series is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level Gigabit media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets in sidewalk. Being able to operate under the temperature range from -30 to 75 degrees C, the IGT-90xT series can be placed in almost any difficult environment.
Robust Switching Performance
PLANET IGT-90xT Industrial Managed Media Converter series efficiently converts data between 10/100/1000Base-T and 1000Base-SX / LX network, and offers remote management and monitoring capabilities. The IGT-90xT series provides the flexibility with all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable Gigabit fiber performance. It also delivers the dynamic status report and real-time alarm messages that helps the network administrator to easily monitor and manage the entire industrial networks.
User-friendly Centralized Web Management Interface
For efficient management, the IGT-90xT Industrial Managed Gigabit Ethernet Media Converter series is equipped with remote Web / SNMP (Simple Network Management Protocol) interface. With the built-in Web-based management interface, the IGT-90xT series acts as an easy-to-use, platform-independent management and configuration facility. It also can be managed via any standard-based management software by supporting standard SNMP. Moreover, the IGT-90xT series can manage the remote client devices by the TS-1000/802.3ah OAM protocol (operations, administration, and maintenance).
Enhanced Management Features
The IGT-90xT series can be programmed for advanced management functions such as IP address configuration, DHCP client function, port configuration, converter configuration, 802.1Q Tag VLAN, Q-in-Q VLAN, QoS, OAM control, Layer 2 protocol filter, broadcast storm control and Ingress/Egress bandwidth control to enhance bandwidth utilization. The enhanced management features offered by the IGT-90xT make it ideally suited for mission-critical and real-time control applications in the Industrial Ethernet networks. | |
Transportation Networking

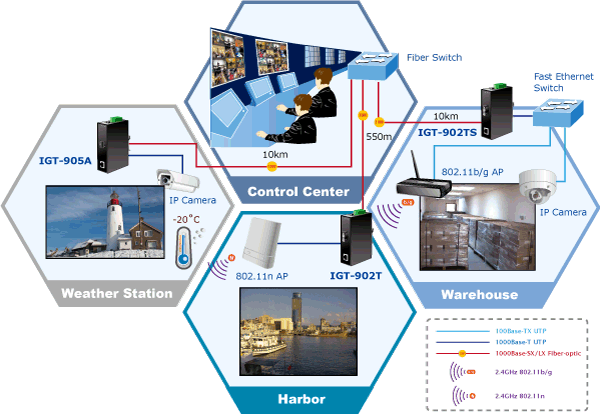

PLANETs managed industrial Gigabit media converter, IGT-90xT series, offers high reliability and security to make sure the continuous industrial operation in harsh environments such as control cabinet of transportation, factory floors or the extremely low or high temperatures environments. In the industrial networking environments, each networked device is required to keep running continuously in the hazardous status. If industrial equipment fails to connect to the network, it might influence the entire operation of industrial systems, thus causing incredible financial loss. With the IGT-90xT managed industrial Gigabit media converter, which complies with all the requirements of industrial applications, customers may enjoy high reliability, fast recovery capability, and safe Ethernet network operation. | | | | Fiber-Optic Networking for ISP, Enterprise, and Home
With high performance of data transmission and easy installation, the IGT-90xT series Industrial Managed Gigabit Ethernet Media Converter can build an ISP network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs, or FTTB (Fiber to the Building) for small office network environment in the enterprises. The Web Management interface of the IGT-90xT series enables network administrators to easily monitor and setup the converter, the transmission speed and duplex through web browsers. | |
Interface
1-Port 10/100/1000Base-T RJ-45 with auto negotiation and auto-MDI/MDI-X function
1-Port 1000Base-SX SC interface, provides long distance up to 220/550m on IGT-902T
1-Port 1000Base-LX SC interface, provides long distance for 10km on IGT-902TS
1 Mini-GBIC slot, provides multi choice of SFP modules on IGT-905A
Industrial Conformance
12V to 48V DC, redundant power
-30 to 75 degrees C operating temperature
IP-30 metal case
Relay alarm for port breakdown
Supports 6KV DC Ethernet ESD protection
Free fall, Shock and Vibration Stability
DIN-rail and wall-mountable hardware design
Layer 2 Features
Store-and-Forward mechanism
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Maximum frame size to 9216 Bytes
Loop detection / Broadcast / Multicast / Unicast storm control
Supports VLANs
?IEEE 802.1Q Tagged based VLAN
?Up to 16 VLANs groups, out of 4K VLAN IDs
?Management VLAN
Quality of Service
Ingress/Egress Bandwidth control on TP / Fiber port
4 priority queues, strict priority and Weighted Round Robin (WRR)
Traffic classification by:
?IEEE 802.1p Class of Service
?IP DSCP priority
?IP Address priority
Management
Built-in IP-based Web interface for remote management
SNMP v1 / v2c and 4 RMON groups, Event trap and SNMP trap support
Manual IP address setting / DHCP client for IP address assignment
TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
16 TCP / UDP Filter groups
Password setting, IP setting and devices description setting through Planet Smart discovery utility
Firmware upgrade via remote Web interface
Reset Button at the front panel for the factory default reset
Display the current operating temperature | |
硬件特性 |
电口 |
1 x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X port |
光口 |
IGT-902T: SC
IGT-902TS: SC
IGT-905A: SFP |
光纤接口类型 |
IGT-902T: Multi-mode
IGT-902TS: Single mode
IGT-905A: Vary on module |
光学波长 |
IGT-902T: 850nm
IGT-902TS: 1310nm
IGT-905A : Vary on module |
发射功率 |
MAX.
IGT-902T: -4 dBm
IGT-902TS: -3 dBm
Min.
IGT-902T: -9.5 dBm
IGT-902TS: -9.5 dBm |
接收敏感度 |
IGT-902T: -13.5 dBm
IGT-902TS: -14.4 dBm |
最大输入功率 |
IGT-902T: -18 dBm
IGT-902TS: -20 dBm |
传输速率 |
Twisted-pair
10/20Mbps for Half / Full-Duplex
100/200Mbps for Half / Full Duplex
2000Mbps for Full-Duplex
Fiber-optic
2000Mbps for Full-Duplex |
电缆 |
Twisted-pair
10Base-T: 2-pair UTP Cat. 3,4,5, up to 100 m
100Base-TX: 2-pair UTP Cat. 5, up to 100 m
1000Base-T: 4-pair STP Cat 5,6 up to 100m
Fiber-optic Cable
� 50/125?m or 62.5/125?m multi-mode fiber cable, up to 220/550m.
� 9/125?m single-mode cable, provides long distance for
?10/15/20/30/40/50/60/70/120km (vary on fiber transceiver or SFP
?module)
|
LED 指示灯 |
� Power: P1, P2, Fault
� TP: LNK/ACT, 1000
� Fiber: LNK/ACT |
电源输入 |
DC 12V to 48V
Redundant power with polarity reverse protection function
|
功率/损耗 |
7.9 Watts/ 27 BTU (maximum) |
尺寸 |
135 x 85 x 32 mm |
重量 |
423g |
安装方式 |
DIN rail kit and wall mount ear |
管理与2层特性 |
管理方式 |
WEB / SNMP v1, v2c |
端口设定 |
Port disable/enable
Auto negotiation 10/100/1000Mbps full and half duplex mode selection.
Flow Control disable / enable. Bandwidth control on each port.
|
VLAN |
IEEE 802.1q Tagged based VLAN , 4K VLAN ID, up to 16 VLAN groups
Q-in-Q VLAN
|
QoS |
Traffic classification based on :
802.1p priority
IP DSCP field in IP Packet
IP Address
|
带宽控制 |
Ingress / Egress bandwidth control
� Rate range: 512kbps to 500Mbps
Storm control
� Broadcast / Multicast / Unknown Unicast packet
|
标准的一致性 |
标准符合性 |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX / FX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-SX / LX Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control |
遵从法规 |
FCC Part 15 Class A, CE |
稳定性测试 |
IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)
|
环境 |
温度 |
Operating: -30~75 degrees C
Storage: -40~85 degrees C
|
湿度 |
Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing) |
