Designed for next generation communications networks by the voice and video over IP experts, PLANET Multipoint Control Unit (MCU) is a smart solution that offers you an easy way to connect, conference, and collaborate any way of communication you need. In the video conferencing performance, PLANET MCU multi-function platform is the most flexible and total solution for deploying IP-centric voice, video and Surveillance communications.

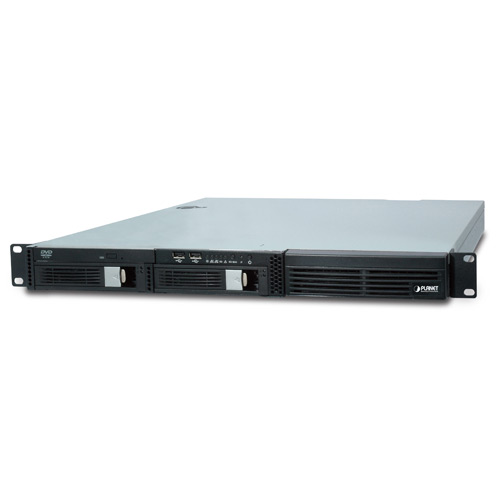

As one of the PLANET MCU series, the MCU-1900 is a powerful IP multimedia conferencing device delivering high quality voice and video with IP surveillance capabilities. The platform is a leading solution for deploying real-time voice, video and surveillance services over IP. Stream your video conference over your intranet or the Internet. The MCU operates with PLANET IP camera to offer viewing at multiple speeds that ensures everyone access the video conferencing and watch the IP cameras without difficulty.
What a way to start a conference with preset configurations of unification, voice, video, and surveillance. The MCU-1900 offers up to 9 videos, 60 audio concurrent calls, and 200 user registrations. It is an ideal integrated IP communication facilitator for the SMB and SOHO markets.
| |

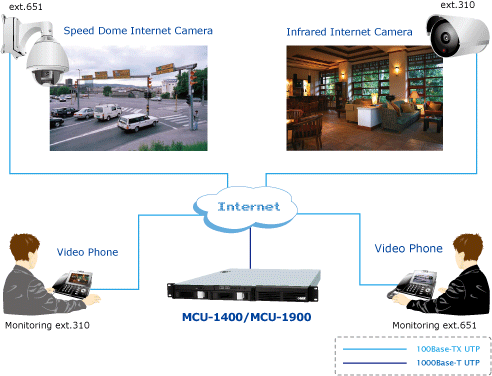

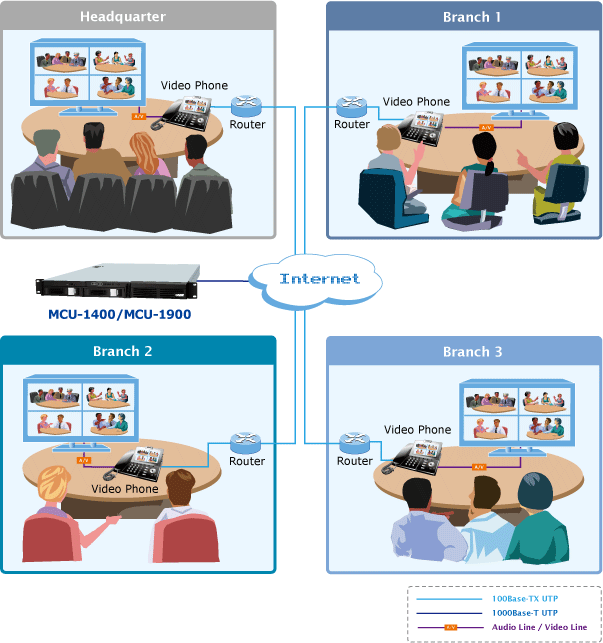

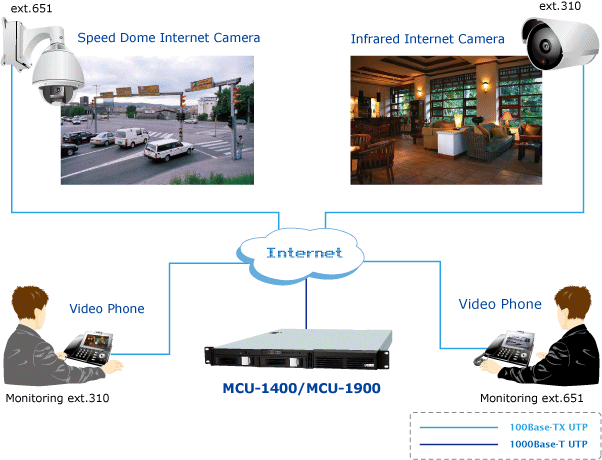

Bring the power of visual communication to any meeting room, auditorium and training facility with the MCU-1900's professional video and audio technology. | | | | With the MCU-1900's powerful video streaming feature, it is convenient to achieve the surveillance network via video phone. | | | |
Multi-codec for H.263 / H.263p / MPEG-4 compression
Supports Video / Voice Conferencing service
Simultaneous Voice calls: 60 concurrent calls
Simultaneous Video calls: 12 concurrent calls
Supports IP-Surveillance Hosting service
Call Detailed Record (CDR)
User Management via Web Browsers
Built-in SIP Proxy Server Following RFC-3261
Asterisk Compatible IP PBX
Recording MCU room's Video / Voice to File
Video MCU screen format : 1:1, 1:4, 1:6, 1:7, 1:8, 1:9
Call Transfer / Call Hold / Call Park
| |
Hardware |
LAN |
2 RJ-45 (10/100/1000Base-TX, Auto-Sensing / Switching) |
Standards and Protocol |
Call Control |
SIP 2.0 (RFC3261) , SDP (RFC 2327), Symmetric RTP |
SIP Registration |
200 registrations |
Voice Concurrent Calls |
60 voice calls |
Video Concurrent Calls |
12 video calls |
Number of Voice Rooms |
9 |
Number of Video Rooms |
3 |
Voice Codec Support |
G.711u, G.723, G.729 |
Video |
Mpeg4, H.263, H.263p |
Voice Processing |
DTMF detection and generation
In-Band and Out-of-Band (RFC 2833), (SIP INFO)
Supports password authentication using MD5 digest
|
PBX Features |
Voicemail Support (VM)
Call Detailed Record (CDR)
User Management via Web Browsers
Web Firmware Upgrade
Backup and Restore Configuration file
Displays Registered User's Status: Unregistered / Registered / Caller / Callee
|
Call Features |
Caller ID
Call Hold
Call Transfer
Call Forward (Always, Busy, No Answer)
Call Pickup
Call Park
Music/Video on Hold
Three-way voice conference with feature phones (VIP-254T series, VIP-155PT/ 255PT/ 351PT/ ICF-1600 and ATA series: VIP-156/ 157, ATA-150/ 150S)
|
MCU Room Features |
MCU Room Configuration
MCU status display on Web Browser
Mute / Kick function
MCU Voice/Video Recording
|
Video MCU Display Division |
1, 4, 6, 7, 8, 9 |
Internet Sharing |
Protocol |
TCP/IP, UDP/RTP/RTCP, HTTP, ICMP, ARP, NAT, DHCP, DNS |
Connection Type |
Static IP |
Management |
HTTP Web Browser |
LED Indications |
System: 1, PWR
LAN: 2, LNK/ACT
System ID: 1
System Alert: 1
|
Hardware Specification |
CPU Processor |
Quad-Core Intel Xeon 2.0GHz |
RAM |
1GB |
Built-in Storage Device |
1 x DVD ROM, 1 x 160GB HDD |
Ethernet Interface |
2 x RJ-45 10/100/1000Base-TX |
Input/Output Interface |
2 x PS2 Mouse/Keyboard, 2 x USB 2.0, 1 x Serial, 1 x VGA |
Form Factor |
1U, 19" Rack Mountable |
EMC/EMI |
CE, FCC Class B |
Environment |
Dimensions (W x D x H) |
428 x 442 x 44.4 mm |
Operating Temperature |
0~40 degrees C, 0~90% humidity |
Power Source |
AC 100~240V, 50-60Hz |
Power Requirement |
300W |
Safety |
UL, CB, BSMI |
EMC/EMI |
CE Class A, FCC Class A, BSMI Class B |
