100/100Mbps Downstream / upstream, high Performance Ethernet over VDSL Solution
PLANET VC-231 is an Ethernet-over-VDSL2 Converter with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The VC-231 supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 50/2Mbps for 1.4km long range connections.
Implementing with Existing Telephone Copper Wires
The VC-231 is also a Long Reach Ethernet (LRE) converter providing one RJ-45 Ethernet port and one RJ-11 phone jack that is for VDSL2 connection. By using the additional Splitter from package of VC-231, the splitter can provide POTS splitter to share the existing phone line with POTS; therefore it is no need of replacing the existing copper wiring. Just plug the VC-231 with additional splitter into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. The VC-231 is ideal to be used as an Ethernet extender to an existing Ethernet network.
Delivering High-Demand Service Connectivity for ISP / Triple Play Devices
The VC-231 provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the VC-231 enables many multi-media services to work on the local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.
Easy & Flexible Installation
The Ethernet-over-VDSL2 Converter comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-231 offers two modes, CPE and CO, for application: CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-231 and a CO mode VC-231 must be setup as one pair of converters to perform the connection.
Providing Superior Upstream and Downstream Transmission Performance
The VC-231 also defines symmetric band plan for the transmission of upstream and downstream signals, the band plan performs higher transmission quality in short range for central side (CO) in symmetric mode. In all, when the VC-231 is in profile 17a operation mode, it provides long distance transmit with Ultra-high performance to the pervasive telephone line network, and when the VC-231 is in 30a operation mode, it gives short distance transmits with upstream and downstream transmission giving wire speed performance.
High Performance VDSL2 Solution
Ethernet Distance Extension

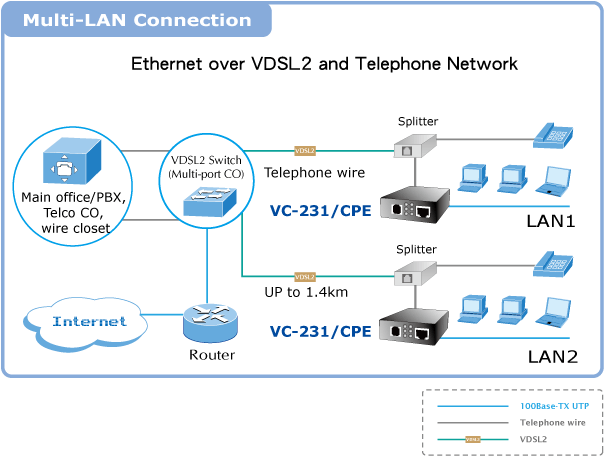

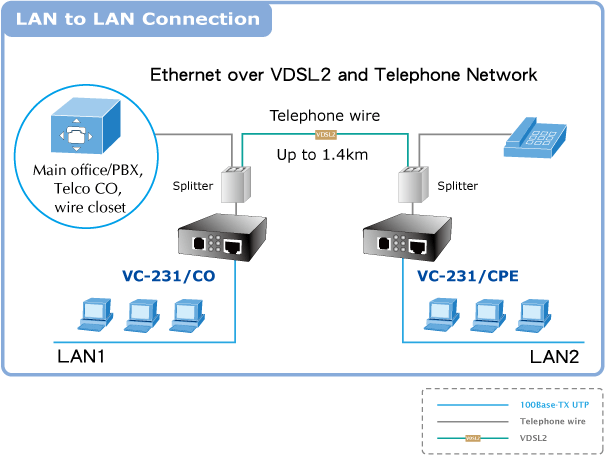

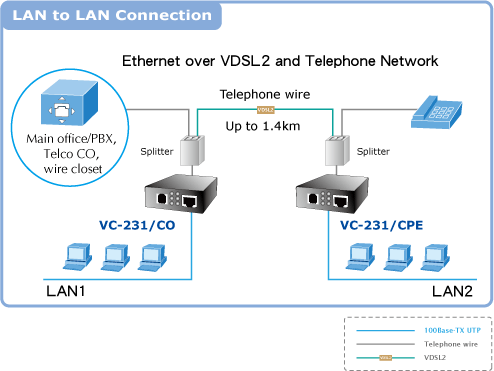

Two VC-231 acting as a standalone pair is good for Ethernet distance extension over existing telephone wires. With just one pair of AWG-24 copper wire, you can easily connect two Ethernet networks together with the data rate of maximum 100/100Mbps. With the additional splitter, the telephone service can still be used while the VC-231 CO/CPE is in operation. The two solutions listed below are typical applications for the Ethernet over VDSL2 Converter.
MTU / MDU / Hospitality Solution
The VC-231 is a perfect solution to quickly providing cost-effective yet high speed network services to multi-unit buildings such as residential buildings (multi-dwelling units), commercial (multi-tenant units) buildings, hotels or hospitals. By utilizing the existing telephony infrastructure, network installation is straightforward and requires no new wiring. With up to 100/100Mbps transmission, Video on Demand, IP telephony and various broadband services can be easily provided.

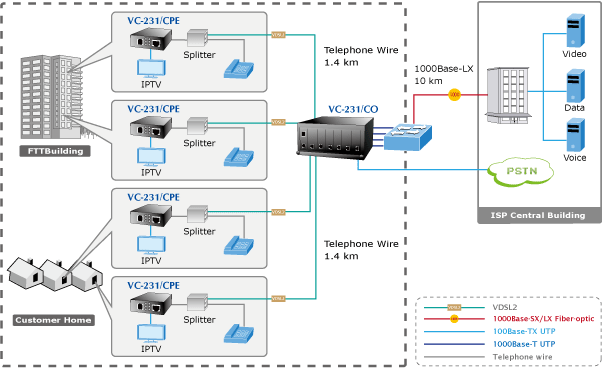

Last Mile of FTTx Deployment
The VC-231 is an ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Node) applications. It supports high bandwidth VDSL2 over existing telephone wires in the last mile from the ISP / Telecom / Service providers fiber node to the buildings and customers' houses. The 10/100Mbps port of the VC-231 can be directly connected to a PC or to Ethernet devices such as Ethernet Switches or Broadband Routers. It is excellent for phone line network built under Internet because every room or house can use the existing phone line to transmit data through the Internet and the whole building can share the Internet to the wider area network at a minimum cost.
Cost-Effective VDSL2 Profile 17a/30a CO / CPE bridge solution
One box design, CO / CPE selectable via DIP Switch
Defines symmetric band plan for the transmission of upstream and downstream signals
Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3x, Flow control Ethernet
?standards
DMT (Discrete Multi-Tone) line coding
Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control
One RJ-11 connector for VDSL port with VDSL connection, additional Splitter for POST connection
Voice and data communication can be shared simultaneously based on the existing telephone wire
One 10/100Mbps RJ-45 port, Auto-Negotiation and Auto-MDI/MDI-X
Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent
VDSL2 stand-alone transceiver for simple bridge modem application
Advantage of minimum installation time (Simply as Plug-and-Play)
Selectable target profile and target SNR margin
Supports extensive LED indicators for network diagnosis
Co-work with PLANET MC family Media Chassis (MC-700 / MC-1500/ MC-1500R / MC-1500R48)
Compact in size, easy installation
Hardware Specifications
Ports
10/100Base-TX??1 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X
VDSL??1 RJ-11, female Phone Jack
PHONE??Additional Splitter for POST connection
DIP Switch & Functionality
4 position DIP switch CO / CPE mode select
Selectable fast and interleaved mode
Selectable target 17a / 30a profiles
Selectable target SNR mode
One Power
3 for RJ-11/VDSL2
2 for per RJ-45 10/100Base-TX port
Cabling
Ethernet
??10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft)
??100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft)
VDSL
??Twisted-pair telephone wires (AWG24 or better) up to 1.4km
