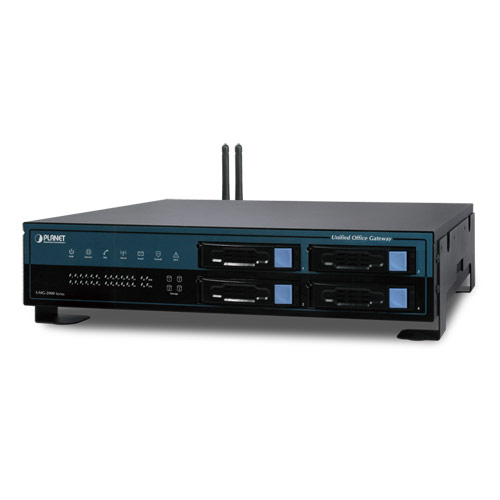

PLANET Unified Office Gateway series provides a total IT solution for the small and medium businesses (SMBs). It is integrated with commonly used office appliance features and provides Internet access, IP PBX, Fax / E-mail server, and data storage in one device. The UMG-2200 is the first model of PLANET Unified Office Gateway series and is equipped with built-in a 24-port Fast Ethernet plus 2-port Gigabit Ethernet switch, wireless access point, and 8-port FXO. It allows you to connect to various Internet and telephone carriers.
Via the 8-port FXO interface, the UMG-2200 provides a feature-rich IP PBX system that supports seamless communications between existing PSTN calls, analog, IP phones and SIP-based endpoints. Branch-to-Branch secured network and call features bring your remote offices together. The UMG-2200 facilitates sharing files safely between multiple office locations through secure channels. For VoIP functions, the users can call any extension from any remote location without paying local or long distance charge. Smart Wizard automatically adjusts your configuration and guides you through initial setup. The administrator can easily manage user accounts with privilege and access control.
In the storage feature, the storage volumes can be created for individual users and groups within the corporate. The UMG-2200 can also as Web and E-mail servers that are able to be set up with one mouse click. It provides schedule automated snapshot and backup tasks to prevent data loss. Besides the above functions, the extensive features include DMZ support, VoIP call control and Call Detail Record (CDR), Least Cost Routing (LCR), Busy Lamp Field (BLF), and Bridged Line Appearance (BLA), configuration backup and restore, secure remote management capabilities and many more.
| | |

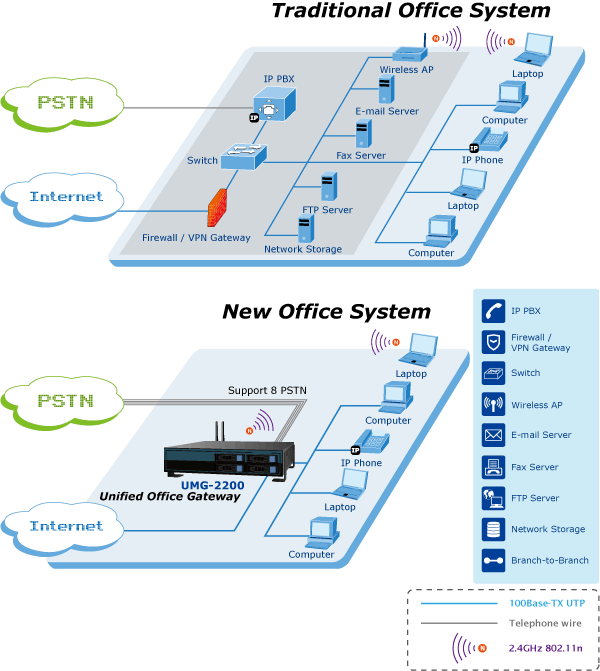

Highly Integrated IT Services
Providing IP PBX / VoIP, Internet Security, E-mail / Fax Server, Switch, Wireless AP, and Network Storage service, the UMG-2200 features single point of management to improve IT service ability.
The UMG-2200 beneficially provides the SMBs with cost of ownership, quick and easy deployment, low noise, space saving and energy conservation for better business environment.

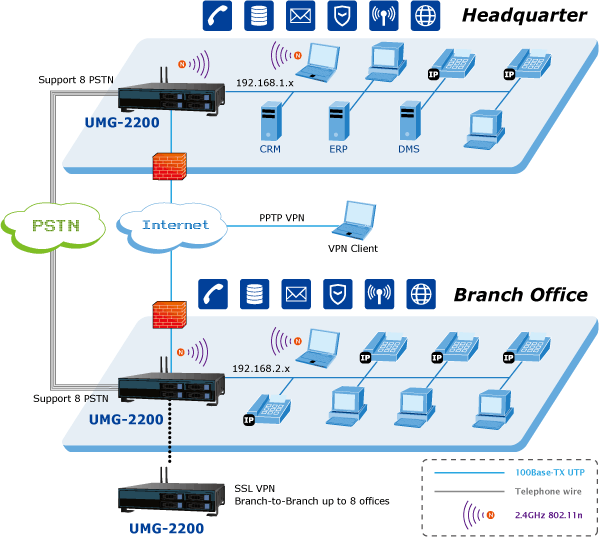

| | | | | | Office Voice and Data Communication
The exchange of business data and voice with high security and superior performance is in great demand. The Unified Office Gateway UMG-2200 meets the requirements. A secure channel based on SSL VPN is built for data synchronization. A private voice switching system helps to avoid local or long distance charges by exchanging voice via a secure Internet tunnel. Additionally, web-based remote management makes it possible to manage all IT resources in your branches without leaving your own office. The UMG-2200 supports Branch-to-Branch voice and data communication up to 8 offices. | | | | | |
IP PBX / VoIP Service
SIP 2.0 (RFC3261)
PSTN Support
Call-Parking, Echo Cancellation
FXO Disconnection Tone Detection
QoS Support
Music on Hold and Upload Music Files for MoH
Telephone Conference, 3-Way Calling
Voicemail to E-mail
Forwards to Voicemail on No-Answer
Supports Call Hold, Call Waiting
Blacklist of Number Patterns
Call Privilege Control, Call Log
450 Minutes Recording Time
Unconditional, Unavailable, Busy Call Forward
Fax Server Support
Multiple SIP Trunk Support
Upload Sound Files for IVR
Least Cost Routing (LCR)
Busy Lamp Field (BLF)
Bridged Line Appearance (BLA)
E-mail Service
Supports POP3, SMTP, IMAP
Secured Socket Layer (SSL)
Junk Mail Filtering
E-mail Storage Quota
E-mail Alias Group Assignment
Mail Attachment Size Restriction
User E-mail Storage Quota
E-mail Log Record Management
Anti-Virus and Anti-Spam
Auto Backup, Auto Reply
E-mail White and Black list Based on Domain
Name, User Name, and E-mail Address
Supports Web Mail
Supports Mail Service via DDNS
Internet Security Service
Static IP, PPPoE, DHCP, PPTP, L2TP
Web Content Filter by Domain and Keyword
Access Control List (ACL)
URL / IM / P2P Blocking
Firewall / NAT
IPSec / PPTP / L2TP Pass-through
DoS Attack Protection (TCP SYN Flood, UDP Flood, ICMP Flood, Ping of Death)
UPnP and DMZ
Site-to-Site SSL VPN
PPTP VPN Remote Access
RIP / Static Route
IP-MAC Binding
Network Storage Service
RAID 0, 5, 10, and JBOD
Up to 4TB Hot-swap Disk Array
Supports User Network Storage Quota
Compatible Windows 2000 / XP / Vista, Mac, Linux
Scheduled Auto Backup, Auto Snapshot
Supports User / Group Privilege ACL
System Management
Single Point of Management
System Logging with E-mail Alert
Fast Recovery with Remote Service
Environment Monitoring
Dynamic Domain Name Services (DDNS)
Multiple Domain Name Support
Multiple Hostname Support
WiFi Service
1 x 802.11b/g/n Wireless Access Point
2 x RP-SMA Detachable Antenna
Security: WEP / WPA / WPA2
SSID
Wireless 802.1x Authentication
24+2G Switch Service
IEEE 802.1d Spanning Tree
IGMP Snooping | | |
| 硬件规格 |
| Case |
2U high Rack or Desk |
| WAN |
1 x RJ-45 (10/100Base-TX, Auto-Negotiation, Auto MDI/MDI-X) |
| LAN |
2 x RJ-45 (10/100/1000Base-T, Auto-Negotiation, Auto MDI/MDI-X)
24 x RJ-45 (10/100Base-TX, Auto-Negotiation, Auto MDI/MDI-X)
|
| 支持SATA |
4-Port SATA Controller (SATA I, SATA II Hard Disk) |
| 硬盘 |
Hot-Swappable SATA Disk (4 x 80GB/160GB/250GB/500GB/1TB) |
| 语音 |
8 x RJ-11 (8 x FXO) |
| 无线 |
1 x 802.11b/g/n Wireless Access Point, 2 x RP-SMA Detachable Antenna |
| USB |
2 x USB2.0 (future feature) |
| LED 指示灯 |
1 x PWR LED
1 x Internet LED
1 x PBX LED
1 x WLAN LED
1 x E-mail LED
1 x Firewall LED
1 x Alert LED
4 x Storage LEDs
1 x BTB LED
1 x FTX LED
26 x LAN LEDs
|
| 软件规格 |
| VoIP |
SIP protocol
- SIP 2.0 (RFC3261,RFC2833)
Registration
- Factory Default: 50 nodes, Max. 250 nodes
Calls
- Max. 50 concurrent calls
Voice Compression Code Technology
- G.711, G.726, G.723.1 (5.3, 6.3kbps), G.729A (8kbps), GSM
Echo Cancellation
- G.165/G.168
Gain Control
- In/Out +/-6db
Voice Processing
- Voice Activated Detection
- DTMF Detection/Generation
- G.165/G.168 Echo Cancellation (ECN)
- Comfort Noise Generation (CNG)
- Gain Control
|
| IP PBX |
- Supportscall hold, call waiting, 3-way call conference with feature phones
- Built-in in-line call transfer
- Unconditional, unavailable, busy call forward, custom time of no answer
- Per-calling-number forward and rejection
- Group-based call pick-up
- Call-parking
- Inter-PBX SIP trunking
- Multi-room meet-me conference
- Auto-attendant
- Voice mail system
- Call privilege grouping
- FXO interface for PSTN Inbound/outbound
- FXO disconnection tone detection
- Caller ID detection
- In-band/RFC2833/SIP-INFO DTMF translation
- Music on hold (MoH), user upload MoH
- Direct line Outbound
- User upload IVR
- Least Cost Routing (LCR)
- Busy Lamp Field (BLF)
- Bridged Line Appearance (BLA)
|
| 语音信箱 |
- User PIN
- 450 minutes for personal record
- E-mail notification
- Personal reception on unavailability
- Reply call or new call in voicemail menu
|
| E-mail |
Protocol
- POP3,IMAP,SMTP, Web mail
Support accounts
- 250 users
Email Security
- Secured Socket Layer (SSL)
Anti-Virus
- ClamAV
Anti-Spam
Junk mail block
Mailbox size Limit
- 200M/500M/1G/2G/No Limit
Attachment
- 2M/5M/10M/20M/50M/No Limit
Block List
- Share/User/Domain security modes
Email Backup
- Auto-Backup
|
| 网络储存 |
RAID
- RAID 0, RAID 0/1, RAID 5, JBOD
Date Sharing
- Windows Network Sharing, NFSv3
|
| 安全 |
Network Security
- DoS attack Prevention
VPN Max. connection
- 100 PPTP VPN tunnels
- 8 Site-to-Site SSL VPN tunnels
VPN pass-through
- IPSec, PPTP, L2TP pass-through
Internet Security
- Domain/Keyword Content Filter, Access Control
- IP-MAC Binding
|
| 其他协议/功能 |
Protocol
- TCP/IP, NAT, DHCP, HTTP, DNS, NTP, HTTPS, CIFS/SMB, NFSv3
LAN
- IEEE 802.1d Spanning Tree
Internet Access
- Static IP, PPPoE, DHCP, PPTP, L2TP
DMZ
UPnP
QoS
DDNS
Multiple host name
|
| 管理 |
- Web based GUI management
- Firmware upgradeable via local
|
