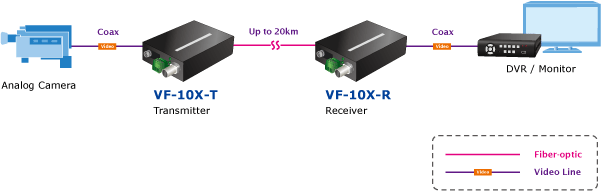

| Video Characteristic |
| Video Channel |
1 channel Bi-direction |
| Signal Mode |
NTSC / PAL / SECAM |
| Video Connector |
BNC |
| Video Input / Output Impedance |
75ohm / unbalanced interface |
| Video Input / Output Voltage |
1.0 Vpp / Typical peak-peak value |
| Video Bandwidth |
6.5MHz |
| Video Digital Bit Width |
8/10 bit |
| Differential Gain(DG) |
<1.3% (Typical Value) |
| Differential Phase(DP) |
<1.3 (Typical Value) |
| SNR Weighted |
63dB (Typical Value) |

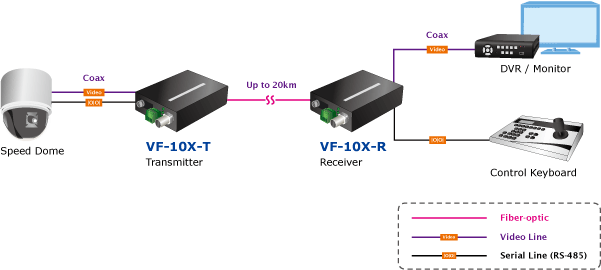

| Data Interface |
| Data Channel |
1 channel |
| Physical Protocol |
RS-485 |
| Operation Mode |
Simplex |
| Data Connector |
3 pin terminal block with screw clamps |
| Data Rate |
DC-115.2Kbps |
| Data Distance |
RS-485: 0-1200m |
| Bit Error Rate (BER) |
< 10ns |
| Optical Interface |
| Optical Connector |
VF-101-KIT?ST
VF-102-KIT?FC
VF-102SC-KIT?SC
VF-102S15-KIT?SC
VF-106-KIT?SC, WDM |
| Distance |
VF-101-KIT?2km for multi-mode
VF-102-KIT?20km for single mode
VF-102SC-KIT?2km for multi-mode
VF-102S15-KIT?15km for single mode
VF-106-KIT?20km for single mode |
| Optical Wavelength |
VF-101-KIT
?VF-101-T?TX & RX: 1310nm
?VF-101-R?TX & RX: 1310nm
VF-102-KIT
?VF-102-T?TX: 1310nm, RX: 1550nm
?VF-102-R?TX: 1550nm, RX: 1330nm
VF-102SC-KIT
?VF-102SC-T?TX & RX: 1310nm
?VF-102SC-R?TX & RX: 1310nm
?
VF-102S15-KIT
?VF-102S15-T?TX & RX: 1310nm
?VF-102S15-R?TX & RX: 1310nm
VF-106-KIT
?VF-106-T?TX: 1310nm, RX: 1550nm
?VF-106-R?TX: 1550nm, RX: 1330nm |
| Launch Power (dBm) |
VF-101-KIT
?Max. : -14, Min. : -19
VF-102-KIT
?Max. : -7, Min. : -14
VF-102SC-KIT
?Max. : -14, Min. : -19
VF-102S15-KIT
?Max. : -7, Min. : -20
VF-106-KIT
?Max. : -8, Min. : -14 |
| Receive Sensitivity (dBm) |
VF-101-KIT?-34.5
VF-102-KIT?-32
VF-102SC-KIT?-34.5
VF-102S15-KIT?-28
VF-106-KIT?-31 |
| Max. Input Power (dBm) |
VF-101-KIT?-14
VF-102-KIT?0
VF-102SC-KIT?-14
VF-102S15-KIT?-8
VF-106-KIT?0 |
| Cable |
50/125?m or 62.5/125?m multi-mode cable
9/125?m single mode cable |

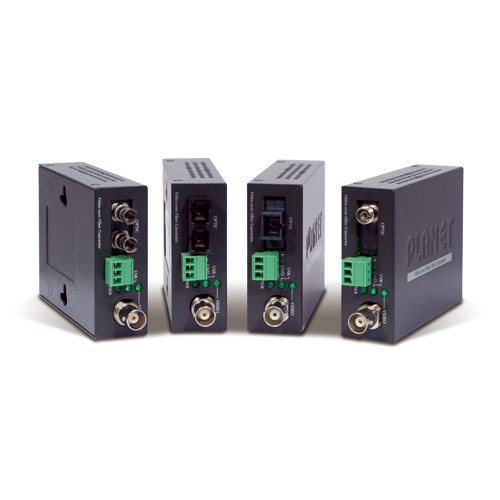

| Hardware Specifications |
| LED Indicators |
One Power
One for Video
?- Green, Link
One for Fiber Optic
?- Green, Link |
| Dimensions (W x D x H) |
94 x 70 x 26 mm |
| Weight |
215g |
| Power Requirements |
5V / 2A |
| Power Consumption |
4.8 watts (maximum) |
| Mechanical |
Metal |
| Installation |
Wall-mountable, DIN-rail (with optional kit), chassis installation |

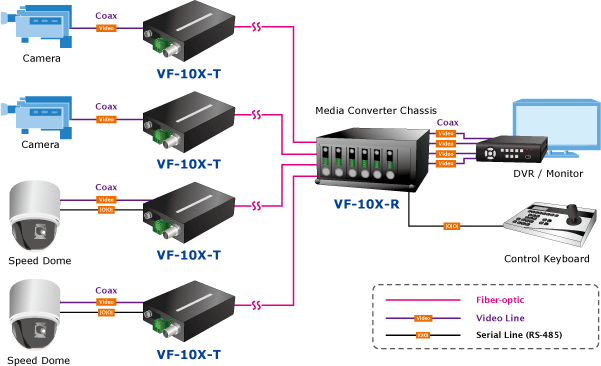

| Compatible Converter Chassis |
MC-700 / MC-1500 / MC-1500R |
| Standards Conformance |
| Regulation Compliance |
FCC Part 15 Class A, CE |
| Environment |
| Operating |
Temperature:?-10 ~ 60 degrees C
Relative Humidity:?5 ~ 95% (non-condensing) |
| Storage |
Temperature:?-10 ~ 70 degrees C
Relative Humidity:?5 ~ 95% (non-condensing) |
