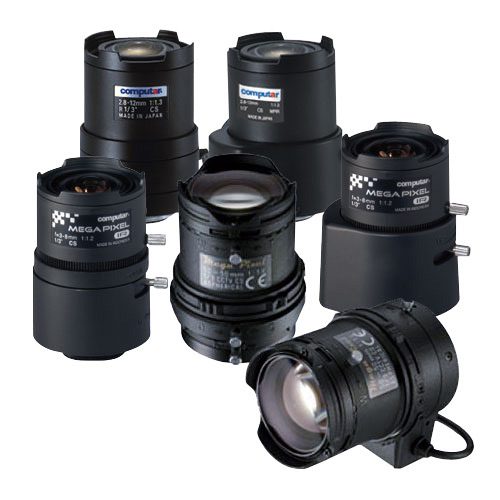

Planet Varifocal Lenses

Optional lenses for special surveillance requirements

概述
应用场景
功能特性
产品规格

TG4Z2813FCS-MPIR
Description	Mega-pixel lens
Image Format	1/3"
Mount	CS Mount
Focal Length	2.8 ~ 12 mm
Aperture	F1.3
Angle of View	H?102.2 - 23.7 degrees V?74.2 - 17.8 degrees
Min. Object Distance	0.3m
Iris	Auto-Iris (DC drive)
Zoom	Manual
Focus	Manual
Weight	71g
Dimensions (L x D x ?)	56 x 48 x 37.5 mm
Supported Camera	ICA-HM120
T4Z2816CS-IR
Description	Day and Night lens
Image Format	1/3"
Mount	CS Mount
Focal Length	2.8 ~ 12 mm
Aperture	F1.6
Angle of View	H?102.2 - 23.7 degrees V?74.2 - 17.8 degrees
Min. Object Distance	0.3m
Iris	Manual
Zoom	Manual
Focus	Manual
Weight	64g
Dimension (L x ?)	56 x 40.7 mm
Supported Camera	ICA-HM120
TG3Z0312FCS-MPIR
Description	HD mega-pixel lens
Image Format	1/3"
Mount	CS Mount
Focal Length	3 ~ 8 mm
Aperture	F1.2
Angle of View	H?90.7 - 35.2 degrees V?67.3 - 26.5 degrees
Min. Object Distance	0.3m
Iris	Auto-Iris (DC drive)
Zoom	Manual
Focus	Manual
Weight	61g
Dimension (L x D x ?)	55 x 48.2 x 37 mm
Supported Camera	ICA-HM125 ICA-HM126/R
T3Z0312CS-MPIR
Description	HD mega-pixel lens
Image Format	1/3"
Mount	CS Mount
Focal Length	3 ~ 8 mm
Aperture	F1.2
Angle of View	H?90.7 - 35.2 degrees V?67.3 - 26.5 degrees
Min. Object Distance	0.3m
Iris	Manual
Zoom	Manual
Focus	Manual
Weight	54.5g
Dimension (L x ?)	55 x 40 mm
Supported Camera	ICA-HM125 ICA-HM126/R
M13VM550
Description	Mega-pixel lens
Image Format	1/3"
Mount	CS Mount
Focal Length	5 ~ 50 mm
Aperture	F1.4
Angle of View	H?53.8 - 40.3 degrees V?5.5 - 4.2 degrees
Min. Object Distance	1m
Iris	Manual
Zoom	Manual
Focus	Manual
Weight	64g
Dimension (L x ?)	60.2 x 4 6 mm
Supported Camera	ICA-HM125 ICA-HM126/R
M13VG550
Description	Mega-pixel lens
Image Format	1/3"
Mount	CS Mount
Focal Length	5 ~ 50 mm
Aperture	F1.4
Angle of View	H?53.8 - 40.3 degrees V?5.5 - 4.2 degrees
Min. Object Distance	1m
Iris	Auto-Iris (DC drive)
Zoom	Manual
Focus	Manual
Weight	77g
Dimension (L x ?)	60.2 x 46 mm
Supported Camera	ICA-HM125 ICA-HM126/R

订购信息
M13VG550	1/3" 5-50mm F1.8 Varifocal, Megapixel, DC Auto-iris (CS Mount) Day/Night IR
M13VM550	1/3" 3-8mm F1.8 Varifocal, Megapixel, Manual Iris (CS Mount) Day/Night IR
T3Z0312CS-MPIR	1/3" 3-8mm F1.2 Varifocal, HD Megapixel, Manual Iris (CS Mount) Day/Night IR
T4Z2813CS-IR	1/3" 2.8-12mm f1.3 Varifocal, Manual Iris (CS Mount) Day/Night IR
TG3Z0312FCS-MPIR	1/3" 3-8mm F1.2 Varifocal, HD Megapixel, DC Auto-iris (CS Mount) Day/Night IR
TG4Z2813FCS-MPIR	1/3" 2.8-12mm f1.3 Varifocal, Megapixel, DC Auto Iris (CS Mount) Day/Night IR
