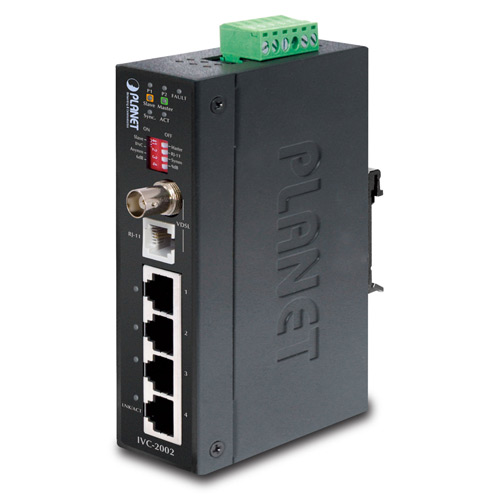

IVC-2002

4-Port 10/100Base-TX + 1-Port BNC / RJ-11工业级以太网延伸器

概述
应用场景
功能特性
产品规格
下载
相关产品

Ideal integration of Industrial Ethernet Extender

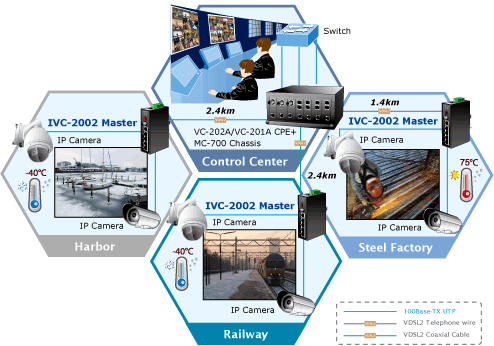

To fulfill the market demand, PLANET has released one amazing product named IVC-2002. The IVC-2002 is positioned as an Industrial Ethernet Extender. It has a switching architecture with 4 RJ-45 10/100Mbps Ethernet ports and one asymmetric or symmetric Ethernet over VDSL port � the VDSL port can be RJ-11 or BNC connector. Customers can use either BNC or RJ-11 for their network deployment and it offers the absolutely fastest data transmission speed over existing coaxial cable and telephone wire without the need of rewiring. Furthermore, the IVC-2002 is also compatible with PLANET VC-201A and VC-202A. Without spending extra cost, users can easily re-deploy a new local Internet in the apartment, hotel, campus and hospitality environment by applying the IVC-2002 on the original network structure.

Environmentally Hardened Design for Industrial Networks
The IVC-2002 provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments like plant floors or in curb side traffic control cabinets. The Industrial Ethernet Extender can operate in wide temperature range of -40 to 75 degrees C, so it can be placed in almost any location. The IVC-2002 is packaged in a compact, IP-30 metal case that allows either DIN or panel mounting for efficient use of cabinet space. The Extender provides an integrated power supply with a wide range of voltages (12 ~ 48V DC) for worldwide operability or for dual-redundant, reversible polarity, 12 ~ 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Efficient Usage, Cost Effectiveness and Great Performance
The Ethernet over VDSL2 combines the Ethernet and VDSL technology to transmit the Ethernet format data by using VDSL signaling over the existing coaxial cable and telephone wire. Therefore, it is ideal for deploying network by using the existing coaxial cable and telephone wire to transmit data to the Internet at a minimum cost. The IVC-2002 can be adjusted to Master or Slave mode via a DIP switch. When the IVC-2002 (RJ-11) is connected with the other IVC-2002 device, the performance will be up to 99/63Mbps for asymmetric data rate within 200m and up to 28/2Mbps for asymmetric data rate at 1.4km. The IVC-2002 (BNC) performance is up to 99/65Mbps for asymmetric data rate within 200m and up to 31/4Mbps for asymmetric data rate at 2.4km. This capability is ideal for use as an Ethernet extender for your existing Ethernet network.

硬件特性
端口	� 10/100Base-TX: 4 RJ-45, auto negotiation and auto-MDI / MDI-X � Coaxial: 1 BNC, female connector � Phone-Line: 1 RJ-11, female connector
DIP 开关	4 position DIP switch
功能	� Master / Slave mode select � Selectable BNC and RJ-11 mode � Selectable target Band Plan � Selectable target SNR mode
编码方式	�DMT (Discrete Multi-Tone) line coding ?- ITU-T G.997.1 ?- ITU-T G.993.1 ?- ITU-T G.993.2 (Profile 17a Support)
LED指示灯	� System: ?P1 (Green) ?P2 (Green) Fault (Green) � VDSL2: ?Master (Green) ?Slave (Green) ?ACT (Green) ?Sync. (Green) � 10/100Mbps port: ?LNK/ACT (Green)
线缆类型	� Ethernet : ?10Base-T: 2-pair UTP Cat.3, 4 and 5 up to 100m (328ft) ?100Base-TX: 2-pair UTP Cat.5, 5e and 6 up to 100m (328ft) � Coaxial Cable: 50ohm, RG58A / U, RG58C / U, RG58 / U or ?equivalent; 75ohm, RG-6 (Distance up to 2.4km) � Twisted-pair telephone wires (AWG24 or better) up to 1.4km
传输性能	RJ-11 (Phone-Line) Asymmetric: 200m -> 99/63Mbps 400m -> 91/48Mbps 600m -> 71/32Mbps 800m -> 53/18Mbps 1000m -> 38/8Mbps 1200m -> 33/5Mbps 1400m -> 28/2Mbps Symmetric: 200m -> 91/99Mbps 400m -> 74/79Mbps 600m -> 54/51Mbps 800m -> 38/34Mbps 1000m -> 27/21Mbps 1200m -> 24/15Mbps 1400m -> 21/10Mbps BNC (Coaxial Cable) Asymmetric: 200m -> 100/65Mbps 200m -> 99/65Mbps 400m -> 99/64Mbps 600m -> 97/59Mbps 800m -> 94/51Mbps 1000m -> 84/45Mbps 1200m -> 73/37Mbps 1400m -> 61/28Mbps 1600m -> 54/20Mbps 1800m -> 48/13Mbps 2000m -> 38/9Mbps 2200m -> 35/6Mbps 2400m -> 31/4Mbps Symmetric: 200m -> 95/99Mbps 400m -> 92/97Mbps 600m -> 81/82Mbps 800m -> 71/70Mbps 1000m -> 60/57Mbps 1200m -> 50/44Mbps 1400m -> 42/33Mbps 1600m -> 37/27Mbps 1800m -> 29/22Mbps 2000m -> 23/21Mbps 2200m -> 19/17Mbps 2400m -> 19/13Mbps
尺寸	135mm x 87.8mm x 32mm (H x W x D)
重量	495g
电源要求	12V DC ~ 48V DC
功率/损耗	5.64 watts / 19BTU
工作温度	-40~75 degrees C
工作湿度	5~90%, relative humidity, non-condensing
存储温度	-40~85 degrees C
存储湿度	5~90%, relative humidity, non-condensing
标准一致性
遵从法规	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32(Free Fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration)
国际标准	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x full duplex pause frame flow control ITU-T ?- G.993.1 ?- G.997.1 ?- G.993.2 (Profile 17a Support)

订购信息
IVC-2002	4-Port 10/100Base-TX + 1-Port BNC / RJ-11 Industrial Ethernet Extender (-40 ~ 75 degrees C)
