WNRT-617

150Mbps 802.11n Wireless Broadband Router

概述

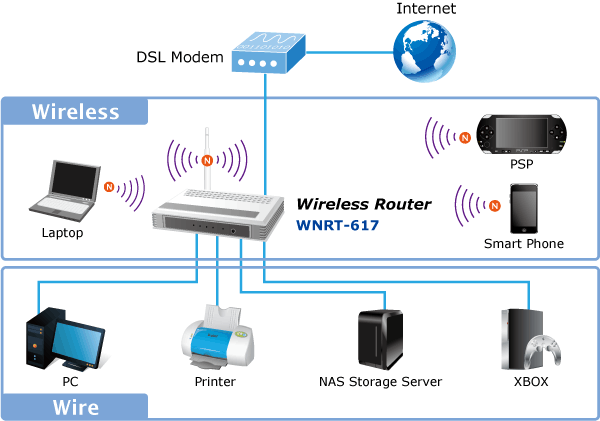

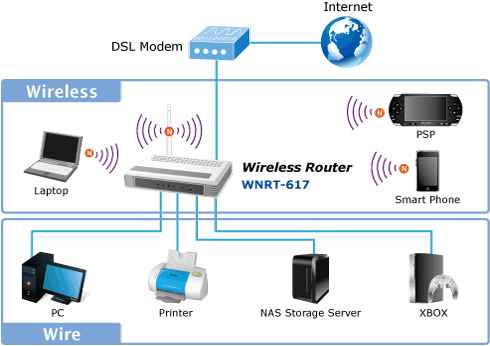

应用场景
功能特性
产品规格
下载

High Speed 802.11n Wireless
The WNRT-617 features latest IEEE 802.11n radio with 1T1R antenna technology to provide improved wireless speed and coverage with up to 150Mbps upload and download data rate. The incredible wireless speed makes it ideal for handling multiple video stream, on-line music, VoIP and data streams at the same time stably and smoothly. It is also backward compliant with 802.11g and 802.11b standards; thus it is no need to change the existing network for maintaining connectivity. Just connect to the WNRT-617, you can immediately enjoy the high-speed wireless sharing.

Wireless Coverage Plus !
With one 5dBi hi-gain antenna attached, the WNRT-617 provides stronger signal quality and more excellent performance than normal wireless routers especially when in the long range or poor environment condition for further wireless coverage range. Besides essential wireless sharing for Wi-Fi clients, the WNRT-617 provides WDS (Wireless Distribution System) bridge mode to facilitate wireless network deployments and range expanding. It provides more flexibility for users while establishing wireless network.

Wide Range of Wireless Security Support
To secure the wireless communication, the WNRT-617 supports not only 64/128/152-Bits WEP, but also up-to-date encryptions including WPA/WPA2-PSK with TKIP/AES, wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection.

Easy Secure Wireless Connection
In order to simplify security settings for home and SOHO network, the WNRT-617 supports Wi-Fi Protected Setup (WPS) with configuration in PBC and PIN type. By just push the WPS button or key in the PIN code, the secure connection between the WNRT-617 and wireless clients will be built immediately, which offers a convenient and fast method for users.

Advanced Firewall Security
To protect user�s network from external attacks, the WNRT-617 provides dual firewall mechanisms � NAT and SPI. The NAT function allows multiple users to access to Internet via a single legal IP, and the SPI (Stateful Packet Inspection) firewall protects intranet PCs from unauthorized access and prevents possible DoS attacks from the Internet. In the aspect of firewall, the WNRT-617 supplies flexible IP-Based Access Control, schedulable MAC access control and URL block to prevent possible hackers attack.

Full Functioned Router
As a robust broadband router, the WNRT-617 supports various Internet connection protocols and auto detect function to establish Internet service when the ISPs use different connection type. It also provides Virtual Server and DMZ functions for LAN PC to act as an application server and offer certain service to the clients in the LAN. The WNRT-617 allows users to setup trigger ports of special applications and utilize Internet services smoothly. Moreover, IP-Based bandwidth control optimizes time-critical applications such as VoIP or video conference not to be interrupted or lagged due to P2P files download by other clients in the same network environment.

硬件特性

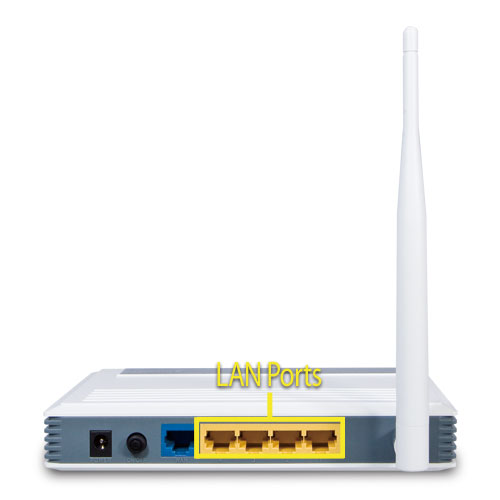

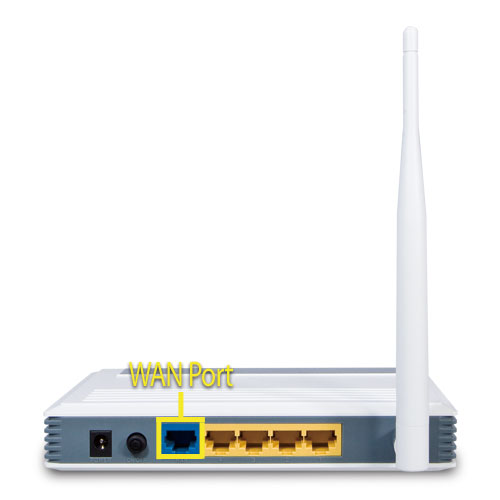

端口	WAN Port: 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port LAN Port: 4 x 10/100Mbps Auto MDI/MDI-X RJ45 port
天线	Gain: 1 x Fixed 5dBi antenna Orientation: Omni-directiona

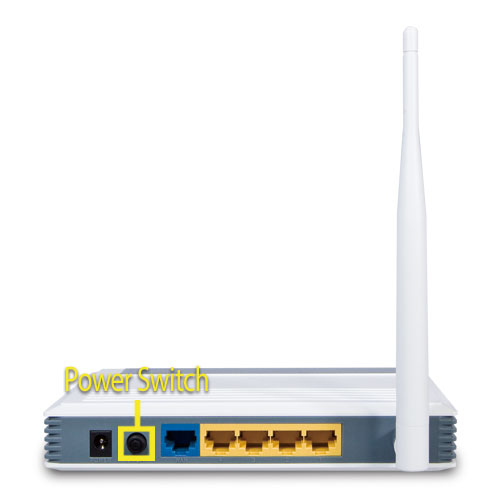

电源开关	Power On/Off button at rear panel
WPS / Reset 按钮	WPS / Reset button at front panel Push the button at least 5 seconds to reset to factory default setting
LED指示灯	PWR, SYS, WLAN, LAN x 4, WAN, WPS with green light
材质	Plastic
尺寸	174 x 110 x 23 mm
重量	250g
电源要求	9V DC, 0.6A
无线端口特性
标准	Compliance with IEEE 802.11b/g/n
频段	2.4~2.4835GHz
扩展频率	DSSS
调制类型	DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
数据传输速率	802.11n:135/121.5/108/81/54/40.5/27/13.5Mbps ???? 130/117/104/78/52/39/26/13Mbps ???? 65/58.5/52/39/26/19.5/13/6.5Mbps (Dynamic) 802.11g:54/48/36/24/18/12/9/6Mbps (Dynamic) 802.11b:11/5.5/2/1Mbps (Dynamic)
传输距离	Indoor up to 100m Outdoor up to 300m (It is limited to the environment)
信道	America/ FCC: 2.414~2.462GHz (11 Channels) Europe/ ETSI: 2.412~2.472GHz (13 Channels) Japan/ TELEC: 2.412~2.484GHz (14 Channels)
RF功率	?20 dBm (EIRP)
接收灵敏度	130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
管理功能
扩展频率	AP, WDS (AP+Bridge), WISP Client Router(*)
加密安全	WEP (64/128/152-bit) encryption security WPA-PSK / WPA2-PSK (TKIP/AES) WPA / WPA2 (TKIP/AES) WPA / WPA2 enterprise mode (802.1x authentication)
无线安全	Provides wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Supports WPS (WI-FI Protected Setup ) Enable / Disable SSID Broadcast
无线高级功能	Supports 802.11e WMM (Wi-Fi Multimedia) Supports Wireless Roaming (Mobility Feature) Provides Wireless Statistics
路由功能
WAN端口设定	Shares data and Internet access for users by supporting the following protocols: ??- PPPoE ??- Dynamic IP ??- Static IP ??- Telstra Big Pond ??- PPTP / Russia PPTP ??- L2TP / Russia L2TP
防火墙功能	NAT firewall with SPI (Stateful Packet Inspection) NAT with ALG (Application Layer Gateway) Built-in NAT server supporting Virtual Server, and DMZ Built-in firewall with IP address filtering, Domain Name filtering, and MAC address filtering Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection
路由协议	Static Routing
VPN 穿透	PPTP, L2TP, IPSec
LAN端口	Built-in DHCP server supporting static IP address distributing Supports UPnP, Dynamic DNS Supports Flow Statistics IP & MAC Binding IP / Protocol-Based Bandwidth Control Session Number: Max. 5210
系统管理	Web-Based (HTTP) management interface Remote management SNTP time synchronize Easy firmware upgrade System Log supports auto mail and save to local host
系统兼容性	Windows 7 (32-bit/64-bit) Windows Vista (32-bit/64-bit) Windows XP Mac OSX 10.4 and higher
标准一致性
IEEE 标准	IEEE 802.11n (1T1R, up to 150Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control
其他协议与标准	CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
环境
温度	Operating: 0 ~ 40 degree C Storage: -40 ~ 70 degree C
湿度	Operating: 10 ~ 90% (Non-Condensing) Storage: 5 ~ 90% (Non-Condensing)
(*) 功能特性

订购信息
WNRT-617	150Mpbs 802.11n Wireless Broadband Router
