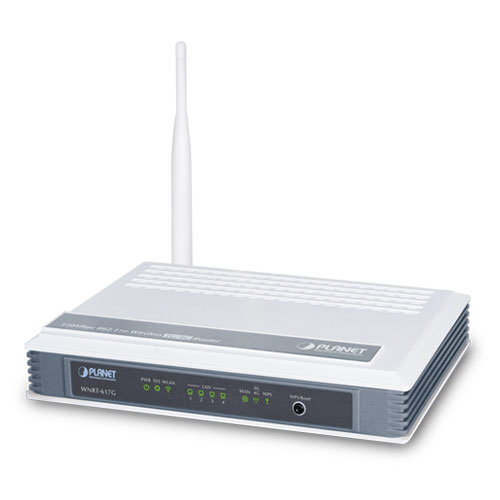

WNRT-617G

150Mbps 802.11n Wireless 3G/4G Router

概述
应用场景
功能特性
产品规格
下载
相关产品

3G/4G Broadband Sharing

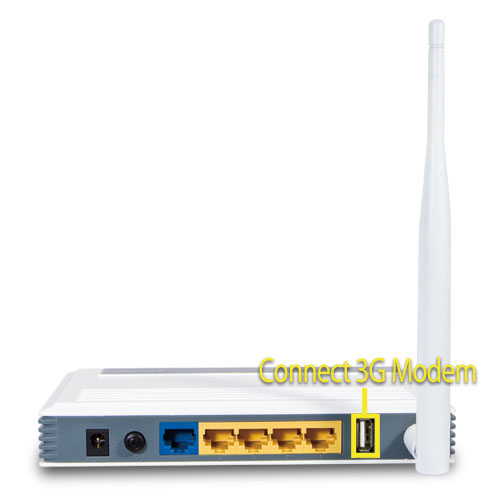

To provide super-fast and cost-effective wireless solution for home and SOHO users, PLANET upgrades the current wireless 3G router �WNRT-617G� to 4G LTE. With the 4G LTE, users can immediately experience 25X Internet download speed than that of the earlier 3G mobile network. You just need to attach the 4G LTE USB modem card to the USB port of the WNRT-617G and enjoy real-time HD video streaming, on-line gaming and other Internet activities. The 4G LTE mobile connection is also backward compatible with 3G UMTS / HSPA / EVDO mobile network.

Network Failover Makes You Stay Online

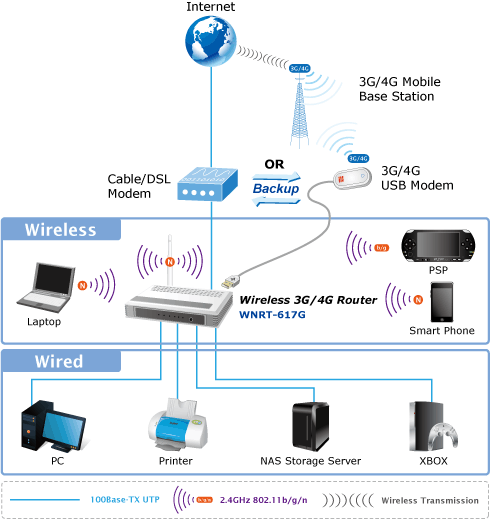

The WNRT-617G has 3G/4G and WAN connection failover characteristics, which can automatically hand over to the redundant stable WAN connection to keep users always online without missing any fascinating moments. The WNRT-617G provides a more flexible and easier way for users to create an instant wireless network sharing service via 3G/4G modem whenever at Home, Hotspot or in public places like transportation, outdoor event, etc.

Wireless Coverage Plus !
With one 5dBi high-gain antenna attached, the WNRT-617G provides stronger signal quality and more excellent performance than normal wireless routers especially when in the long range or poor environment condition for further wireless coverage range. With the detachable RP-SMA connector design, the WNRT-617G allows users to manually upgrade higher gain antenna for greater wireless distances and coverage range across home and building. Besides essential wireless sharing for Wi-Fi clients, the WNRT-617G provides WDS (Wireless Distribution System) bridge mode to facilitate wireless network deployments and range expansion. It provides more flexibility for users while establishing wireless network.

Wide-ranging Wireless Security Support
To secure the wireless communication, the WNRT-617G supports not only 64/128/152-Bit WEP, but also up-to-date encryptions including WPA-PSK / WPA2-PSK with TKIP/AES, wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection.

Easily-secure Wireless Connection

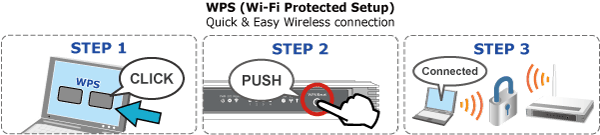

In order to simplify security settings for home and SOHO network, the WNRT-617G supports Wi-Fi Protected Setup (WPS), which has two connections: PBC and PIN. By just pressing the WPS button or keying in the PIN code, the secure connection between the WNRT-617G and wireless clients will be built immediately, offering a convenient and fast method for users.

Advanced Firewall Security
To protect user�s network from external attacks, the WNRT-617G provides dual firewall mechanisms � NAT and SPI. The NAT function allows multiple users to have access to Internet via a single legal IP, and the SPI (Stateful Packet Inspection) firewall protects intranet PCs from unauthorized access and prevents possible DoS attacks from the Internet. As to firewall, the WNRT-617G provides flexible IP-based access control, schedulable MAC access control and URL block to prevent possible hacker attack.

Full-functioned Router
As a robust broadband router, the WNRT-617G supports various Internet connection protocols and auto detect function to establish Internet service when the ISPs use different connection types. It also provides Virtual Server and DMZ functions for LAN PC to act as an application server and offer certain service to the clients in the LAN. The WNRT-617G allows users to set up trigger ports of special applications and utilize Internet services smoothly. Moreover, IP-based ingress and egress bandwidth control optimizes time-critical applications such as VoIP or video conference not to be interrupted or lagged due to P2P file downloaded by other clients in the same network environment.

Easy to Set Up
Users can easily configure the wireless router according to the Quick Setup wizard on the web configuration page. Just click the wizard and set up step by step. You can easily get on the wireless network and enjoy high-speed Internet transmission in your home or office.

硬件特性

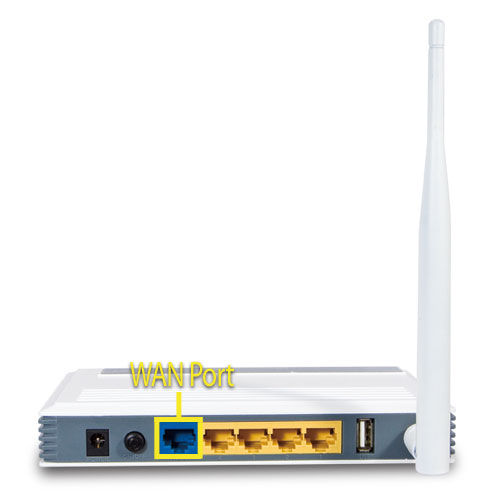

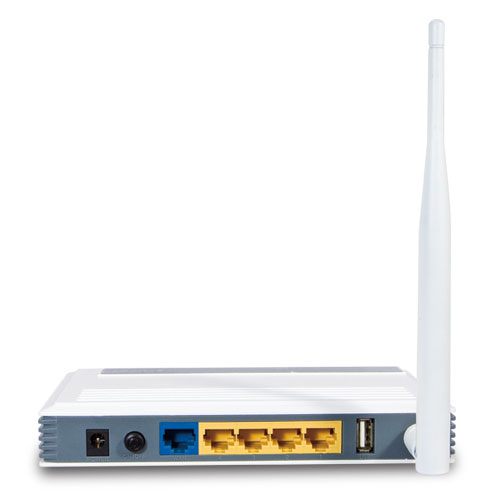

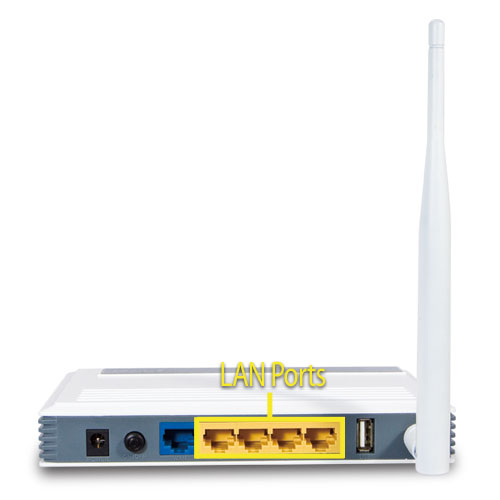

端口	WAN port: 1 x 10/100Mbps auto MDI/MDI-X RJ45 port LAN port: 4 x 10/100Mbps auto MDI/MDI-X RJ45 ports USB port: 1 x USB 2.0 port
天线	Gain: ?- 1 x Detachable RP-SMA Connector ?- 1 x 5dBi SMA antenna included in the package Orientation: Omni-directional
电源开关	Power On/Off button on rear panel
WPS / Reset 按钮	WPS / Reset button on front panel Press the button for least 5 seconds to reset to factory default setting
LED指示灯	PWR, SYS, WLAN, LAN x 4, WAN, 3G/4G, WPS with green light
材质	Plastic
尺寸	174 x 110 x 23 mm
重量	200g
电源要求	9V DC, 0.85A
无线端口特性
标准	Compliant with IEEE 802.11b/g/n
频段	2.4~2.4835GHz
调制类型	DSSS
调制类型	DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
数据传输速率	802.11n: 135/121.5/108/81/54/40.5/27/13.5Mbps ??? ? 130/117/104/78/52/39/26/13Mbps ??? ? 65/58.5/52/39/26/19.5/13/6.5Mbps (Dynamic) 802.11g: 54/48/36/24/18/12/9/6Mbps (Dynamic) 802.11b: 11/5.5/2/1Mbps (Dynamic)
传输距离	Indoor up to 100m Outdoor up to 300m (It is limited to the environment)
信道	America/ FCC: 2.414~2.462GHz (11 Channels) Europe/ ETSI: 2.412~2.472GHz (13 Channels) Japan/ TELEC: 2.412~2.484GHz (14 Channels)
RF功率	?20 dBm (EIRP)
接收灵敏度	130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
软件特性
无线工作模式	AP, WDS (AP+Bridge)
加密安全	WEP (64/128/152-bit) encryption security WPA-PSK / WPA2-PSK (TKIP/AES) WPA / WPA2 (TKIP/AES) WPA / WPA2 enterprise mode (802.1x authentication)
无线安全	Provides wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Supports WPS (WI-FI Protected Setup ) Enable / Disable SSID Broadcast
高级无线功能	Supports WMM (Wi-Fi multimedia): 802.11e Wireless QoS Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other Supports Wireless Roaming (mobility feature) Provides Wireless Statistics
路由功能
WAN端口设定	Shares data and Internet access for users by supporting the following protocols: ? PPPoE / Russia PPPoE ? Dynamic IP ? Static IP ? Telstra Big Pond ? PPTP / Russia PPTP ? L2TP / Russia L2TP
防火墙	NAT firewall with SPI (Stateful Packet Inspection) NAT with ALG (Application Layer Gateway) Built-in NAT server supporting Virtual Server, and DMZ Built-in firewall with IP address filtering, Domain Name filtering, and MAC address filtering Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filtering and DoS protection
路由协议	Static Routing
VPN 穿透	PPTP, L2TP, IPSec
LAN端口	Built-in DHCP server supporting static IP address distribution Supports UPnP, Dynamic DNS Supports Flow Statistics IP & MAC Binding IP / Protocol-based Bandwidth Control Session Number: Max. 5210
系统管理	Web-based (HTTP) management interface Remote management SNTP time synchronize Easy firmware upgrade System Log supports auto mail and saves to local host
标准一致性
IEEE 标准	IEEE 802.11n (1T1R, up to 150Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control
其他协议与标准	CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
环境
温度	Operating: 0 ~ 40 degrees C Storage: -40 ~ 70 degrees C
湿度	Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 90% (non-condensing)

订购信息
WNRT-617G	150Mbps 802.11n Wireless 3G/4G Router
