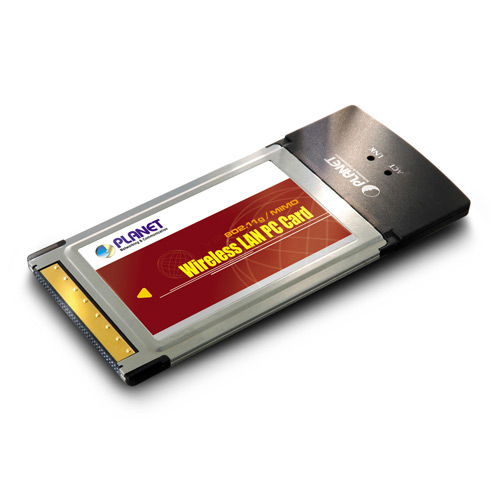

802.11g Wireless MIMO PC Card

With MIMO technology enhanced, the WML-3565 enables you to connect to wireless networks at farther distances than before. The WML-3565 has three built-in antennas: two for signal reception and one for high power signal transmission. Not only the connection distance is enhanced, but also the "dead spots" in the network will be reduced. For WLAN security issues, the WML-3565 supports 64/128-bit WEP / WPA and WPA2 data encryptions that protect your wireless network from eavesdropping.

In order to meet the multimedia data bandwidth requirement, IEEE 802.11e Quality of Service (QoS) (The Wi-Fi Alliance defined WMM as a profile of the IEEE 802.11e) extensions for 802.11 networks will help to define the priorities of the data traffics by the data categories to provide enhanced multimedia support. The WML-3565 supports the advanced technology for sure.

The WML-3565 supports higher data throughput than the IEEE 802.11g standard (up to 54Mbps). It supports specific ways to increase the data transfer rate at a time; compress the data and decrease the waiting time to send the next data to the Routers or APs. This feature is called Turbo Mode. When the card is connecting to the Routers or APs with the proprietary feature, the wireless network will be more effective.

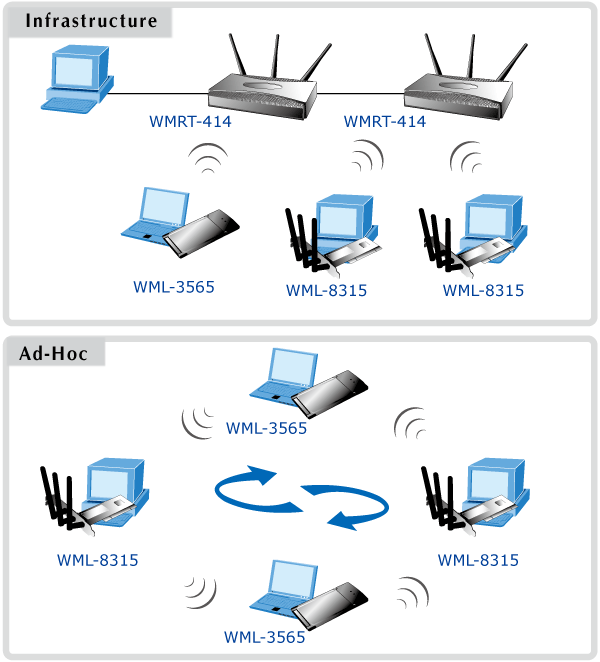

Infrastructure
For some environments with limitations on running Ethernet cables around, simply install the WML-3565 on your desktop or laptop, and users thus can get connected to the wired Ethernet through a wireless access point to access the network resources within the coverage of wireless signals. The installation of multiple access points to enlarge the coverage of wireless signals and can ensure seamless network access for mobile users.

Ad-Hoc
Need connecting several desktop PC or notebooks wirelessly? Configuring all the wireless adapters to Ad-Hoc mode without wireless access point is the easiest and costly way to meet this demand.

� Works with both IEEE 802.11b and IEEE 802.11g products
� Farther coverage, less dead spaces and higher throughput with MIMO technology
� Supports Turbo Mode to enhance the data transfer speed within the specific wireless
?network (the connected AP must support Turbo mode as well)
� Supports WMM (WiFi Multi-Media) function to meet the multi-media data bandwidth
?requirement (the connected AP and the application must support WMM as well)
� Supports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x), WPA2 (AES with IEEE
?802.1x) functions for high level of security
� Supports CCX 2.0 (Cisco Compatible Extensions) for the radio monitoring and fast
?roaming
� Automatic fallback increases data security and reliability
� Supports the most popular operating system: Windows 98SE/Me/2000/XP and Server
?2003
� Supports 32-bit CardBus interface

产品
端口	Complaint with 32bit CardBus standard
标准一致性	Compliant with 802.11b / 802.11g
数据传输速率	11b: 1 / 2 / 5.5 / 11Mbps (auto sensing) 11g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54Mbps (auto sensing)
操作模式	Infrastructure Mode, Ad-Hoc Mode
安全	64/128-bit WEP Data Encryption, WPA (TKIP with IEEE 802.1x), WPA2 (AES with IEEE 802.1x)
RF调制	11g: OFDM with BPSK, QPSK, 16-QAM, 64QAM 11b: BPSK, QPSK, CCK
介质访问协议	CSMA / CA
输出功率	18dB +/- 2dBm
LED指示灯	ACT, LNK
操作系统	Windows 98 / Me / 2000 / XP and Server 2003
温度	Operating: 0 ~ 55 Degree C Storage: -20 ~ 70 Degree C
操作湿度	Operating: 10% to 90% Non-Condensing Storage: 5% to 95% Non-Condensing
尺寸	114 x 54 x 5 mm
重量	40g
认证	FCC, CE
