IGSW-24040T

Industrial 24-Port 10/100/1000Mbps with 4-Port Shared SFP 千兆管理型交换机

概述
应用场景
功能特性
产品规格
下载

Environmentally Hardened Design for Industrial Networks
PLANET IGSW-24040T is an environmentally hardened Industrial Managed Ethernet Switch with high Port-density, Gigabit Fiber link capability and 19� rack-mountable design. It is specifically designed to operate stably in electrically harsh and the toughest environment under extended wide operating temperature range. The IGSW-24040T is equipped with advanced management functions and provides 24 10/100/1000Base-T copper ports and 4 shared 1000Base-S/LX SFP slots delivered in a rugged strong case. It is capable of providing non-blocking switch fabric and wire-speed throughput as high as 48Gbps in the temperature range from -40 to 75 degrees C without any packet loss and CRC error. It greatly simplifies the tasks of upgrading the industrial network and building automation LAN for catering to increasing bandwidth demands such as IP video surveillance. The IGSW-24040T is the most reliable choice for highly-managed and Fiber Ethernet application in Industrial network.

??? Extended Operating Temperature:From -40 to 75 degrees C
??? Robust Industrial Protection:IP30 metal case and 19� rack-mountable design
??? Ethernet Protection:6KV DC ESD protection
??? Power Redundant:1+2 RPS design, supports one 100~240V AC and dual 36~72V DC power input
??? Redundant Ethernet Network:STP, RSTP and MSTP to greatly improve redundant data backup and guarantee network resilience
??? Flexible Fiber uplink capability:Compatible with 1000Base-SX/LX and 100Base-FX SFP transceiver

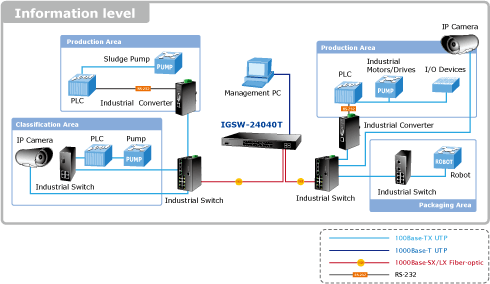

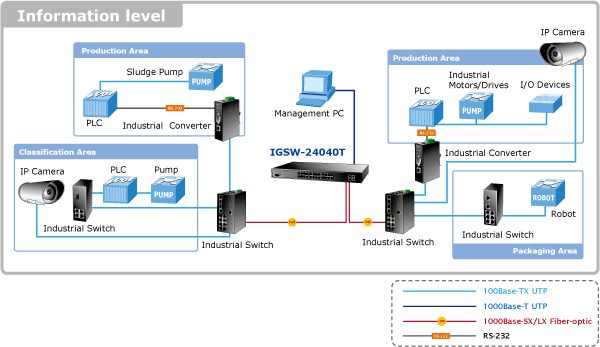

Layer 2 / Layer 4 Full-functioned Managed Switch for Building Automation Networking
The IGSW-24040T Industrial Managed Ethernet Switch is perfect for applications in the factory data centers and distributions. It provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and secure management features to protect customer�s industrial network connectivity with reliable switching recovery capability that is suitable for implementing fault tolerant and mesh network architectures.

Cost-effective IPv6 Managed Gigabit Switch Solution for Industrial Ethernet
The current IPv4 network infrastructure is not capable enough to provide IP address to each single user / client. The situation forces the ISP to build the IPv6 (Internet Protocol version 6) network infrastructure speedily. The IGSW-24040T is the ideal solution to fulfill the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 management functions and can work with the original network structure. With easy and friendly management interfaces and plenty of management functions included, the IGSW-24040T Managed Switch is the best choice for you to build the IPv6 FTTx edge service and for Industrial applications to connect with IPv6 network.

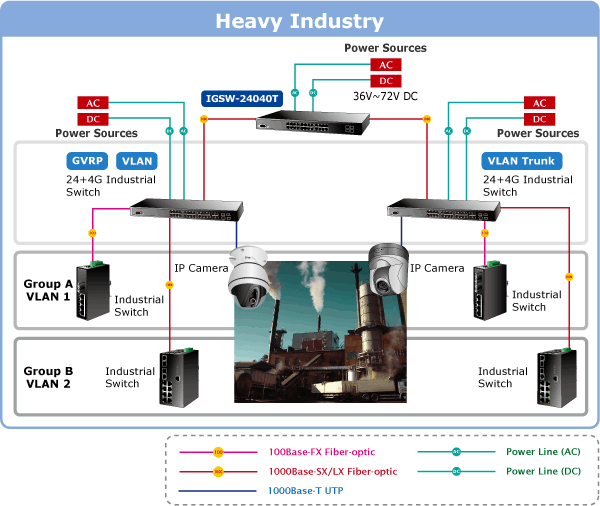

Dual Redundant Power to Ensure Continuous Operation
The IGSW-24040T particularly supports both AC and DC redundant power supplies to ensure reliable and continuous operation in Industrial Network. Generally, a regular industrial switch may have two DC power supplies for redundancy; the IGSW-24040T provides one more power -- alternating current (AC) -- for stronger redundant application besides providing redundant DC power.

The IGSW-24040T is equipped with one 100~240V AC power supply unit and one additional DC 36~72V power supply unit for redundant power supply installation. The redundant power systems are provided to enhance the reliability with either 100~240V AC power or DC 36~72V power supply unit and specifically designed to fulfill the demands of high tech facilities in handling the highest power integrity. In addition, with the 36~72V DC power supply implemented, the IGSW-24040T can be perfectly applied as the telecom level device which requires constant stable operation in the harsh electronic room.

Powerful Security.
The Industrial Managed Giagbit Switch offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection mechanisms also comprise port-based 802.1x and MAC-based user and device authentication. The port-security is effective in limiting the number of client pass-throughs so that the network administrators can now construct highly secured corporate networks with time and effort considerably less than before.

Physical Port
?� 24-Port 10/100/1000Base-T Gigabit Ethernet RJ-45
?� 4 100/1000Base-SX/LX SFP slots, shared with Port-21 to Port-24
?� RS-232 DB9 console interface for Switch basic management and setup

Layer 2 Features
?� Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
?� High performance of Store-and-Forward architecture, broadcast storm control and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
?� Storm Control support
??- Broadcast / Multicast / Unknown-Unicast
?� Supports VLAN
??- IEEE 802.1Q Tagged VLAN
??- Up to 255 VLAN groups, out of 4094 VLAN IDs
??- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
??- Private VLAN Edge (PVE)
??- Voice VLAN
?� Supports Spanning Tree Protocol
??- STP, IEEE 802.1D Spanning Tree Protocol
??- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
??- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
??- BPDU Guard
?� Supports Link Aggregation
??- 802.3ad Link Aggregation Control Protocol (LACP)
??- Cisco ether-channel (Static Trunk)
??- Maximum 12 trunk groups, up to 16 ports per trunk group
??- Up to 16Gbps bandwidth (duplex mode)
?� Provides Port Mirror (many-to-1)
?� Port Mirroring to monitor the incoming or outgoing traffic on a particular port

Quality of Service
?� Ingress Shaper and Egress Rate Limit per port bandwidth control
?� 4 priority queues on all switch ports
?� Traffic classification
??- IEEE 802.1p CoS
??- TOS / DSCP / IP Precedence of IPv4/IPv6 packets
??- IP TCP/UDP port number
??- Typical network application
?� Strict priority and Weighted Round Robin (WRR) CoS policies
?� Supports QoS and In/Out bandwidth control on each port
?� Traffic-policing policies on the switch port
?� QoS Control List Wizard makes QoS creation and configuration easier and more quickly
?� DSCP remarking

Multicast
?� Supports IGMP Snooping v1, v2 and v3
?� IGMP Snooping port filtering
?� Querier mode support
?� Multicast VLAN Registration (MVR) support

Security
?� IEEE 802.1x Port-based / MAC-based network access authentication
?� Built-in RADIUS client to co-operate with the RADIUS servers
?� TACACS+ login users access authentication
?� RADIUS / TACACS+ users access authentication
?� IP-based Access Control List (ACL)
?� MAC-Based Access Control List
?� Source MAC / IP address binding
?� DHCP Snooping to filter un-trusted DHCP messages
?� Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
?� IP Source Guard prevents IP spoofing attacks
?� Auto DoS rule to defend DoS attack
?� IP address access management to prevent unauthorized intruder

Management
?� Switch Management Interfaces
??- Console / Telnet Command Line Interface
??- Web switch management
??- SNMP v1, v2c, and v3 switch management
??- SSH / SSL secure access
?� Four RMON groups (history, statistics, alarms, and events)
?� IPv6 IP Address / NTP / DNS management
?� Built-in Trivial File Transfer Protocol (TFTP) client
?� BOOTP and DHCP for IP address assignment
?� Firmware upload / download via HTTP / TFTP
?� DHCP Relay and Option 82
?� User Privilege levels control
?� NTP (Network Time Protocol)
?� Link Layer Discovery Protocol (LLDP) Protocol
?� Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
?� Reset button for system reboot or reset to factory default
?� PLANET Smart Discovery Utility for deploy management
?� ICMPv6
?� Digital Input / Digital Output
?� Fault Alarm
?� SMTP / Syslog / SNMP Trap remote alarm
?� System Log

Redundant Power System
?� 100~240V AC / 36~ 72V DC Dual power redundant
?� Active-active redundant power failure protection
?� Backup of catastrophic power failure on one supply
?� Fault tolerance and resilience

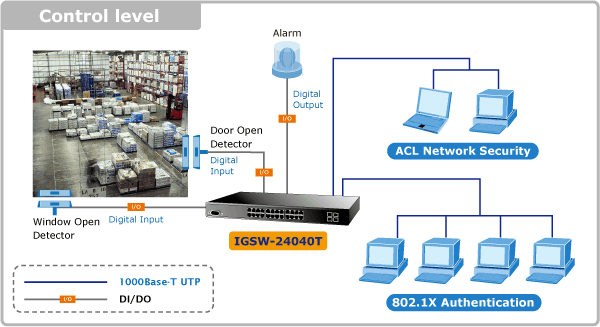

Digital Input / Digital Output
?� 2 Digital Input (DI)
?� 2 Digital Output (DO)
?� Integrates sensors into auto alarm system
?� Transfers alarm to IP network via email and SNNP trap

硬件特性
电口	24 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
光口	4 1000Base-SX/LX/BX SFP interfaces, shared with Port 21 to Port 24 Compatible with 100Base-FX SFP
Console端口	1 x RS-232 DB9 serial port (115200, 8, N, 1)
处理方式	Store-and-Forward
背板带宽	48Gbps / non-blocking
吞吐量	35.7Mpps
MAC地址表	8K entries, automatic source address learning and ageing
共享数据缓冲区	1392 kilobytes
流量控制	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
巨型帧	10Kbytes
重置按钮	< 5 seconds: System reboot > 10 seconds: Factory Default
尺寸	440 x 200 x 44.5 mm, 1U high / 19�
重量	2.96kg
LED指示灯	Power, Fault, Link/Act and speed per Gigabit port
功率/损耗	Max. 30 watts / 102 BTU (AC)
电源要求-AC	AC 100~240V, 50/60Hz 0.75A
电源要求-DC	36V DC @ 0.75A, Range: 36V ~ 72V DC
ESD保护	6KV DC
DI/DO	2 Digital Input (DI) ?Level 0: -24~2.1V (� 0.1V) ?Level 1: 2.1~24V (� 0.1V) ?Input Load Current: 10mA max. 2 Digital Output (DO): Open collector to 24VDC, 100mA max. load
2层特性
管理方式	Console, Telnet, Web Browser, SNMPv1, v2c and v3
安全管理	SSH, SSL, SNMP v3
端口设定	Port disable / enable Auto negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable / enable Bandwidth control on each port Power saving mode control
端口状态	Display each port�s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
VLAN	802.1Q Tagged based VLAN Port-based VLAN Q-in-Q Private VLAN Edge (PVE) Up to 256 VLAN groups, out of 4094 VLAN IDs
端口中继	IEEE 802.3ad LACP / Static Trunk Supports 12 groups of 16-Port trunk
QoS	Traffic classification based, Strict priority and WRR 4-level priority for switching ?- Port Number ?- 802.1p priority ?- 802.1Q VLAN tag DSCP/TOS field in IP Packet Policy-Based QoS
IGMP Snooping	IGMP (v1/v2) Snooping, up to 255 multicast Groups IGMP Querier mode support
访问控制列表（ACL）	IP-based ACL / MAC-based ACL Up to 256 entries
SNMP MIBs	RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2819 RMON MIB (Group 1) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC3411 SNMP-Frameworks-MIB IEEE802.1X PAE LLDP MAU-MIB
标准一致性
遵从法规	FCC Part 15 Class A, CE
Safety	UL, cUL
标准一致性	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad Port trunk with LACP IEEE 802.1D Spanning tree protocol IEEE 802.1w Rapid spanning tree protocol IEEE 802.1s Multiple spanning tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2
Stability	IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
环境
工作	Temperature:-40 ~ 75 degrees C (DC power) ??????��-20 ~ 60 degrees C (AC power) Relative Humidity:5 ~ 95% (non-condensing)
存储	Temperature:-40 ~ 85 degrees C Relative Humidity:5 ~ 95% (non-condensing)

订购信息
IGSW-24040T	Industrial 24-Port 10/100/1000Mbps with 4-Port Shared SFP Managed Gigabit Switch
