WNRT-300

150Mbps 802.11n Wireless Portable AP/Router

概述
应用场景
功能特性
产品规格
下载
相关产品

Multiple Wireless Network Technologies for Greater Access
PLANET Wireless Portable Broadband Router, the WNRT-300 features 802.11n radio with 1T1R antenna technology compliant with 802.11b/g/n standards. Compared with general wireless routers, the WNRT-300 offers more powerful and flexible capability for business demands to access Internet with true mobility and range extension of wireless network.

More Flexibility and Mobility

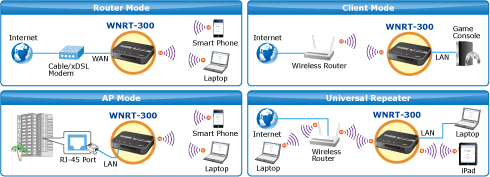

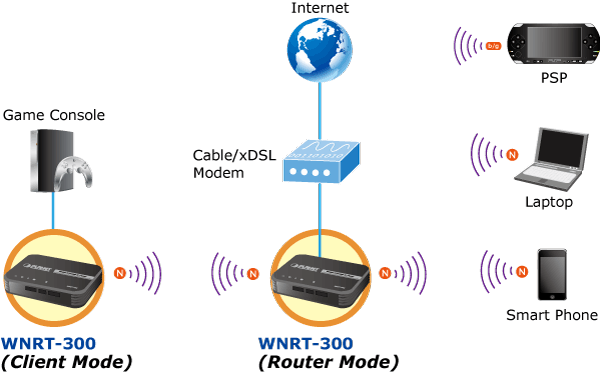

With the tiny-sized and stylish design, the WNRT-300 is easy to carry for the true mobility. It can operate in various environments with the hardware switch modes including AP, Router, and Client, which help to immediately set up a wireless network without software configuration. The portable design and operation flexibility make the WNRT-300 suitable for travelling, moving and outdoor applications.

Built-in High Capacity Battery
The WNRT-300 has one built-in rechargeable Li-ion battery and its power is supplied through mini USB interface. The power can be directly charged via the computer's USB port, thus increasing the convenience even when there is no power outlet available.

One-touch Secure Wireless Connection

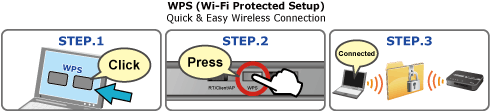

In order to simplify security settings for home and SOHO network, the WNRT-300 supports Wi-Fi Protected Setup (WPS) with configuration in PBC and PIN type. Just push the WPS button or key in the PIN code and the secure connection between the WNRT-300 and the wireless clients can be built immediately, which offers users a convenient and fast method to construct a secure wireless network.

Wide Range of Wireless Security Support
To secure the wireless communication, the WNRT-300 supports most up-to-date encryptions including WPA/WPA2-PSK with TKIP/AES. Made to fulfill enterprise and various applications demand, the WNRT-300 enhances security and management features such as multiple SSID and IEEE 802.1Q VLAN support. It can create up to 5 virtual standalone AP with 5 different SSID according to individual security levels and encryption scheme of various wireless devices. Even more, the VLAN support allows multiple SSID to access Internal VLAN topology.

Advanced Firewall Security
In the Router mode, the WNRT-300 supports NAT functions and allows multiple users to access Internet via only one single legal IP. It provides Port Forwarding and DMZ for LAN PC to act as an application server. Furthermore, the advanced firewall by the WNRT-300 can protect your Intranet clients from unauthorized accesses and various DoS attacks from the Internet. In aspect of the firewall, the WNRT-300 provides IP/ MAC/ Port/ URL filtering, and prevents possible hackers attack.

Easy Setup Anytime, Anywhere
The WNRT-300 provides a total solution for home and business users. With the High Speed 802.11n wireless technology, the WNRT-300 is easy to integrate the wireless devices with existing wired network.

硬件特性
端口	LAN / WAN : 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port
天线	Gain: 1 x Internal 2dBi Antenna Orientation: Omni-directional

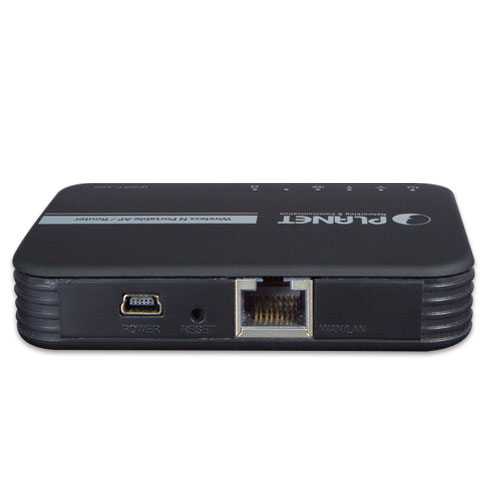

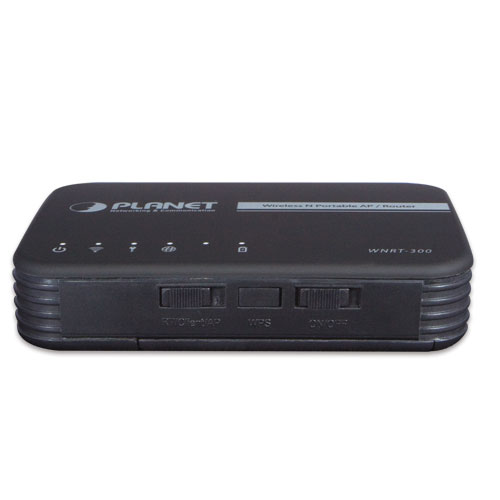

按键/开关	Front panel (from left to right): ?- Mode Selection Switch (Router / Client / AP) ?- WPS Button ?- Power On / Off Switch Rear panel: ?- Reset button * Push for above 5 seconds to reset to factory default settings
LED指示灯	PWR, WLAN, WAN/LAN, WPS, CHG
材质	Plastic
尺寸	88 x 62 x 18 mm
重量	With battery: 80g Without battery: 58g
电池	Built-in Rechargeable Li-ion Battery (3.7V, 1050mAh)
电源需求	DC 5V , 0.4A maximum, connected through mini-USB connector
电源适配器	AC Input: 100~240V AC (50/60Hz) DC Output: 5V with max. 1A current
标配附件	Power Adapter x 1, USB Cable x 1, Ethernet Cable x 1, Li-ion Battery x 1, CD-ROM x 1, Quick Guide x 1
端口规范
标准	Compliance with IEEE 802.11b/g/n
频段	2.4 ~ 2.4835GHz
扩展频率	DSSS
调制类型	DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK / QPSK / 16-QAM / 64-QAM)
数据传输速率	11n: Up to 150Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic)
传输距离	Indoor up to 100m Outdoor up to 300m (Depends on the environment conditions)
信道	America/ FCC: 2.412 ~ 2.462GHz (11 Channels) Europe/ ETSI: 2.412 ~ 2.472GHz (13 Channels) Japan/ TELEC: 2.412 ~ 2.484GHz (14 Channels)
最大. RF功率	20 dBm (EIRP)
接收灵敏度	135M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER
软件特性
操作模式	?? AP ?? Router ?? Client (Switchable by hardware)
无线工作模式	AP, WDS, Repeater (WDS+AP), Universal Repeater (AP + Client)
加密安全	WEP (64/128-bit) encryption security WPA-Enterprise / WPA2-Enterprise (TKIP/AES) WPA-Personal / WPA2-Personal (TKIP/AES) 802.1x Authentication
无线安全	Provides wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Supports WPS (Wi-Fi Protected Setup) Multiple SSID up to 5 wireless groups, each mapped to a separate 802.1p/q tagged VLAN Enable / Disable SSID Broadcast
高级无线功能	WMM (Wi-Fi Multimedia): 802.11e Wireless QoS IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming Provides Wireless Statistics
WAN端口设定	Shares data and Internet access by supporting the following types of internet access: ?- PPPoE ?- Dynamic IP ?- Static IP ?- PPTP ?- L2TP
防火墙功能	NAT firewall with SPI (Stateful Packet Inspection) Built-in NAT server supporting Port Forwarding, and DMZ Built-in firewall with IP address/ MAC address/ Port/ URL filtering Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, and DoS protection Supports 802.1Q VLAN up to 4
路由协议	Static / Dynamic (RIP1 and 2) Routing
VPN 穿透	PPTP, L2TP, IPSec, IPv6
LAN端口	Built-in DHCP server supporting static IP address distributing Supports UPnP, Dynamic DNS Supports IGMP Proxy Supports 802.1d STP (Spanning Tree) IP / MAC-based Bandwidth Control
系统管理	Web-Based (HTTP) management interface SNTP time synchronize Easy firmware upgrade System Log supports Remote Log
标准一致性
IEEE 标准	IEEE 802.11n (1T1R, up to 150Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control
其他协议与标准	CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
环境
Temperature	Operating: 0 ~ 40 Degree C Storage: -40 ~ 70 Degree C
Humidity	Operating: 10 ~ 90% (Non-Condensing) Storage: 5 ~ 90% (Non-Condensing)

订购信息
WNRT-300	150Mbps 802.11n Wireless Portable AP / Router
