| Hardware Specifications |
| 端口 |
“Data” Input Port: 1 x RJ-45 STP
“PoE (Data+Power)” Output Port: 1 x RJ-45 STP
Input power terminal block: 1
|
| LED指示灯 |
System: Power 1, Power 2, Fault (Green)
PoE Port: PoE in Use x 1 (Green)
|
| 线缆类型 |
10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
|
| 数据传输速率 |
10/100/1000Mbps (varies on Ethernet device attached) |
| DIP 开关 |
12V DC / 24V DC output voltage |
| 电源输入 |
802.3at PoE+ 52 ~ 56V DC |
| Power over Ethernet |
| 标准 |
IEEE 802.3at High Power over Ethernet |
| 受电设备数量 |
1 |
| 输出功率 |
12V DC, 2A max.
24V DC, 1A max.
|

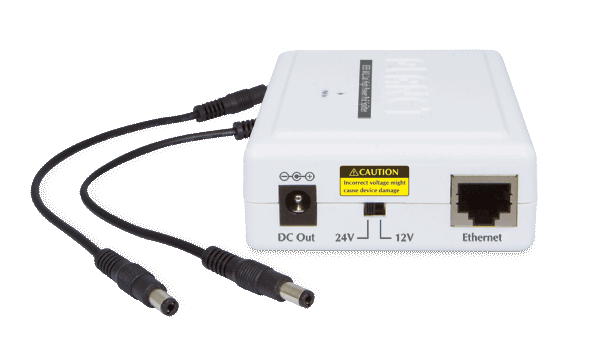

| DC插头连接器(Diameter) |
2 external female plug cables:
- 5.5 / 2.5mm to 5.5 / 2.5mm
- 5.5 / 2.5mm to 5.5 / 2mm
|
| Standards Conformance |
| 标准 |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet
|
