ISW-804PT-M12

Industrial IP67 Rated 8-Port 10/100Mbps M12 Fast Ethernet PoE Switch with Wide Operating Temperature

概述

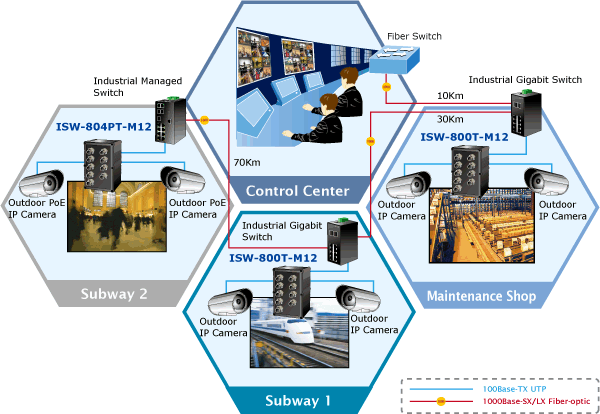

应用场景
功能特性
产品规格
下载
相关产品

In the last few years, PLANET has launched various IP67 protected Industrial products which can be deployed and provide stable Ethernet performance under difficult industrial environments. To further meet some specific industrial environments, PLANET has released a new series of industrial solutions, the ISW-804PT-M12, to provide higher level protection ability with the following features:
??� Industrial Protected IP67 Metal Case
??� Robust M12 Ethernet Connector
??� Waterproof / Dustproof
??� IEEE 802.3af PoE
??� Wide Temperature Support

Industrial IP67 Metal Case and Robust M12 PoE Ethernet Connector Interface

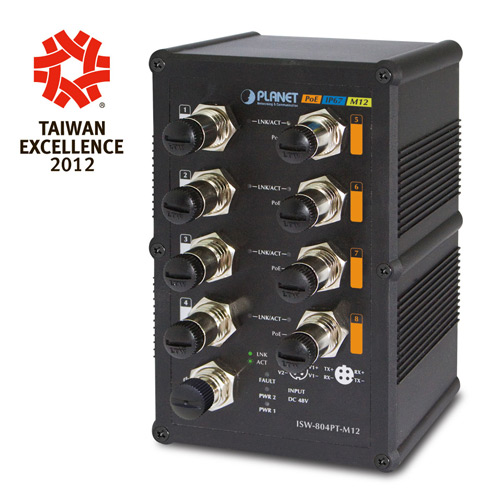

The ISW-804PT-M12, the Industrial 8-Port 10/100Mbps M12 PoE Fast Ethernet Switch, is designed with the IP67 industrial case, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The compact, IP67 standard metal case of the ISW-804PT-M12 allows either DIN rail or wall mounting installation for efficient use of cabinet space.

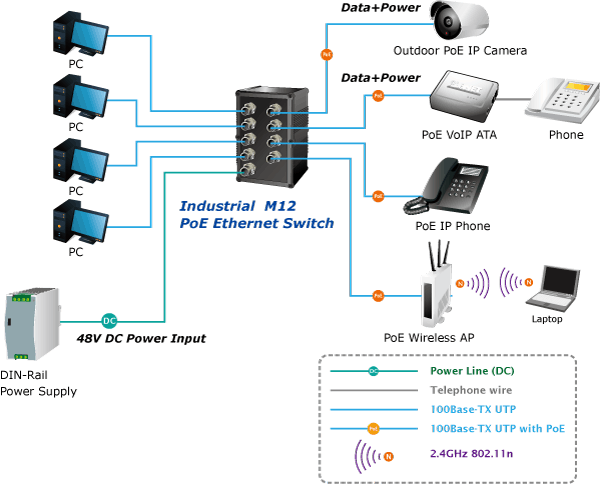

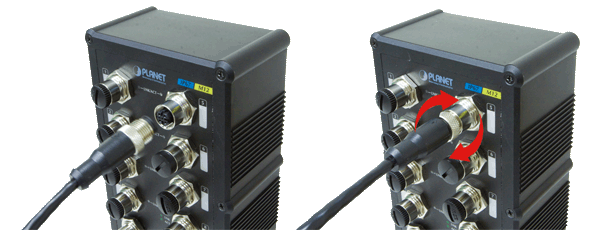

The ISW-804PT-M12 is equipped with 8-port 10/100Base-TX auto-negotiation M12 connector with 4-port IEEE 802.3af PoE (Port 5 to port 8); each PoE port provides 15.4-watt PoE output. The M12 connector provides tight and strong connection and guarantees stable Ethernet operation performance under high vibration and shock environment.

Stable Operateing Performance under Difficult Environments
Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-804PT-M12 can be placed in almost any difficult environment. The ISW-804PT-M12 also possesses an integrated power supply source with wide range of voltages (48V DC) for worldwide high availability applications requiring dual or backup power inputs.

Robust Switch Performance
The ISW-804PT-M12 has 2K MAC Address table and offers wire-speed packets transfer performance without risk of packet loss; the high data throughput of the device makes it ideal for most Fast Ethernet environments. With a 1.6Gbps internal switching fabric and featuring auto negotiation support in each of the eight Fast Ethernet port, the ISW-804PT-M12 can handle large amounts of data in a secure topology linking to a backbone or high capacity servers.

The flow control function enables the ISW-804PT-M12 to provide fast and reliable data transfer. All of the M12 RJ-45 copper interfaces in the ISW-804PT-M12 support 10/100Mbps auto-negotiation for optimal speed detection through RJ-45 category 3, 4, 5, 5e, 6 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

硬件特性
10/100Base-TX 端口	8 x M12, 4-pin D-coded female connector
POE供电端口	4, port 5 to port 8
Power Connector	1 x M12, 5-pin A-Coded male connector
材质	IP67 Aluminum
尺寸	163 x 103 x 53 mm
重量	976g
供电需求	48V DC, redundant power with polarity reverse protection function
功率/损耗	65 watts / 221 BTU
安装方式	DIN rail kit and wall mount ear
ESD 保护	6KV DC
EFT 保护	6KV DC
LED 指示灯	Power LED: ??� Power 1 / Power 2 / FAULT (Green) 10/100Base-TX Port (Port-1 to Port-8): ??� LNK/ACT (Green) PoE Port (Port-5 to Port-8): ??� PoE In-Use (Orange)
电缆类型	10Base-T: 2-Pair UTP Cat.3,4,5 up to 100m (328ft) 100Base-TX: 2-Pair UTP Cat.5, 5e, 6 up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, max.)
2层特性
处理方案	Store-and-Forward
MAC地址表	2K entries
流量控制	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
交换结构	1.6Gbps
带宽传输	1.19Mpps@64Bytes
最大传输单元	1536 bytes
管理特性
国际标准	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3af Power over Ethernet
遵从法规	FCC Part 15 Class A, CE
稳定性测试	IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
以太网供电（PoE）
PoE 供电标准	IEEE 802.3af Power over Ethernet / PSE
PoE 电源供电类型	End-Span
PoE 输出功率	48V DC per port, 350mA . max. 15.4 watts
供电针脚定义	1/2(+), 3/6(-)
PoE 总输出功率	60 watts
环境
温度	Operating: -40~75 degrees C Storage: -40~75 degrees C
湿度	Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)
标准一致性
Packet Contents	1 x M12 4-pin D-coded male connector to RJ-45 Ethernet cable, 1.2m 1 x M12 5-pin A-coded female connector power cable, 1.2m 1 x Wall-mount kit 1 x DIN-rail kit (attached to M12 switch as default) 1 x User�s manual

订购信息
ISW-804PT-M12	Industrial IP67 Rated 8-Port 10/100Mbps M12 Ethernet Switch with 4-Port PoE (-40~75 degrees C)

附件
CB-M12D4MD4F-1000	4-pin D-coded M12 Male to D-Coded M12 Female Ethernet Cable, 10meters
CB-M12D4MRJ-1000	4-pin D-coded M12 Male to RJ-45 Ethernet Cable, 10 meters
CB-M12D4MRJ-120	4-pin D-coded M12 Male to RJ-45 Ethernet Cable, 1.2 meters
