| Electrical Specifications |
| Type |
Gas discharged
|
| Frequency |
0 ~ 6GHz |
| V.S.W.R |
0 ~ 5GHz 1: 1.5
5 ~ 6GHz 1: 2.0 |
| Gain Loss |
0.5dB |
| Maximum Withstand Current |
20KA |
| DC Breakdown Voltage |
9020%?@100V/S? |
| Impulse Breakdown Voltage |
?600V?@1KV/?s? |
| AC Discharge Current |
5A?@50Hz? |
| Surge Discharge Current |
5KA ?@8/20?s? |
| Insulation Resistance |
?1000m? |
| Electrode Capacitance |
?1.5P |
| Environment Specifications |
| Temperature Range |
-40 ~ 65 degrees C |
| Humiture |
85 degrees C / 85% RH-48hrs |
| Mechanical Specifications |

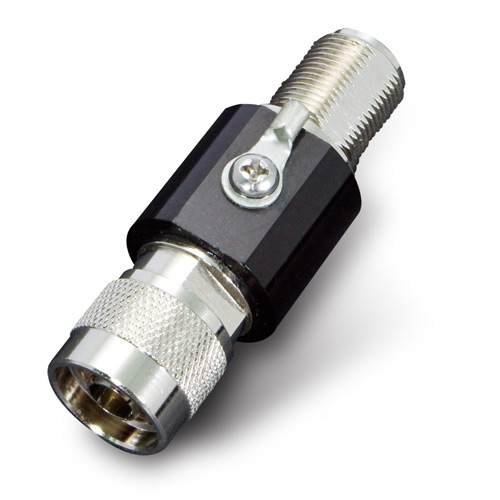

| Connector Type |

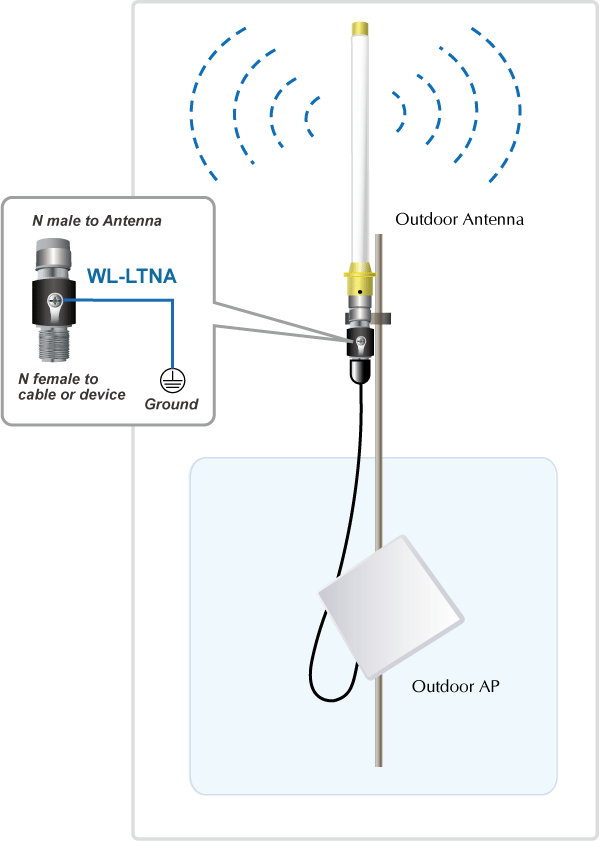

N-male (male pin) to N-female (female pin) |
| Connector Body Material |
Nickel plated Brass |
| Body Material |
Anodized Aluminum |
| Pin Material |
Gold plated Brass |
| Dimensions (W x D x H) |
22 x 68 x 25 mm |
| Weight |
87g |
