| 硬件特性 |
| 端口 |
“PoE (Power + Data)” Input Port : 1 x RJ-45 10/100/1000Base-T
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T
DC Out Plug Connector: 1 removable 4-Pin terminal block
|
| LED 指示灯 |
System: Power Ready x 1 (Green) |
| 电缆类型 |
10/100/1000Base-T: 4-Pair UTP Cat. 5, 5e, 6
Distance up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
|
| 传输速率 |
10/100/1000Mbps
(vary on Ethernet device attached)
|
| DIP 开关 |
12V DC / 24V DC output voltage |
| 电源要求 |
802.3at PoE 48~56V DC |
| 输出功率 |
12V / 24V DC, max 2A (adjustable) |
| 尺寸 |
135 x 87.8 x 32 mm |
| 重量 |
421g |
| 材质 |
IP30 metal case |
| 安装方式 |
DIN rail kit and wall mount ear |
| ESD / EFT 保护 |
6KV DC |
| 以太网供电（PoE） |
| 供电标准 |
IEEE 802.3at High Power over Ethernet |

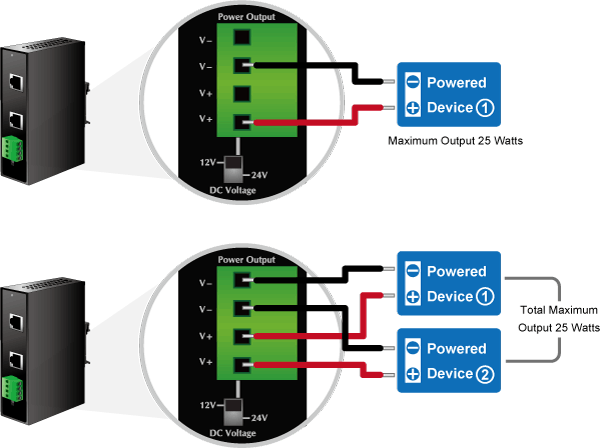

| Number of devices that can be powered |
1 or 2
(Vary on device’s power requirement; DC1 + DC2 cannot be over 25 watts.)
|
| 标准一致性 |
| 国际标准 |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet |
| 遵从法规 |
FCC Part 15 Class A, CE |
| 稳定性测试 |
IEC60068-2-32(Free Fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)
|
| 环境 |
| 工作温度 |
-40 ~ 75 degrees C |
| 存储温度 |
-40 ~ 85 degrees C |
| 湿度 |
5 ~ 95% (non-condensing) |
