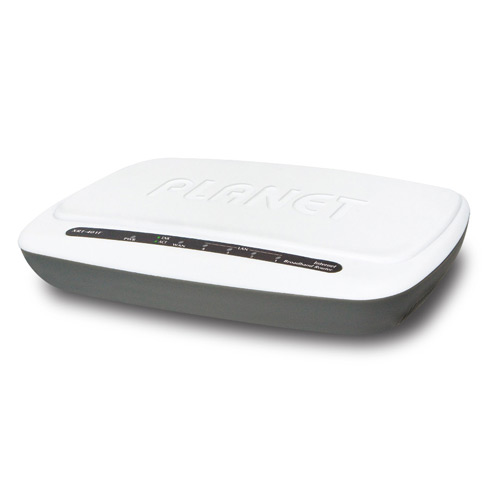

Responding to the trends of growing Internet activities and access security, PLANET XRT-401F Broadband Router performs a perfect solution for high speed Internet access, secure Internet Routings and Triple Play (Voice, Video and Data) applications in the home and SOHO market.
Full Internet Features and Secure Connection

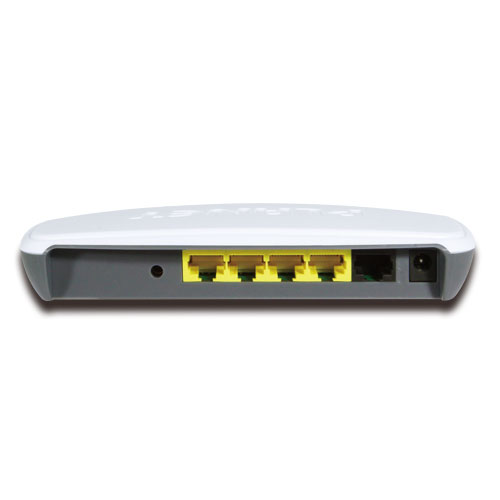

The XRT-401F offers easy integration and full compatibility to existing network infrastructures. It comprises 4 Auto-Sensing, Auto-MDI/MDI-X 10/100Mbps ports and a 10/100Base-TX WAN port providing Internet access for both Servers and LAN workstations. The full Internet features from DHCP server, Firewall, DMZ, DDNS, to VLAN, QoS, and RIP1/2 routing all make the XRT-401F a flexible router for your SOHO networking environment. In addition, MAC, URL and client filtering capabilities make secure Internet connection through the XRT-401F.
Easy Installation and Friendly Management
The XRT-401F provides connection wizard enabling users complete the installation quickly. The various built in connection types including DHCP, fixed IP, PPPoE, PPTP, L2TP and Dual Access* can be optimized for different ISP environments around the world and supports various DDNS clients. Via the user-friendly management interface, the XRT-401F can also be managed by workstations running standard web browsers easily.
* Remarks: Dual Access available only for Russia. | | |

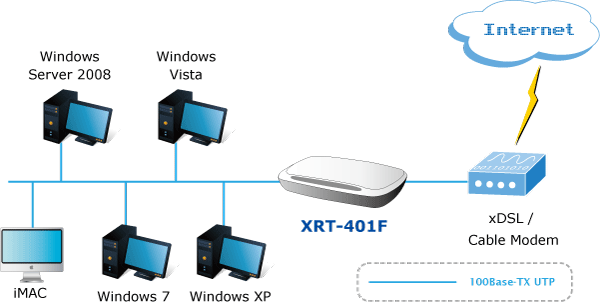

Internet Connection with Firewall
The XRT-401F provides Internet access capability via its WAN port connecting through either xDSL or cable modem. With built-in Firewall functions, it also acts as a security router (NAT disabled + static route) to route the network traffic to a specific destination host. Furthermore, providing add-on virtual servers, UPnP, and DMZ support, the XRT-401F helps users enjoy trouble-free Internet communication. | | | | | |
Firewall / Security Features
Built in NAT firewall
Client Filtering by IP address with time schedule
URL Filtering: Keyword based URL Filter to block LAN users
?access to undesirable websites
MAC Control
Internet Functions
Virtual Servers: allows Internet users to access Internet
?servers on their LANs. The required setup is quick and easy.
Special Internet Applications: Applications which use non-standard
?connections or port numbers are normally blocked by the Firewall.
?The XRT-401F is able to define and allow these applications to be
?used normally.
DMZ Support: the XRT-401F can translate the public IP address to
?private IP address to allow unrestricted 2-Way communication with
?servers or individual users on the Internet, which provides running
?programs with the most flexibility.
LAN Features
Four Auto-Negotiation, Auto-MDI / MDI-X Ethernet ports provide
?connection to local LAN and help to eliminate inconvenient cabling.
One WAN 10/100Base-TX port provides connection to your DSL or cable
?modem.
DHCP Server Support: Dynamic Host Configuration Protocol (DHCP)
?provides a dynamic IP address to PCs and other devices upon request.
?The XRT-401F can act as a DHCP Server for devices on your local LAN.
Configuration & Management
Easy Setup: built-in configuration wizard helps users to complete
?network installation in a very short time via standard Internet
?browsers such as Microsoft Internet Explorer.
Remote Management: the XRT-401F can be managed from any PC on LAN
?or via Internet anywhere around the world.
UPnP Support: UPnP (Universal Plug and Play) allows automatic
?discovery and configuration of the XRT-401F. UPnP is supported by
?Windows ME, XP, or later.
Provides system log and security log. The log can be saved at syslog
?server or mail to a specific account. | | |
| 硬件规格 |
| 以太网端口和速率 |
4 x LAN port: 10/100M, Half or Full Duplex, Auto-Negotiation, Auto-MID/MID-X
1 x WAN port: 10/100M, Half or Full Duplex, Auto-Negotiation
|
| 电缆 |
10Base-T-2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
100Base-TX-2-pair UTP Cat.5, up to 100m (328ft)
|
| 国际标准 |
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 1034, 1035 DNS
RFC 2136 DDNS
RFC 1058 RIP
RFC 1631 NAT
RFC 2068 HTTP
RFC 2131 DHCP
RFC 2516 PPPoE
RFC 2611 L2TP
RFC 2637 PPTP
UPnP
|
| 电源 |
5V DC, 1A |
| 尺寸(W x D x H) |
168 x 100 x 29 mm |
| 重量 |
135g |
| 管理功能 |
| 管理 |
Web Management |
| 互联网连接类型 |
Fixed IP, PPPoE, DHCP, DHCP, L2TP, PPTP, Dual Access* |
| 最大客户端数 |
253 |
| DHCP 客户端 |
253 |
| PPTP |
Dynamic allocate, limitless |
| IPSec |
Dynamic allocate, limitless |
| L2TP |
Dynamic allocate, limitless |
| 端口映射 |
10 entries |
| 虚拟服务器 |
20 entries |
| 客户端过滤 |
20 entries |
| URL 过滤 |
20 entries |
| MAC控制 |
20 entries |
| 动态 DNS |
no-ip.com, dyndns.org, changeip.com, regfish.com, and www.oray.net |
| 路由 |
Internal Static Routing Table |
| WAN端口的MAC地址 |
Manually configure or copy from PC |
| 高级功能 |
Remote Management (user-definable remote admin IP address)
UPnP support
Optional Password protection for web configuration interface
Security Log
System Log
DHCP Client Log
|
| 环境技术指标 |
| 操作 |
Temperature: 0~50 degrees C
Relative Humidity: 0~90% (non-condensing)
|
| 存储 |
Temperature: -10~70 degrees C
Relative Humidity: 0~95% (non-condensing)
|
| 认证 |
FCC, CE |
| * Remark: Dual Access available only for some specified country such as Russia. |
