GT-80x Series

10/100/1000Base-T to 1000Base-SX/LX Gigabit Media Converter

概述
应用场景
功能特性
产品规格
下载
相关产品

Providing the flexibility of 10/100/1000Mbps Ethernet Media via RJ-45 port and highly stable Gigabit fiber performance, PLANET GT-802, GT-802S, GT-805A and GT-806A/B media converters support conversion between 10/100/1000Base-T and 1000Base-LX/SX network. There are SC/SFP/WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.

Distance Extension with High Performance and Steady Network Communications

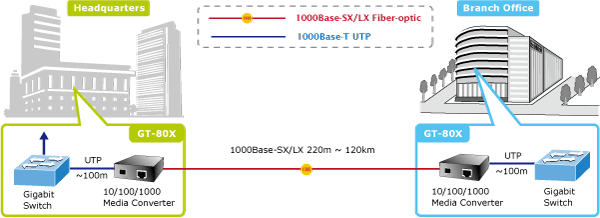

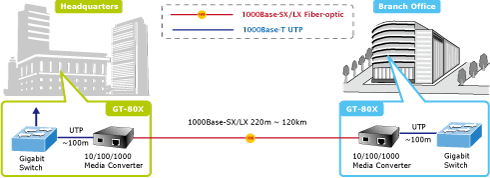

PLANET GT-80x gigabit media converter series extends communications distance with highly Gigabit performance via fiber optic cable. The GT-80x series provides media conversion between 10/100/1000Base-T and 1000Base-SX/LX interfaces such as multi-mode LC/SC connectors (220m / 550m), single-mode LC/SC connectors (10/20/30/40/50/70/120km) and single fiber connectors (WDM, 15/60km) for various fiber optic applications.

Enhanced Smart Management Features
The GT-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Pass through function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR). LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net. The DIP switch can disable or enable the LFP function. The LLCF means when a device connected to the converter and the TP line loses the link, the converter�s fiber will disconnect the link of transmission. The LLR (Link Loss Return) means when a device connected to the converter and the fiber line loses the link, the converter�s fiber will disconnect the link of transmission. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net.

Moreover, Even the web UI is not available on GT-80x, the network manager still can remotely control and monitor GT-80X by OAM TS-1000 terminal function such as remote failure indication, loop back test, port status, performance monitoring and troubleshooting. PLANET GT-90x and IGT-90xT models provide TS-1000/802.3ah OAM protocol (operations, administration, and maintenance) that helps the remote GT-80x device to manage and monitor.

Easy Installation

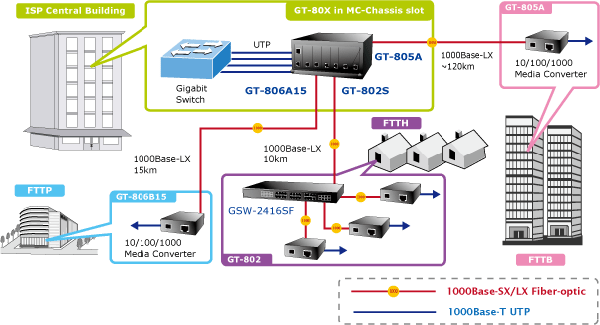

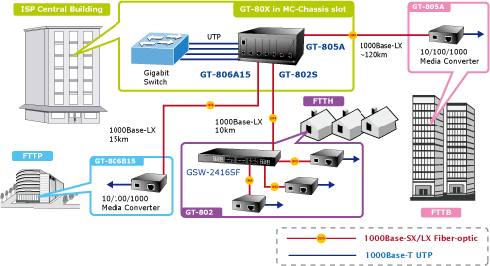

The GT-80x series allows two types of the segment to connect easily. The GT-80x series can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch 7-/15-slot media converter chassis (MC-700/MC-1500/ MC-1500R / MC-1500R48). These media chassis can assist in producing the power for the GT-80x to maintain the fiber-optic network at one location. As the Gigabit Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the Gigabit media conversion installation is quite quick and easy with its plug and play feature. The GT-80x also supports flow control and back pressure in half-duplex to eliminate packet loss.

硬件规格
硬件版本	3
国际标准	IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX
端口	1 x 10/100/1000Base-T port, 1 x 1000Base-SX/LX port
电口	RJ-45 port (Auto-MDI/MDI-X) Twisted Pair
光纤接口	GT-802/GT-802S: SC GT-805A: SFP GT-806A15/GT-806B15/GT-806A60/GT-806B60: WDM
光纤最大距离	GT-802: 220 / 550m GT-802S: 10km GT-805A: N/A GT-806A15: 15km GT-806B15: 15km GT-806A60: 60km GT-806B60: 60km
波长	GT-802: 850nm GT-802S: 1310nm GT-805A: N/A GT-806A15: ??TX:1310nm ??RX:1550nm GT-806B15: ??TX:1550nm ??RX:1310nm GT-806A60: ??TX:1310nm ??RX:1550nm GT-806B60: ??TX:1550nm ??RX:1310nm
最大光发射功率	GT-802: -4dBm GT-802S: -3dBm GT-805A: N/A GT-806A15: -3dBm GT-806B15: -3dBm GT-806A60: +5dBm GT-806B60: +4dBm
最小光发射功率	GT-802: -9.5dBm GT-802S: -9.5dBm GT-805A: N/A GT-806A15: -9dBm GT-806B15: -9dBm GT-806A60: 0dBm GT-806B60: -1dBm
最大输入功率	GT-802: N/A GT-802S: -3 GT-805A: N/A GT-806A15: -3 GT-806B15: -3 GT-806A60: -2 GT-806B60: -2
最小输入功率	GT-802: -18 GT-802S: -20 GT-805A: N/A GT-806A15: -21 GT-806B15: -21 GT-806A60: -25 GT-806B60: -25
光链路预算	GT-802: ??3dB(62.5/125?m) ??4dB(50/125?m) GT-802S: 4.9dB GT-805A: N/A GT-806A15: 12dB GT-806B15: 12dB GT-806A60: 25dB GT-806B60: 24dB
速率	Twisted-pair: ??10/20Mbps for half/full-duplex ??100/200Mbps for half/full duplex ??200Mbps for full-duplex Fiber-optic: 2000Mbps for full-duplex
电缆	Twisted-pair ??10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m ??100Base-TX: 2-pair UTP Cat. 5, up to 100m ??1000Base-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable ??50/125?m or 62.5/125?m multi-mode fiber cable, up to ??220/550m. ??9/125?m single-mode cable, providing long distance for ??10/15/20/30/40/50/60/70/120km (vary on fiber transceiver ??or SFP module)
LED 指示灯	?PWR ?TP LINK/ACT, 1000 ?Fiber LINK/ACT
DIP开关	LFP function (Disable / Enable) setting
OAM	TS-1000 and IEEE 802.3ah Terminal mode supported
巨型数据包大小	9K
功率消耗	4.6 watts / 15 BTU (maximum)
电源输入	DC 5V / 2A
尺寸 (W x D x H)	26 x 70 x 97 mm
重量	0.2kg
操作环境	Operating temperature: 0 to 50 degrees C; Humidity: 5~95% non-condensing
储存环境	storage temperature: -10 to 70 degrees C; Humidity: 5~95% non-condensing
认证	FCC Class A, CE Class A

订购信息
GT-802	10/100/1000Base-T to 1000Base-SX Media Converter (SC,MM)-220/550m
GT-802S	10/100/1000Base-T to 1000Base-LX Media Converter (SC,SM)-10km
GT-805A	10/100/1000Base-T to 1000Base-SX/LX Media Converter (mini-GBIC, SFP)-distance depends on SFP module
GT-806A15	10/100/1000Base-T to 1000Base-LX (WDM) Media Converter TX:1310nm~15km
GT-806B15	10/100/1000Base-T to 1000Base-LX (WDM) Media Converter TX:1550nm~15km
GT-806A60	10/100/1000Base-T to 1000Base-LX (WDM) Media Converter TX:1310nm~60km
GT-806B60	10/100/1000Base-T to 1000Base-LX (WDM) Media Converter TX:1550nm~60km
