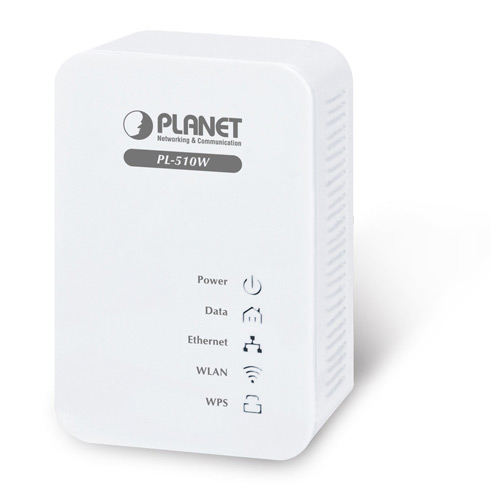

PL-510W

200M Powerline Wireless N Extender

概述
应用场景
功能特性
产品规格
下载
相关产品

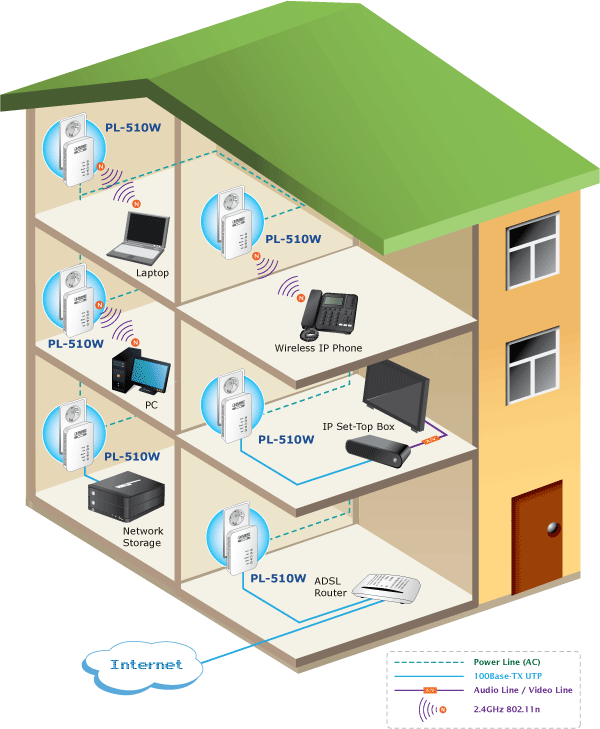

High Speed Wireless Extension via Home�s Powerline
With HomePlug AV technology, PLANET PL-510W Powerline Wireless N Extender efficiently share up to 200/300Mbps high speed Internet connection to any power outlet at home. With hassle-free plug and play installation, it enables users to plug a pair of powerline adapters into the house power outlets, and then immediately enjoy high definition video streaming and network transmission. No more tripping over tangled, messy wires running through your house, the PL-510W is an ideal solution to creating a wall-to-wall home network and extending the connection wirelessly.

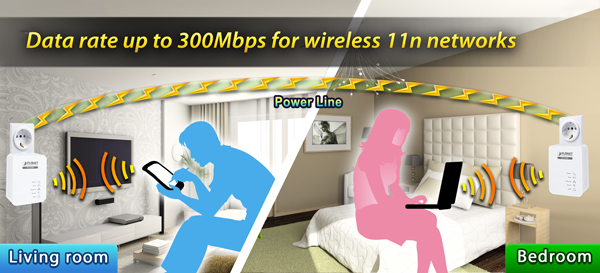

Faster Wireless Speed, Wider Operational Range
The PL-510W features IEEE 802.11n radio with 2T2R antenna technology compliant with 802.11b/g/n standards. With the 300Mbps high speed transmission rates, the PL-510W can easily integrates the wireless devices with existing wired network. To secure the wireless communication, the PL-510W supports most up-to-date encryptions including WEP / WPA / WPA2-PSK with TKIP/AES.

Data Transfer Rate up to 200Mbps and Distance up to 300 Meters over Electrical Wiring
With advanced HomePlug AV technology, the PL-510W provides users with stable, high speed data transfer rates up to 200Mbps on electric powerline length up to 300 meters. Therefore, the PL-510W can transmit multiple HD streams and even Full HD movies to every room, making it a great choice for easily building a multimedia entertainment network.

Securing the Network Connection with the Pair button, no need to remember passwords
Simply by pushing the button on the PL-510W, users can easily set up a hassle-free secure Powerline network within minutes. It provides 128-bit AES encryption for network security and data protection.

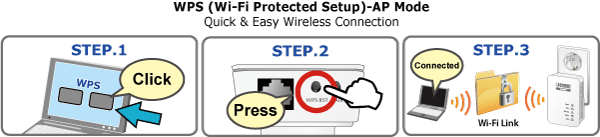

Quick Wireless Connection via WPS Button
The PL-501W supports users to immediately get access to high speed wireless sharing via easy WPS setup:
Step 1: Mouse-click the WPS button in the PC / Laptop
Step 2: Press the WPS button on the PL-510W
Step 3: Wireless connection is done

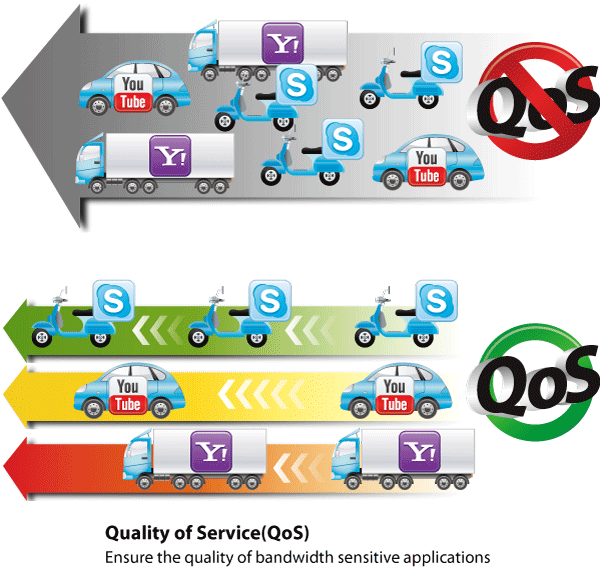

Efficient Bandwidth Management by QoS (Quality of Service)
Quality of Service (QoS) is provided by the PL-510W enabling a network to provide better service to selected network traffic over various technologies. The PL-510W provides 5 priorities of QoS for quick setup such as internet, online game, IPTV, video and VoIP.

硬件规格
网络接口	One RJ-45 port (10/100Base-T Ethernet) One 200Mbps power line port supporting co-existence with HomePlug 1.0 (14/85Mbps)
天线	Gain: 2 x Internal 2.5dBi Antenna Orientation: Horizontal and Vertical
电缆	Cat. 5 UTP cable
LED	Power?On / Off Ethernet? Solid / Blinking / Off Data?Solid / Blinking / Off WLAN?Solid / Blinking / Off WPS?Solid / Blinking / Off

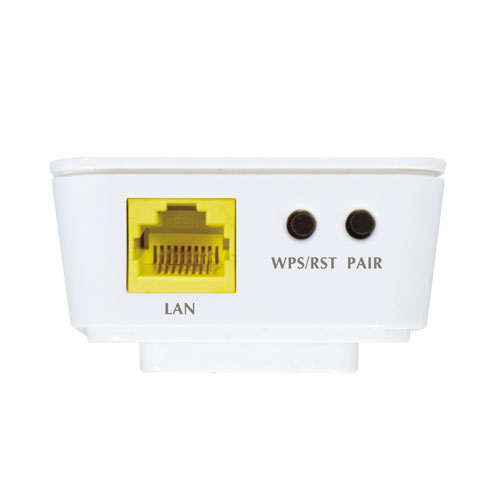

按钮	One WPS / Reset button One Pair button
无线接口
国际标准	IEEE 802.11b/g/n
工作模式	AP mode
频段	2.4~2.4835GHz
数据传输速率	802.11b: 11/5.5/2/1Mbps (Dynamic) 802.11g: 54/48/36/24/18/12/9/6Mbps (Dynamic) 802.11n (40MHz): 270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps (Dynamic) 802.11n (20MHz): 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps (Dynamic)
传输距离	Indoor up to 100m
信道	America / FCC: 2.412~2.462GHz (11 Channels) Europe / ETSI: 2.412~2.472GHz (13 Channels) Japan / TELEC: 2.412~2.484GHz (14 Channels)
信道带宽	20 / 40MHz
最大 RF 功率	802.11b: 17�1.5dBm 802.11g: 14.5�1.5dBm 802.11n (20MHz): 12.5�1.5dBm 802.11n (40MHz): 12.5�1.5dBm
接收灵敏度	802.11b: -92dBm @ 1Mbps; -85dBm @ 11Mbps, PER < 8% 802.11g: -88dBm @ 6Mbps; -73dBm @ 54Mbps, PER <10% 802.11n: -90dBm @ MCS8; -70dBm @ MCS15, PER <10%
加密安全	WEP (64/128-bit) encryption security WPA / WPA2 (TKIP/AES) WPA-PSK / WPA2-PSK (TKIP/AES)
标准
计算机接口	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
标准	IEEE 1901 / HomePlug AV
安全	128-bit AES link encryption with key management
数据PHY速率	200Mbps over Powerline and 10/100Mbps over Ethernet
调制方案	OFDM symbol modulation on line synchronization 1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO carrier modulation
频段	2 ~ 30 MHz
附加议定书	Mix of TDMA and CSMA/CA channel access scheme; CO device generates a periodic beacon carrier for channel access scheme QoS prioritizes both wired and wireless Internet traffic to bandwidth?sensitive applications like online gaming, IPTV or stream multimedia
操作范围	Estimated range of 300 meters in wall powerlines
环境规格
操作	Temperature: 0~40 degrees C Relative Humidity:10~90% (non-condensing)
储存	Temperature: -40~70 degrees C Relative Humidity: 0~90% (non-condensing)
电源	100~240V AC, 50~60Hz internal
尺寸 (W x D x H)	94 x 29.85 x 32 mm
重量	94 g
认证	FCC, CE

订购信息
PL-510W-EU	200M Powerline Wireless N Extender (EU type directly-attached)
PL-510W-UK	200M Powerline Wireless N Extender (UK type directly-attached)
PL-510W-US	200M Powerline Wireless N Extender (US type directly-attached)
PL-510W-KIT-EU	200M Powerline Wireless N Extender KIT (Two Devices Pack, EU type)
PL-510W-KIT-UK	200M Powerline Wireless N Extender KIT (Two Devices Pack, UK type)
PL-510W-KIT-US	200M Powerline Wireless N Extender KIT (Two Devices Pack, US type)
