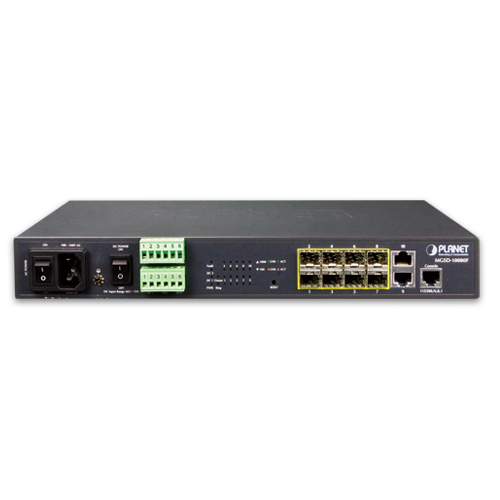

MGSD-10080F

8口全千兆SNMP管理型光纤交换机（8个千兆SFP端口，2个千兆端口，AC DC双电源冗余）

概述

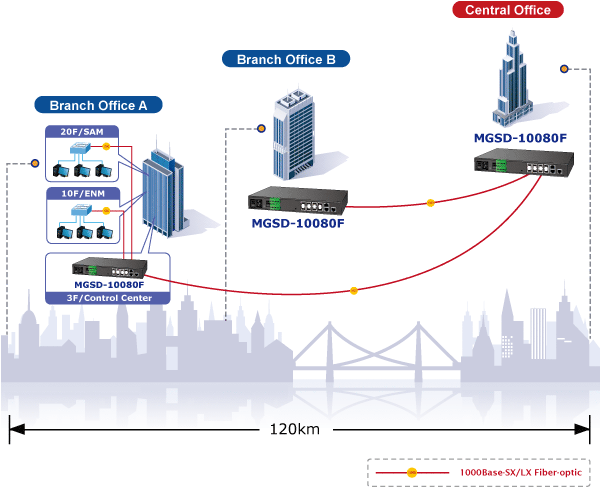

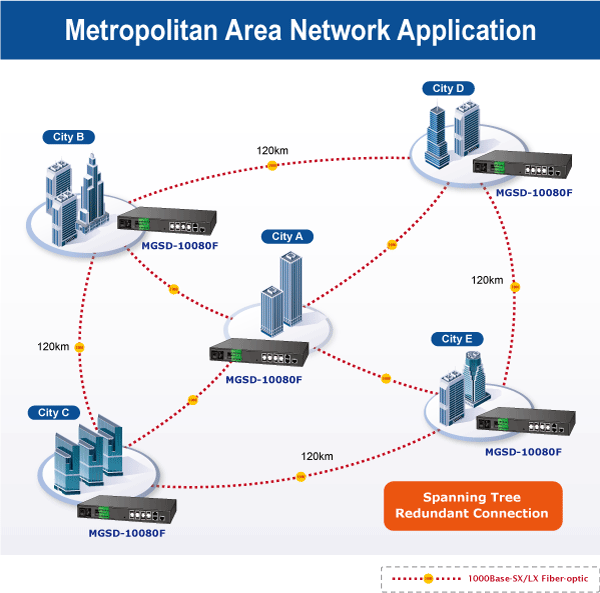

应用场景
功能特性
产品规格
下载
相关产品

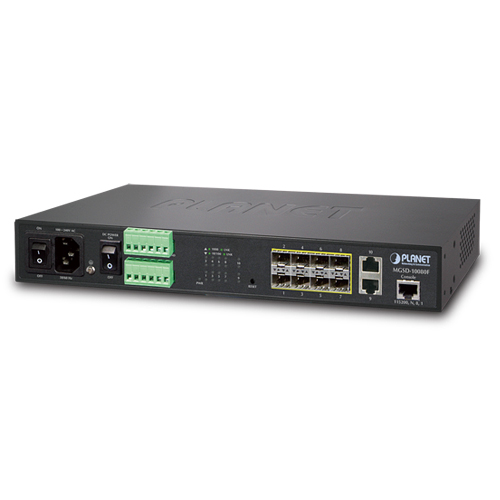

Multiple SFP Fiber Port Switch for Growing Long-Reach Networking of Enterprise, Telecoms and Campuses
PLANET latest Metro series Ethernet switch MGSD-10080F is equipped with advanced management functions and provides 8 100/1000Mbps dual speed SFP Fiber ports, and 2 10/100/1000Mbps TP ports delivered in a rugged strong case. It is capable of providing non-blocking switch fabric and wire-speed throughput as high as 20Gbps in the temperature range from -10 to 60 degrees C without any packet loss and CRC error, which greatly simplify the tasks of upgrading the enterprise LAN for catering to increasing bandwidth demands. The MGSD-10080F is specially designed for service provider to deliver profitable long distance Ethernet network. The MGSD-10080F adopts �Front Access� design, making the wiring and maintenance of the MGSD-10080F placed in a cabinet very easy for technicians.

Flexible and Extendable Solution

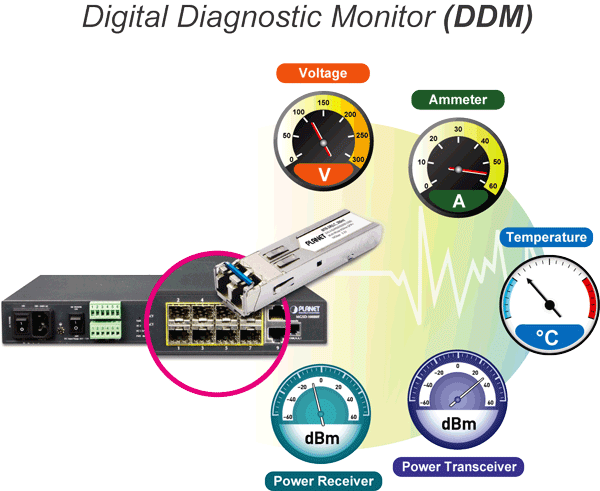

The 8 mini-GBIC slots built in the MGSD-10080F support dual-speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The MGSD-10080F supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

AC and DC Redundant Power to Ensure Continuous Operation
To enhance the operation reliability and flexibility, the MGSD-10080F is equipped with one 100 ~ 240V AC power supply unit and two additional 36 ~ 72V DC power input connectors for redundant power supply installation. The Redundant Power Systems are specifically designed to handle the demands of high tech facilities requiring the highest power integrity. Furthermore, with the 36~ 72V DC power supply implemented, the MGSD-10080F can be applied as the telecom level device that could be located in the electronic room.

Digital Input and Digital Output for External Alarm

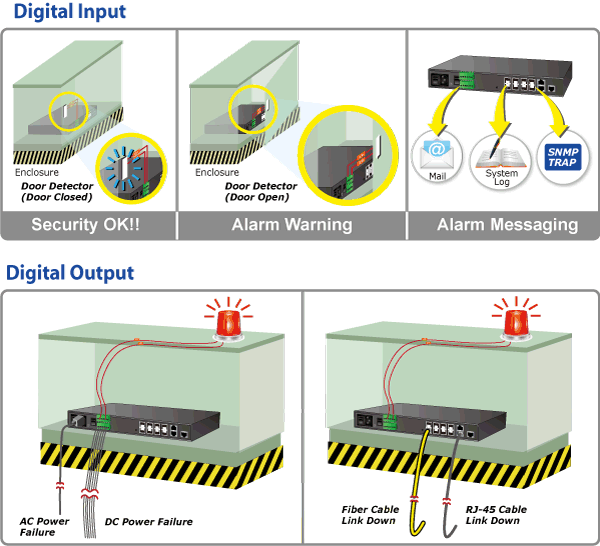

The MGSD-10080F supports Digital Input, and Digital Output on the front panel. The external alarm offers technicians the ability to use Digital Input to detect, and log external device status (such as door intrusion detector) for the alarm as Digital Output could be used to alarm if the MGSD-10080F has port link down, link up or power failure.

Cost-effective IPv6 Managed Gigabit Switch Solution for Metro Ethernet
To fulfill the demand for ISP to build the IPv6 (Internet Protocol version 6) network infrastructure speedily, the MGSD-10080F supports both IPv4 and IPv6 management functions. It can work with original IPv4 network structure and also support the new IPv6 network structure. With easy and friendly management interfaces and plenty of management functions included, the MGSD-10080F Metro Ethernet Switch is the best choice for ISP and service providers to build the IPv6 FTTx edge service and for Industries to connect with IPv6 network.

Layer 2 / Layer 4 Full-functioned Managed Switch for Building Automation Networking
The MGSD-10080F Managed Ethernet Switch is also ideal for applications in the factory data centers and distributions. It provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and secure management features to protect customer�s Automation Ethernet network connectivity with reliable switching recovery capability that is suitable for implementing fault tolerant and mesh network architectures.

Powerful Security
The MGSD-10080F offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection mechanisms also comprise port-based 802.1x and MAC-based user and device authentication. The port-security is effective in limiting the numbers of clients passing through, so that network administrators can now construct highly secured corporate networks with time and effort considerably less than before.

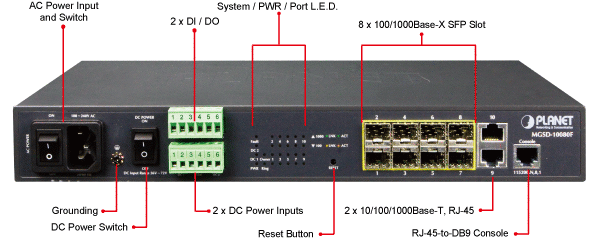

Physical Port

8 100/1000Base-X SFP mini-GBIC slots
2-Port 10/100/1000Base-T Gigabit Ethernet RJ-45
One RJ-45 console interface for basic management and setup

Redundant Power System

Redundant Power System: 100V ~ 240V AC / Dual 36V ~ 72V DC
Active-active redundant power failure protection
Backup of catastrophic power failure on one supply
Fault tolerance and resilience

Digital Input / Digital Output

2 Digital Input (DI)
2 Digital Output (DO)
Integrates sensors into auto alarm system
Transfer alarm to IP network via SNMP trap

Hardware Design

-10 to 60 degrees C operating temperature for DC power input only
13-inch desktop size, 19-inch Rack-mountable
Relay alarm for port breakdown, power failure
Fanless design

Layer 2 Features

Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
Storm Control support

- Broadcast / Multicast / Unicast

Supports VLAN

- IEEE 802.1Q Tagged VLAN

- Up to 255 VLANs groups, out of 4094 VLAN IDs

- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

- Private VLAN Edge (PVE)

- Protocol-based VLAN

- MAC-based VLAN

- Voice VLAN

Supports Spanning Tree Protocol

- STP, IEEE 802.1D Spanning Tree Protocol

- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN

- BPDU Guard

Supports Link Aggregation

- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (Static Trunk)

- Maximum 5 trunk groups, up to 8 ports per trunk group

- Up to 16Gbps bandwidth (Duplex Mode)

Provides port mirror (1-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops

Quality of Service

Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification

- IEEE 802.1p CoS

- IP TOS / DSCP / IP Precedence

- IP TCP/UDP port number

- Typical network application

Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic-policing policies on the switch port
DSCP remarking

Multicast

Supports IGMP Snooping v1, v2 and v3
Supports MLD Snooping v1 and v2
Querier mode support
IGMP Snooping port filtering
MLD Snooping port filtering
MVR (Multicast VLAN Registration)

Security

IEEE 802.1x Port-based / MAC-based network access authentication
Built-in RADIUS client to co-operate with the RADIUS servers
RADIUS / TACACS+ users access authentication
IP-based Access Control List (ACL)
MAC-based Access Control List
Source MAC / IP address binding
DHCP Snooping to filter untrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
IP address access management to prevent unauthorized intruder

Management

Switch Management Interfaces

- Console / Telnet Command Line Interface

- Web switch management

- SNMP v1 and v2c switch management

- SSH / SSL and SNMP v3 secure access

Four RMON groups (history, statistics, alarms, and events)
IPv6 IP Address / NTP / DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
Firmware upload / download via HTTP / TFTP
DHCP Relay
DHCP Option 82
User Privilege levels control
NTP (Network Time Protocol)
Link Layer Discovery Protocol (LLDP) Protocol
SFP-DDM (Digital Diagnostic Monitor)
Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
Reset button for system reboot or reset to factory default
PLANET Smart Discovery Utility for deploy management

硬件规格
SFP端口	8个千兆SFP mini-GBIC 接口，端口1-8
电口	2个千兆电口
Console 端口	1 x RJ-45-to-RS-232串口(115200, 8, N, 1)
交换处理方式	存储转发
吞吐量	14.8Mpps @ 64Bytes
背板带宽	20Gbps / 无阻塞
地址表	8K地址表，自动学习和老化机制
共享数据缓冲区	4Mbits
流量控制	支持IEEE 802.3x 全双工和半双工模式
巨型帧	9Kbytes
复位键	< 5 秒: 系统重启 > 10 秒: 恢复出厂设置
尺寸 (W x D x H)	330 x 155 x 43.5 mm, 1U高度
重量	1661g
LED 指示灯	System: PWR (Green) DC 1 (Green) DC 2 (Green) Fault Alarm (Green) Ring* (Green) Ring Owner* (Green) Per Gigabit Ports: 100 LNK/ACT (Orange) 1000 LNK/ACT (Green)
功率消耗	Max. 11.2 Watts / 38.2 BTU (AC输入) Max. 10.8 Watts / 36.9 BTU (DC输入)
电源要求	AC 100~240V, 50/60Hz 0.15A -36V DC @ 0.3A, Range: -36V ~ -72V DC
报警	输出电源故障报警报警继电器的电流携带能力：1A@ DC 24V
DI/DO	2个数字输入（DI） 0级：-24V〜2.1V（0.1V） 1级：2.1V〜24V（0.1V）输入负载为24V DC，最大10mA 2个数字输出（DO）：集电极 24VDC，最大100mA
2层功能
端口设置	端口禁用/启用自动协商10/100/1000Mbps全双工和半双工模式选择流量控制禁用/启用每个端口的带宽控制省电模式控制
端口状态	显示每个端口的速率双工模式，链路状态，流量控制状态，自动协商状态，Trunk状态
端口镜像	TX / RX / 两者 1 to 1 monitor
VLAN	802.1Q tagged VLAN Q-in-Q 通道专用VLAN Edge (PVE) 基于MAC地址 VLAN 基于协议 VLAN 语音VLAN 基于子网 VLAN MVR 最大255个VLAN组, 最多4094条VLAN ID
链路聚合	IEEE 802.3ad LACP 和静态trunk 支持5组 trunk，每组8个端口
QoS	每个端口8个输出队列基于端口、802.1p、DSCP/TOS的优先级
IGMP Snooping	IGMP (v1/v2/v3) Snooping，最大255个组播组支持IGMP查询
MLD Snooping	MLD (v1 / v2) snooping, 最大支持255个组播组支持MLD查询模式
访问控制列表	IP ACL/ MAC ACL，支持123条
带宽控制	每个端口带宽控制进: 500Kb~1000Mbps 出: 500Kb~1000Mbps
管理
基本管理界面	Console, 远程登录, Web管理， SNMP v1, v2c and v3
安全管理界面	SSH, SSL, SNMP v3
SNMP MIBs	RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2819 RMON MIB (Group 1) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC-3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB
标准
认证标准	FCC Part 15 Class A, CE
遵循国际标准	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad Port trunk with LACP IEEE 802.1D Spanning tree protocol IEEE 802.1w Rapid Spanning tree protocol IEEE 802.1s Multiple Spanning tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2
环境
工作环境	温度: 10 ~ 60 °C DC电源输入相对湿度: 5 ~ 95% (无冷凝)
储存环境	温度: -10 ~ 70 °C 相对湿度: 5 ~ 95% (无冷凝)

订购信息
MGSD-10080F	8口全千兆SNMP管理型光纤交换机（8个千兆SFP端口，2个千兆端口，AC DC双电源冗余）
