IGT-1205AT

10/100/1000T to 2-port 100/1000X SFP 工业级光电转换器

概述
应用场景
功能特性
产品规格
下载
相关产品

Flexible, Reliable and Industrial-grade Network Distance Extension Solution

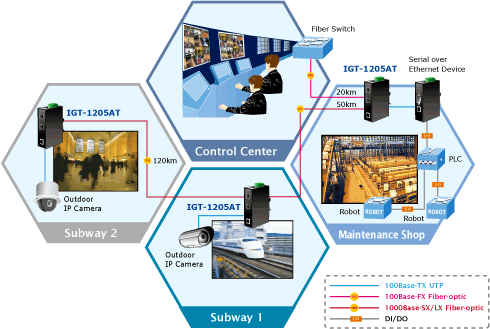

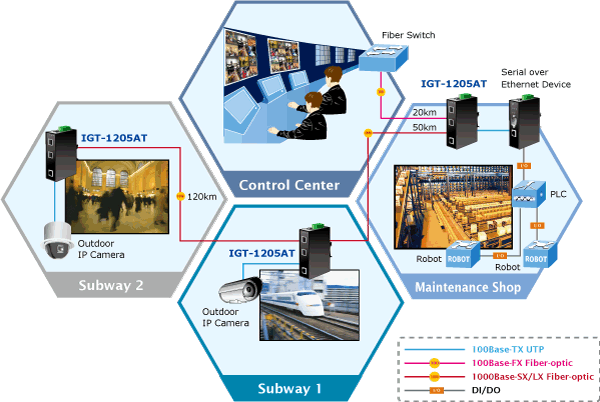

PLANET IGT-1205AT is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 10/100/1000Base-T RJ-45 copper and two 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGT-1205AT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from �40 to 75 degrees C.

Fiber-Optic Link Capability Enables Extension of Network Deployment

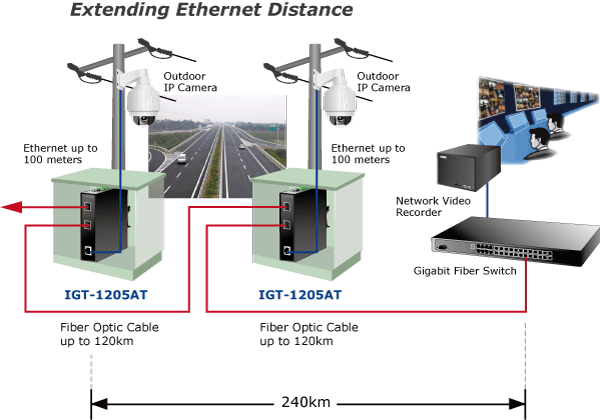

The two SFP slots are compatible with 100Base-FX or 1000Base-SX / LX / WDM through SFP (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the Gigabit Ethernet distance can be extended from 550 meters (Multi-mode fiber cable) up to 10/20/30/40/50/70/120 kilometers (Single-mode fiber cable), and also the Fast Ethernet distance can be extended from 2km (Multi-mode fiber cable) up to 20/40/60 kilometers (Single-mode fiber cable). They are well suited for applications within the factory data centers and distributions.

Adjustable 3-Port Switch Mode or 2 Fiber Redundant Mode

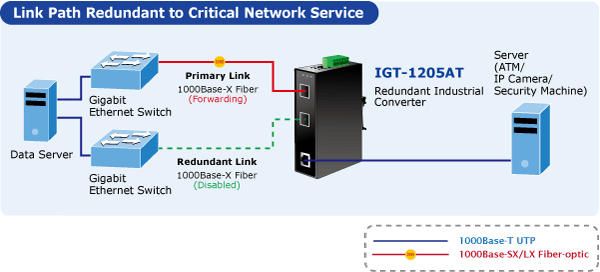

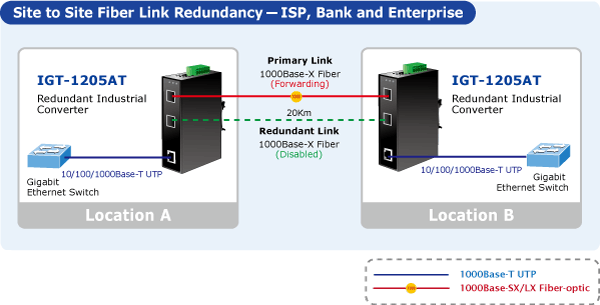

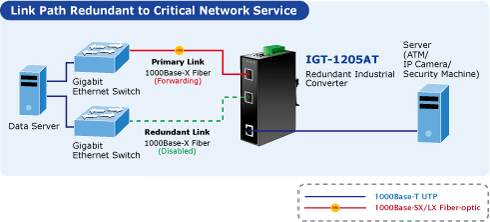

Via the built-in DIP switch, the two SFP fiber interfaces of the IGT-1205AT can be configured as Ethernet switch mode or Fiber Redundant mode. With the Ethernet switch mode, it can operate in Store-and-Forward mechanism with high performance; with the 2-port Fiber redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.

Environmentally Hardened Design

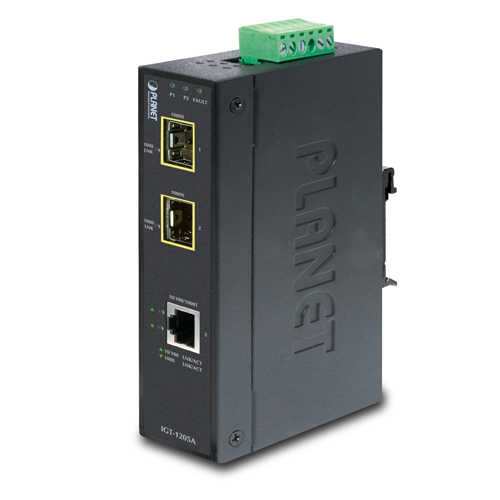

The IGT-1205AT is equipped with the slim-type IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGT-1205AT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGT-1205AT can be placed in almost any difficult environment. The IGT-1205AT also allows either DIN rail or wall mounting for efficient use of cabinet space.

Convenient and Reliable Power System
To enhance the operation reliability and flexibility, the IGT-1205AT is equipped with two DC power input connectors for redundant power supply installation. It also possesses an integrated power supply source with wide-ranging voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs.

硬件特性

电口

1 x 10/100/1000Base-T RJ-45 TP
Auto-MDI/MDI-X, Auto-Negotiation

光口

2 1000Base-SX/LX/BX SFP interfaces (Port-1 and Port-2)
Compatible with 100Base-FX SFP

DIP开关

DIP-1: SFP Port 1 1000Base-X (default) / 100Base-FX
DIP-2: SFP Port 2 1000Base-X (default)/ 100Base-FX
DIP-3: Switch mode / Fiber Redundant mode

连接器

Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

报警功能

Provides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V

LED指示灯

3 x LED for System and Power:
?? Green: DC Power 1
?? Green: DC Power 2
?? Green: Power Fault
2 x LED for Per Copper Port:
?? Green: 1000 LNK/ACT
?? Orange:100 LNK/ACT
1 x LED for Per mini-GBIC interface (Port-1 and Port-2):
?? Green: LNK/ACT

ESD 保护

6KV DC

EFT 保护

6KV DC

材质

IP30 type metal case

安装方式

DIN rail kit and wall mount ear

尺寸

135 x 87 x 32mm

重量

505g

电源要求

DC 12~48V or AC 24V
Redundant power with polarity reverses protection function

功率/损耗

4.8 watts/16BTU

线缆类型

Twisted-Pair
?10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
?100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
?1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
Fiber-Optic Cable
?1000Base-SX:
??50/125?m or 62.5/125?m multi-mode fiber optic cable, up to 550m
?1000Base-LX:
??9/125?m single-mode fiber optic cable, up to 10/20/30/40/50/70/120
??kilometers (vary on SFP module)
?100Base-FX:
??? 50/125?m or 62.5/125?m multi-mode fiber optic cable, up to 2
???kilometers
??? 9/125?m single-mode fiber optic cable, up to 20/40/60 kilometers
???(vary on SFP module)

2层特性

处理方式

Store-and-Forward

MAC地址表

1K entries

流量控制

Back pressure for half duplex
IEEE 802.3x pause frame for full duplex

背板带宽

6Gbps

吞吐量

4.46Mpps@64bytes

最大传输单元

9216 bytes

传输速率

SX/LX: 2000Mbps (full-duplex)
FX: 200Mbps (full-duplex)
TP: 10/20Mbps, 100/200Mbps, 2000Mbps

标准一致性

IEEE 802.3 Ethernet / 10Base-T
IEEE 802.3u Fast Ethernet / 100Base-TX
IEEE 802.3ab Gigabit Ethernet / 1000Base-T
IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow Control

遵从法规

FCC Part 15 Class A, CE

稳定性测试

IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)

环境

温度

Operating:	-40~75 degrees C
Storage:	-40~75 degrees C

湿度

Operating:	5~95% (non-condensing)
Storage:	5~95% (non-condensing)

订购信息
IGT-1205AT	Industrial 10/100/1000T to 2-port 100/1000X SFP Media Converter
