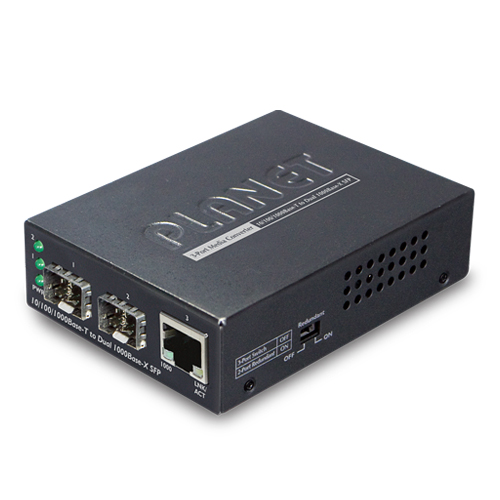

PLANET GT-1205A Gigabit SFP Media Converter is upgraded by providing 2 Gigabit SFP slots, strengthened redundant function, and other features shown below:
?? DIP Switch for 3-port Operation in Gigabit Switch Mode or Redundant Mode
?? Hardware Fiber Port Redundant
Highly Convenient and Distance Extendable

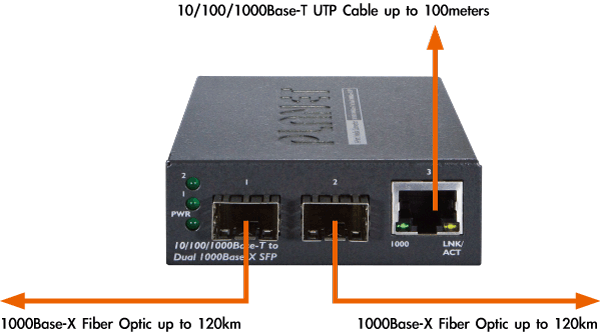

The GT-1205A is equipped with one 10/100/1000Base-T port and dual Gigabit SFP slots to support conversion between 10/100/1000Base-T and 1000Base-X network. The dual SFP slots make the Ethernet signals connect easily and efficiently by adding single-mode or multi-mode media modules or the combination of both types. The GT-1205A provides high reliability and flexibility to extend the media transmission distance up to 550m, 10km or longer, depending on the optional 1000Base-SX / LX SFP transceiver modules. | | | | | | Adjustable 3-Port Switch Mode or 2 Fiber Port Redundant Mode

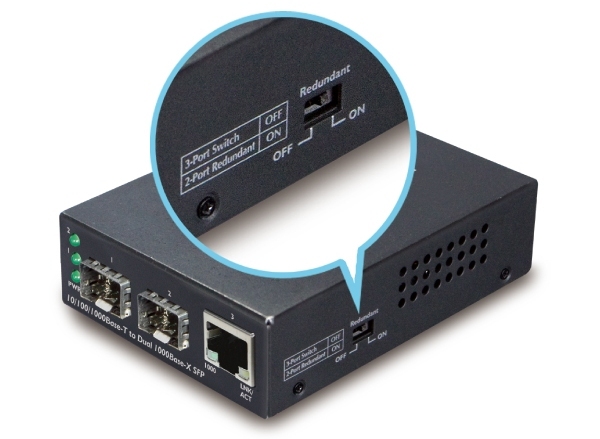

Via the built-in DIP switch, the GT-1205A can be configured as 3-port Ethernet switch or 2-port Redundant Media converter. With the 3-port switch mode, the GT-1205A can operate in Store-and-Forward mechanism with high performance; on the other hand, when in the 2-port redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair. | | | | | | Easy Deployment Standalone or with Chassis
The GT-1205A Gigabit Media Converter can be used as a standalone unit or as a slide-in module to the PLANET Media Converter Chassis, MC-700 and MC-1500 chassis series. These media chassis can assist in providing DC power to the GT-1205A Gigabit Media Converter and the fiber-optic network can be maintained at one central location. With the 3-port switch mode, they work in high performance Store and Forward mechanism, and prevent packet loss with IEEE 802.3x Flow Control (Full-duplex) and Back Pressure (Half-duplex) function.
Plug & Play Installation
As the GT-1205A Gigabit Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX / SX, the Gigabit media conversion installation is quite quick and easy simply by using the plug and play feature. | | |
Gigabit Ethernet Distance Extension

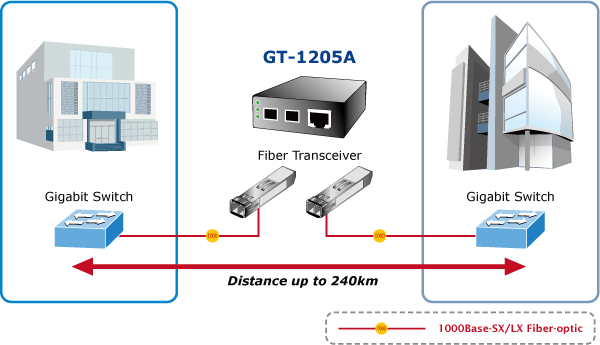

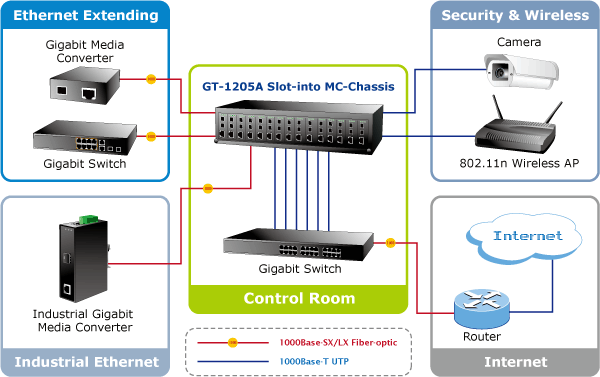

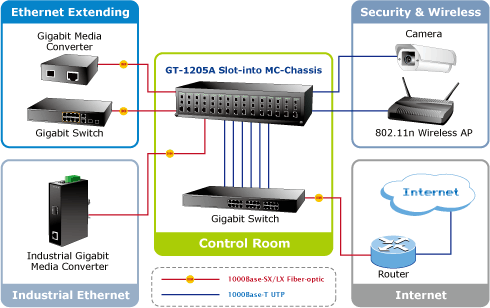

The GT-1205A directly converts the media from the Gigabit fiber to twisted pair interface. For example, it can be applied between the Gigabit Fiber Switch and the Gigabit Copper Network Card to perform media conversion and transmission.

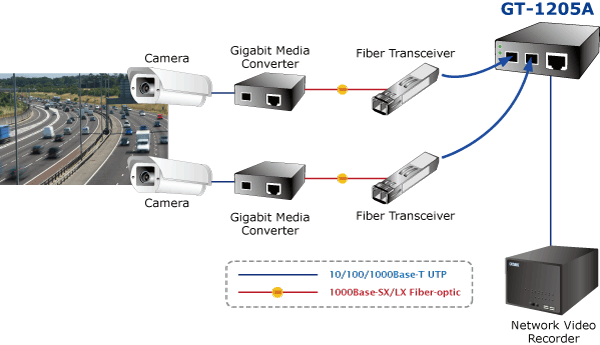

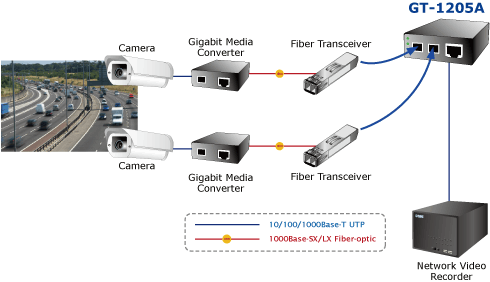

With the conversion, you can easily have the transmission distance of Gigabit copper cable extended up to 550 meters or longer (depending on SFP module). Built in with two SFP ports, the GT-1205A can integrate with the existing copper switch to provide Gigabit fiber transmission without the need of replacing with the Gigabit Fiber Switch. With the Gigabit fiber transmission, the GT-1205A enables video stream to be delivered from the camera up to 120km away to local Network Video Recorder.
| | | | | | | | | Fiber-Optic Networking for ISPs, System Integrators, Enterprises, and Homes
With high performance of data transmission and easy installation, the GT-1205A can build the ISP network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) and FTTB (Fiber to the Building). The GT-1205A is also ideal for small office network environment of enterprises. | | | | | | Fault Tolerant Redundant Link for Critical Network Applications

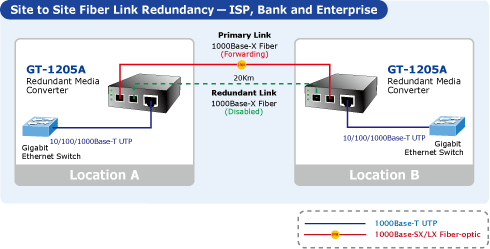

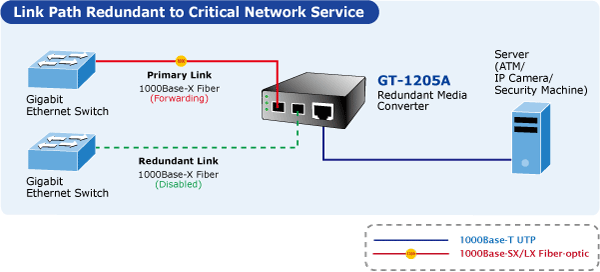

The GT-1205A is designed for optical fiber networks that require rapid link redundancy. With the auto-recovering feature, the redundant media converter responses rapidly for critical applications. | | | | | | | | |
Standard- Complies with IEEE 802.3 10Base-T
- Complies with IEEE 802.3u 100Base-TX
- Complies with IEEE 802.3ab 1000Base-T
- Complies with IEEE 802.3z 1000Base-SX / LX
- IEEE 802.3x Full-duplex Flow-Control, Back-Pressure in Half-duplex eliminate packets loss
Interface- Dual 1000Base-SX / LX SFP Fiber-Optic Slots
- One 10/100/1000Base-T Copper, auto MDI/MDIX function
- Auto-Negotiation for 10/100/1000Base-T; Half-duplex or Full-duplex for 10Mbps and 100Mbps, Full-duplex for 1000Mbps
- Supports maximum frame size up to 1522 bytes
- IEEE 802.1Q Tag VLAN Transparent, Multicast pass-through
Redundancy- Link status auto-detecting and redundant on Dual ports with the same connector type
- Allows only the Primary-Port or the Backup-Port active at a time
- - When the Primary-Port link fail occurs, the traffic swaps to Backup-Port automatically
- - Once the Primary-Port link regains, the traffic swaps from the Backup-Port to the Primary-Port
- Hardware fiber port redundant
Mechanical- External 5V / 2A DC power supply
- LED indicators for easy network diagnose
- DIP switch for 3-port operation with Gigabit switch mode or redundant mode
- Compact in size, easy installation
- Co-works with PLANET 10/19 Media Converter Chassis (MC-700 / MC-1500 / MC-1500R / MC-1500R48)
- Wall mounting and DIN-Rail installation supported
| | |
| 硬件规格 |
| 硬件版本 |
2 |
| 端口 |
Copper: 1 x 10/100/1000Base-T port
Fiber: 2 x 1000Base-X SFP slots |
| 距离 |
Twisted-Pair
?? 10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
?? 100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
?? 1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
Fiber-Optic Cable
50/125?m or 62.5/125?m multi-mode fiber cable provides up to 220 & 550 meters
9/125?m single-mode cable provides long distance of 10/ 15/ 20/ 30/ 40/ 50/ 60/ 70/ 120km (vary on SFP module)
|
| LED 显示屏 |
System: One Power LED (Green)
Fiber Port: Two LNK/ACT LED (Green)
TP Port: One Speed LED (Green) , One LNK/ACT LED (Orange)
|
| 交换方式 |
Store and Forward |
| 背板带宽 |
6Gbps |
| 吞吐量 |
4.4Mpps |
| 最大数据包大小 |
1522 Bytes |
| 流量控制 |
Back pressure for half-duplex. IEEE 802.3x pause frame for full-duplex |
| 电源请求 |
5V DC, 2A max. |
| 功率消耗 |
5.4 watts / 18.5 BTU per hour max. |
| 尺寸 (W x D x H) |
94 x 70 x 26 mm |
| 重量 |
191g (device only) |
| 标准 |
| EMI 安全 |
FCC Class B, CE |
| 操作环境 |
0 ~ 50 degrees C |
| 储存环境 |
-10 ~ 70 degrees C |
| 操作湿度 |
5 ~ 95%, Relative Humidity, non-condensing |
| 储存湿度 |
5 ~ 95%, Relative Humidity, non-condensing |
| 国际标准 |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-SX/LX
IEEE 802.3x Flow Control |
