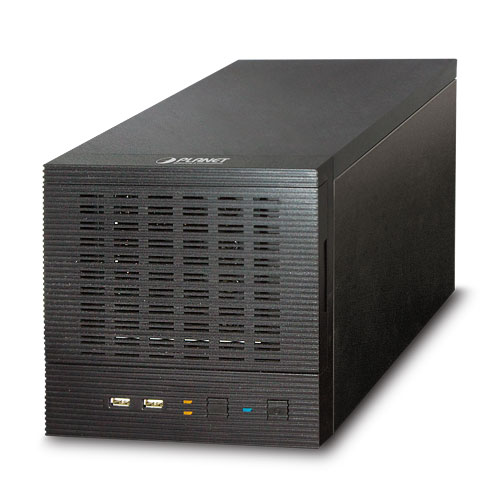

NAS-7410

4-Bay SATA NAS RAID Server with iSCSI

概述

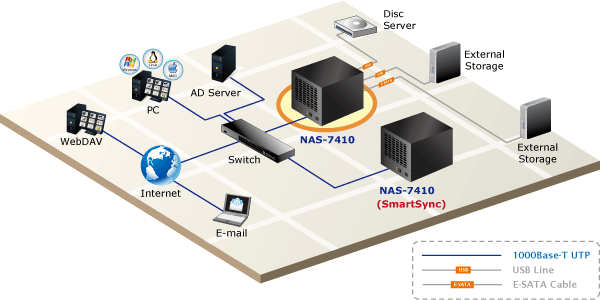

应用场景
功能特性
产品规格
下载
相关产品

High Performance Shared Storage Server

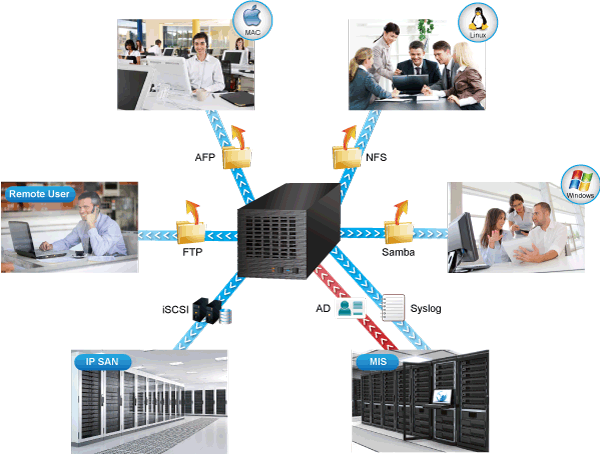

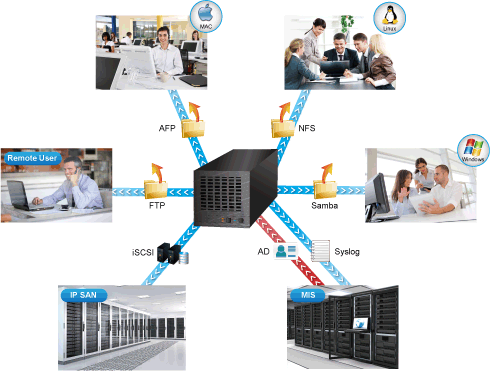

PLANET NAS-7410, a reliable and high-performance business-class network storage, is a 4-Bay RAID network storage system for those seeking reliable and affordable server virtualization and file storage. The network storage unified architecture supports both NAS and IP-SAN applications and solves numerous data management problems with a single system. Support for major network file-system protocols enables cross-platform compatibility and file sharing among Windows, Mac and Unix/Linux operating systems. Integrated data protection and offsite replication features make managing complex business storage environments affordable.

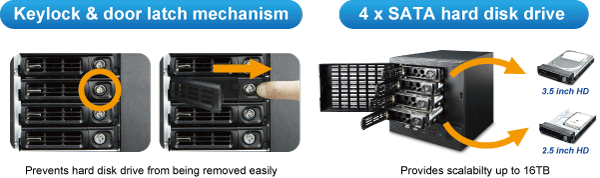

Space Saving & Tray-less Design

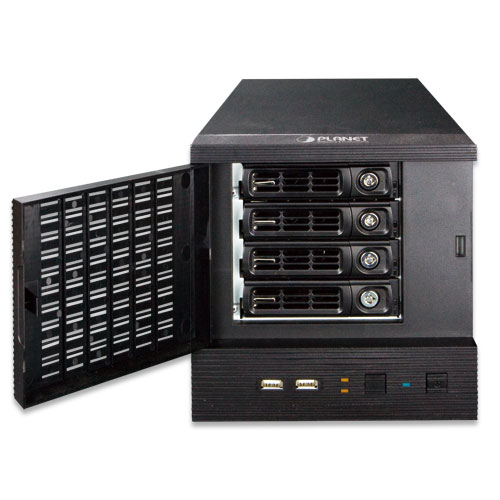

The NAS-7410 is designed to allow up to 4 x 2.5"/3.5" SATA hard drives installation. Each hard drive door has a multi-locking latch mechanism in order to prevent a door from being opened easily. Each of these doors includes a tray and hard drive key that can be easily unlocked and pulled out. Then users can easily attach the hard drive to the hot swap hard drive tray with the screws.

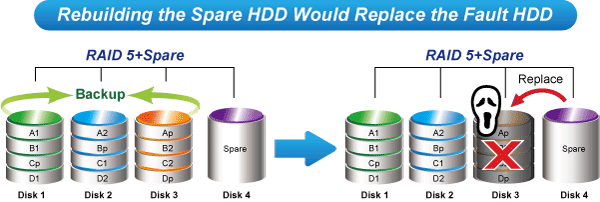

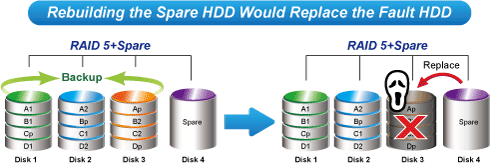

Automatic Data Protection by RAID & Hot-swap
The NAS-7410 provides advanced RAID configurations including RAID 0, 1, 5, 6 and 10 functions. You can get the perfect compromise between speed and disk-failure proof, hardware-level data protection. It also supports hot-swap design so that a failed drive can be replaced by hot swapping without turning off the server.

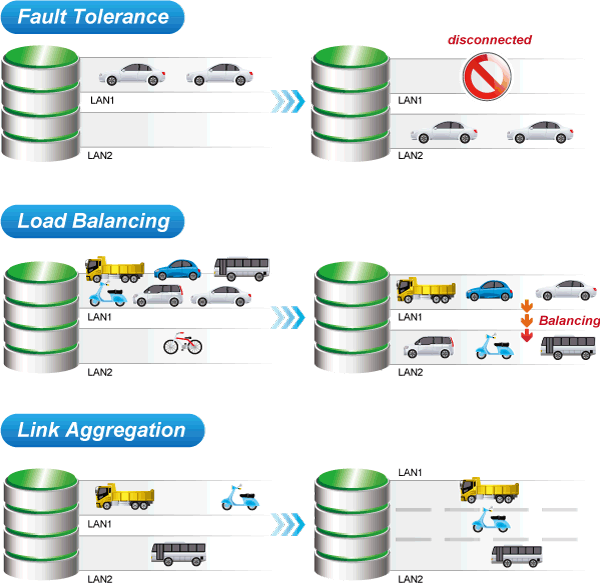

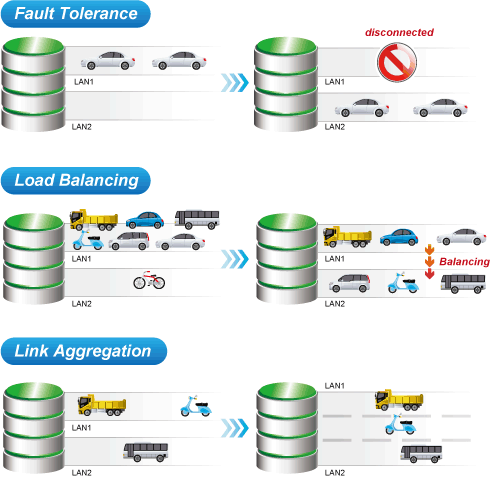

Multiple LAN for Better Efficiency
The NAS-7410 features multiple functions to support LAN storage for better efficiency.

Fault Tolerance: When LAN1 of the NAS-7410 fails to connect to the network, the LAN2 would take over for the LAN1 which is designed to ensure server availability to the network.
Load Balancing: When the traffic of LAN1 starts to get congested, then the LAN2 would share the traffic until the traffic of both LAN ports starts to get balanced. Load Balancing also incorporates Fault Tolerance protection.
Link Aggregation: Combine LAN1 and LAN2 into a single channel and provide greater bandwidth. Must be used with Link Aggregation switch.

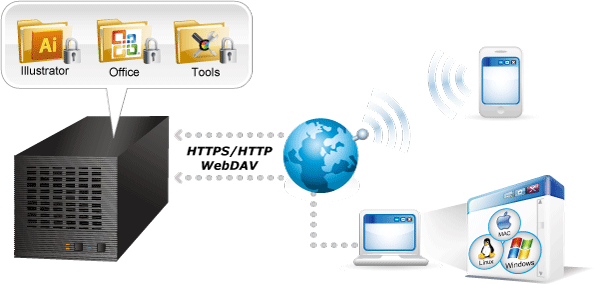

The Extension of Network Communication by WebDAV
The NAS-7410 supports WebDAV, which is an extension of the HTTP protocol for users to edit and manage documents and files that are stored on servers over the Internet. It also allows iOS and Android WebDAV clients to access files from NAS server.

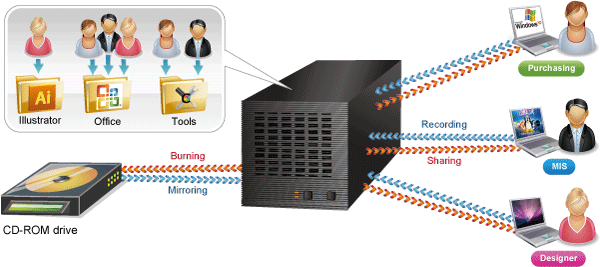

Powerful Disc Images Management and Sharing by Disc Server
Disc Server is our unique technology which is designed for CD/ DVD, Blu-ray disc images creation, burning and data archiving for central management. This feature saves the space for storing the physical discs, reduces the risk of data loss caused by disc wearing and tearing, and enhances the efficiency of data sharing on business network.

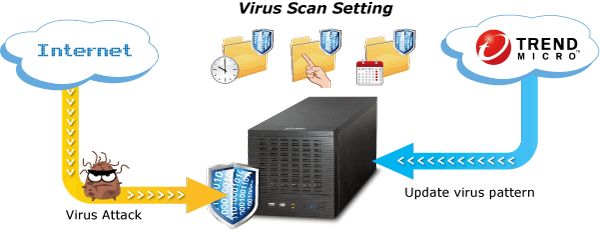

Always-on Data Security with Trend Micro
The NAS-7410 features virus engine scanning technology and cooperates with well-known Trend Micro Anti-virus Company. It updates the virus pattern information automatically via internet to protect NAS against new virus attacks. The real-time online scanning can warn and remove infected files to prevent users from distributing virus from NAS on the network.

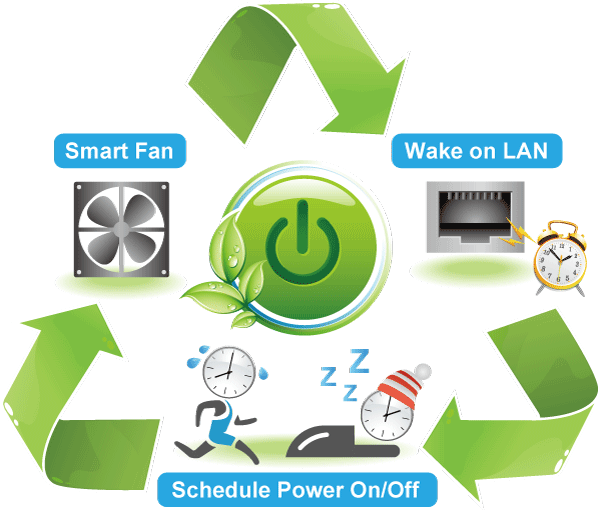

Energy Efficient Design
The NAS-7410 features green technologies to protect the environment and save electricity. The smart fan monitors the system temperature of the NAS-7410 and automatically adjusts its speed to ensure quiet operation and power saving. Scheduled power on/off feature provides flexibility to only allow the NAS-7410 to operate in designated time and therefore minimize power usage. The NAS-7410 can be power on remotely and reduce the power consumption by Wake on LAN.

硬件平台
CPU 频率	Intel D525 1.8GHZ
存储	DDR3 2GB
支持硬盘	4 x 2.5"/3.5" SATA I/II/III hard drives (Hard drive not included) File System: EXT3
按钮	1 x Power button 1 x Reset button
LAN 接口	2 x Gigabit Ethernet ports with load balancing and fault tolerance
USB 接口	6 x USB2.0 port for external storage and UPS File System: FAT16/32, NTFS
E-SATA 接口	1 x E-SATA port for external storage File System: FAT16/32, NTFS
COM 接口	1 x COM port for UPS
风扇	1 x quiet cooling fan (12 cm, 12V DC, Max. 15400RPM)
警报蜂鸣器	System warning
安全设计	Lock security slot for Hard drive prevention
网络配置
网络标准	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3ad for dual link aggregation
协议	IPv4 & IPv6, AppleTalk HTTPS, CIFS/SMB, AFP, NFS(v3/v4), FTP, FTPS (SSL, TLS), SSH, SMTP, SNMP, NTP, iSCSI
安全	Password protection IP address filtering HTTPS encrypted data transmission 802.1X Port-Based authentication for network protection QoS / DSCP
支持的语言	Unicode UTF-8
支持的浏览器	Microsoft Internet Explorer 8, 9, 10 Google Chrome Firefox
支持的客户端	Windows XP, Vista, Windows 7 (32/64-bit), Windows Server 2003/2008 R2 Apple Mac OS 8.X / 9.X / 10.6X Linux & UNIX
数据备份和管理
RAID	Single Disk, JBOD, RAID 0, 1, 1 + Hot Spare, 5, 5 + Hot Spare, 6, 6 + Hot Spare, 10, 10 + Hot Spare
用户/组	2048 (include local/domain account/groups)
共享文件夹	256
并发连接	150
iSCSI目标/ LUN	8
磁盘管理	Bad Block Scan & Hard Drive S.M.A.R.T. Global Hot Spare Drive RAID Recovery BSR (Bad Sector Remap)

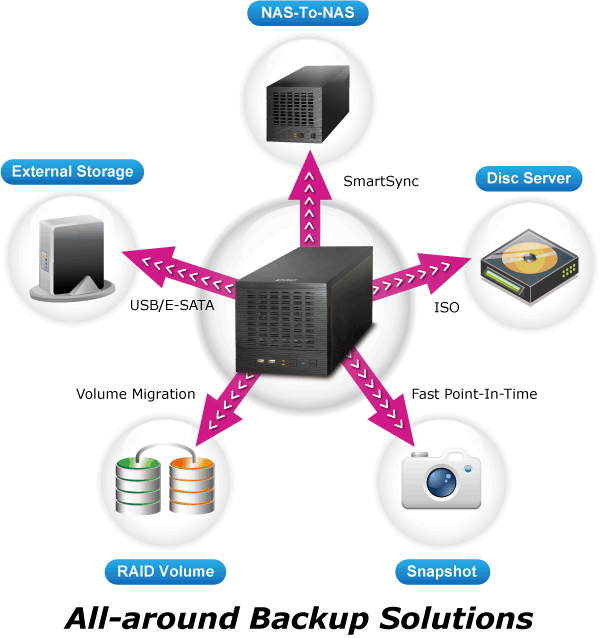

备份解决方案	SmartSync: NAS-to-NAS, NAS-to-USB/E-SATA, USB/E-SATA-to-NAS Snapshot: Point-in-time Copy in a Flash System Profile: Recover from system failures Disc Server: Optical disc recording Data Backup to Multiple External Storage Devices
安全	Network Access?SSH, HTTPS, FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/TLS, SSH/SFTP, Encrypted Remote Replication between NAS Servers Built-in Trend Micro antivirus software Access Control List (ACL) Secure Sockets Layer (SSL) 128-bit encryption Instant Alert via Email, Buzzer, trap, web reminder
规格
电源要求	100~240V AC, 3.5A, 50~60Hz
工作温度	0 ~ 40 degrees C
工作湿度	10 ~ 80% (non-condensing)
重量	5.1Kg
尺寸 (W x D x H)	200 x 320 x 210 mm
电源管理	Wake on LAN Scheduled Power on/off Com Port, USB and Network UPS Support
杀毒软件	Protection against the Latest Known Viruses, Trojans, and other Threats Virus Pattern Update on Manual or Scheduled Basis Email Notification upon Task Completion or Virus Detection Quarantines or Deletes Infected Files Real-time and Schedule Scan Setting
认证	CE, FCC

订购信息
NAS-7410	4-Bay SATA NAS RAID Server with iSCSI
