| Hardware Specifications |
| 接口 |
输入端口
1 x RJ-45 STP
Data In
输出端口
1 x RJ-45 STP
PoE (Data + Power) Out
|

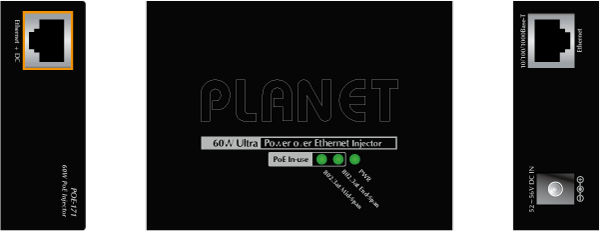

| LED 指示灯 |
System: Power x 1 (Green)
PoE Port: PoE in Use x 1 (Green) |
| 网络线缆 |
PoE 端口 PoE in Use x 1 (Green)
Ultra PoE (60W) 10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft)
802.3af / at PoE
(15W / 30W) 10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328ft)
|
| 速率 |
10/100/1000Mbps |
| 外形尺寸(W x D x H) |
95 x 70 x 26 mm |
| 重量 |
237g |
| 输入伏特 |
DC 56V |
| 电源要求 |
External AC-to-DC adapter
100-240V AC, 50/60Hz, 1.5A
|
| 电源功耗 |
60 watts max. |
| 工作温度 |
0 ~ 50 degrees C |
| 存储温度 |
-10 ~ 70 degrees C |
| 工作湿度 |
5 ~ 90%, Relative Humidity, non-condensing |
| 存储湿度 |
5 ~ 90%, Relative Humidity, non-condensing |
| Power over Ethernet |
| PoE 标准 |
IEEE 802.3at High Power over Ethernet End-span / Mid-span PSE |
| 电源输出 |
DC 56V / 60-watt PoE via 4-pairs
DC 56V / 30-watt PoE via 2-pairs
|
| PoE 电源类型 |
End-Span + Mid-Span |
| 电源引脚分配 |
Pair 1: 1/2(-), 3/6(+)
Pair 2: 4/5(+), 7/8(-) |
| Standards Conformance |
| 标准 |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over Ethernet
|
| 法规遵从 |
FCC Part 15 Class A, CE |
