High Power Outdoor Wireless Coverage

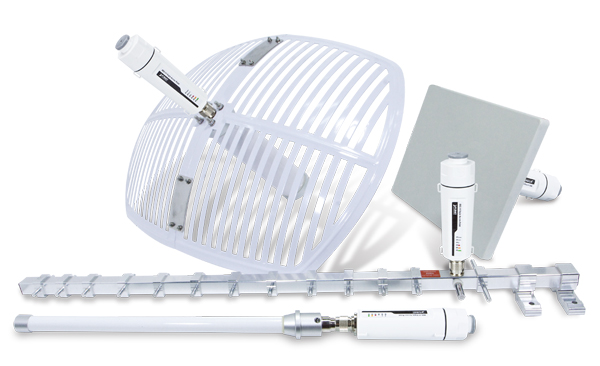

PLANET WNAP-6308 provides a wireless solution that can be easily attached directly to the antenna, which has more flexibility to extend outdoor wireless coverage. Adopting IEEE 802.11n advanced MIMO technology, it provides reliable wireless network coverage, and incredible improvement in the wireless performance. As an IEEE 802.11b/g/n compliant wireless device, the WNAP-6308 is able to give stable and efficient wireless performance for outdoor applications, while designed with IEEE 802.11n standard and 1T1R MIMO technology, the WNAP-6308 makes it possible to deliver data rate up to 150Mbps, three times faster than the normal 802.11g wireless device. With the built-in N-type antenna connector, it can directly connect with various types and high gain antenna such as grid, omni directional, flat panel and yagi-design antennas. Thus, the WNAP-6308 can easily cover a wide range and deliver much farther wireless connection with a distance of over 10km. The WNAP-6308 optionally comes with the following PLANETs products: ANT-OM8, ANT-OM15, ANT-FP9, ANT-FP18, ANT-SE18, ANT-YG13, ANT-YG20, and ANT-GR21.

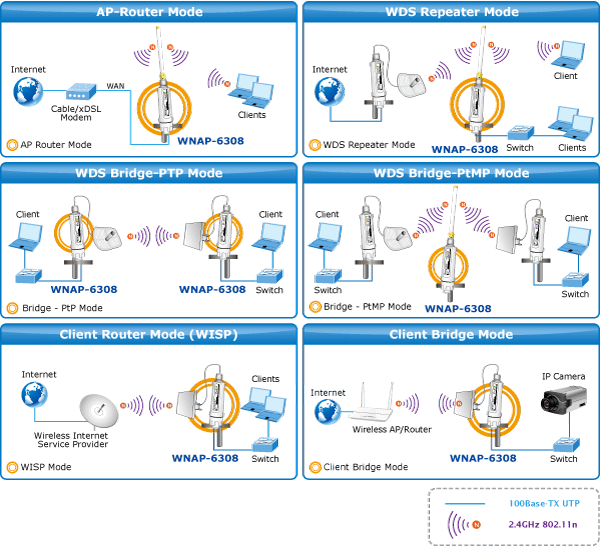

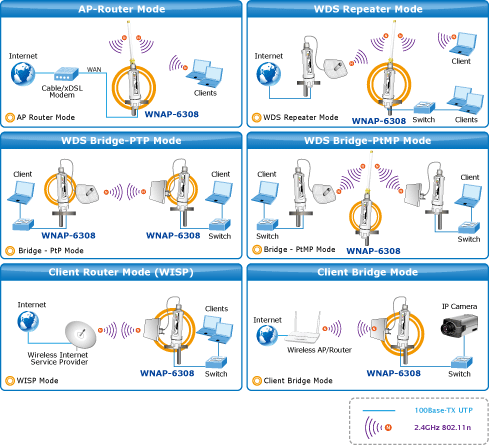

| | | | | | Multiple Operating & Wireless Modes
The WNAP-6308 supports multiple types of wireless communication connectivity (AP, Client CPE, WDS PtP, WDS PtMP, and Repeater) allowing for various application requirements and thus it gives users more comprehensive experience when accessing through Wireless LAN. It helps users to easily build a wireless network and extend the wireless range of the existing wireless network. Moreover, the WNAP-6308 also supports WISP mode, so CPE users could easily connect to Internet via WISP provider or connect to a wired network.
| | | | | | Advanced Security and Management
In aspect of security, besides 64/128- bit WEP encryption, the WNAP-6308 integrates WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. The wireless MAC filtering and SSID broadcast control consolidate the wireless network security and prevent unauthorized wireless connection. Furthermore, with the Dual-SSID feature you can set up two different wireless networks, the WNAP-6308 can therefore serve as a virtual access point for segmented networks tailored to any office or industrial need. With the SNMP-based management interface. The WNAP-6308 is also convenient to be managed and configured remotely.
Highly Reliable Outdoor Device
The WNAP-6308 is perfectly suitable to be installed in outdoor environments and exposed locations. Rated to operate at the temperature from -35 to 65 degrees C and adopted IP55 and outdoor UV Stabilized Enclosure, the WNAP-6308 can perform stably under rigorous weather conditions including heavy rain and wind. With the proprietary Power over Ethernet (PoE) design, the WNAP-6308 can be conveniently installed in the areas where power outlets are not available. It is the best way to use the WNAP-6308 to build outdoor wireless access applications between buildings on campuses, business and rural areas, etc.
| | | | | | Easy Plug-n-Link

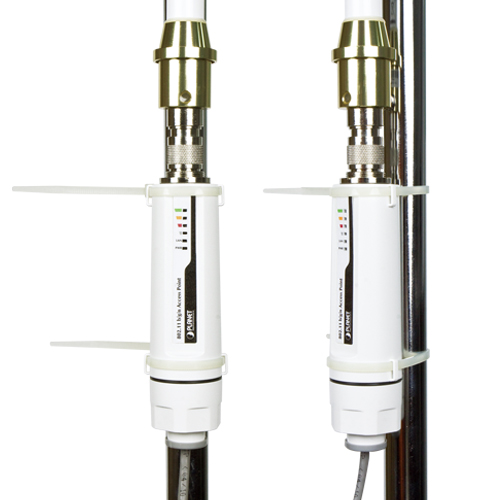

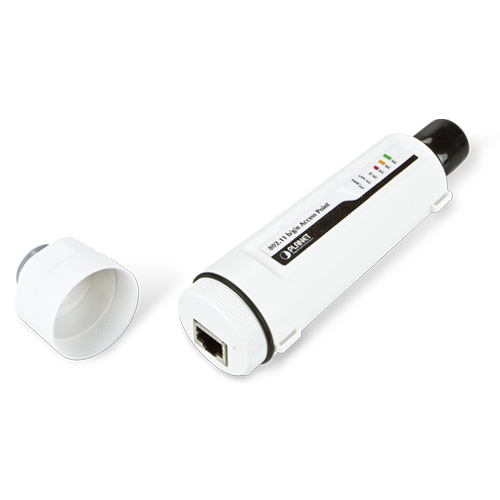

To accomplish the concept of Plug-n-Link through an easy way for outdoor wireless network deployment, the WNAP-6308 comes with a built-in N-type antenna connector, which is commonly adapted to an outdoor antenna. Therefore, it is easier to install via directly plugging into the mounted antenna. This gives the user the convenience of constructing the wireless link in a fast manner even though he has no experience in deploying a wireless network. Moreover, using the straps through the extra ring design on the casing can fasten the WNAP-6308 to prevent from shaking or dropping caused by strong wind and earthquake.
| | |

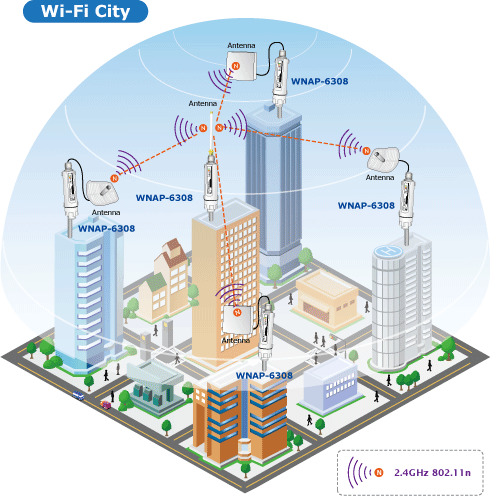

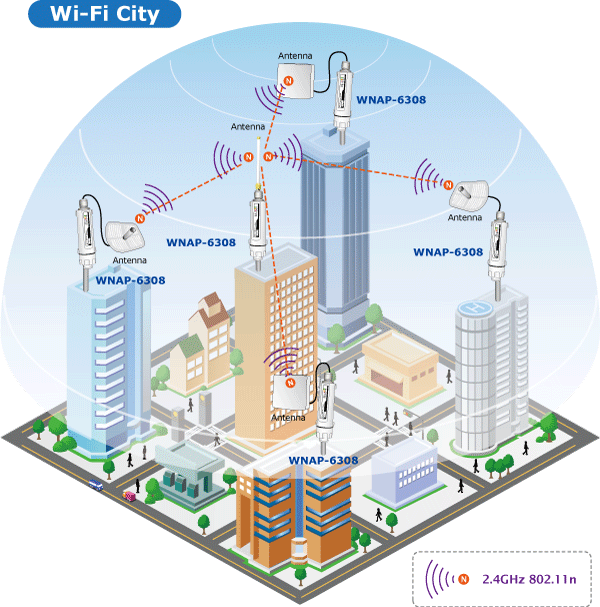

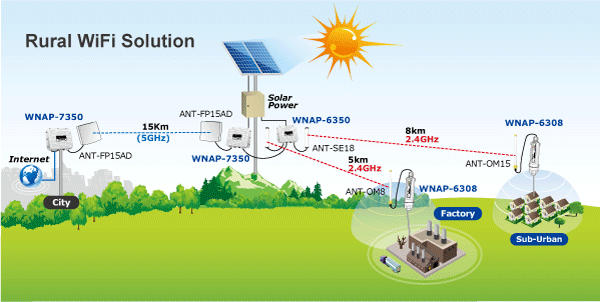

Perfect Outdoor Wireless Applications
The WNAP-6308 is a cost-effective outdoor wireless solution for widely open space applications. It is ideal for outdoor wireless connections between buildings. With the built-in N-type antenna connector, the WNAP-6308 brings longer coverage and various applications in wireless network. The WNAP-6308 can optionally be attached to higher gain antenna or a specific type of antenna for different applications. In addition, the WNAP-6308 provides high output power with multiply adjustable Tx controller, which allows CPE users to easily install and adjust the suitable value in appropriate locations.
| | | | | | | **Sincerely suggest matching the same model in outdoor wireless bridge application for getting the best performance. | | |
Industrial Compliant Wireless LAN & LAN- Compliant with IEEE 802.11n wireless technology capable of up to 150Mbps data rate
- Backward compatible with 802.11b/g standard
- Equipped with 10/100Mbps RJ-45 LAN Port, Auto MDI / MDI-X supported
Fixed-network Broadband Router- Supported connection types: Dynamic IP / Static IP / PPPoE / PPTP / L2TP / IPSec
- Supports Virtual Server, DMZ for various networking applications
- Supports DHCP Server, UPnP, Dynamic DNS
RF Interface Characteristics- Built-in N-type Male Antenna Connector
- High Output Power up to 200mW with multiply adjustable transmission power control
Outdoor Environmental Characteristics- IP55 Protection, UV Resistance
- Passive Power over Ethernet design
- Operating Temperature: -35 ~ 65 degrees C
Multiple Operation & Wireless Mode- Multiple Operation Modes: Bridge, Gateway, WISP
- Multiple Wireless Modes: AP, Client CPE (WISP), WDS PtP, WDS PtMP, Repeater
- Supports Dual-SSID allowing users to access different networks through one single AP
- Supports WMM (Wi-Fi Multimedia)
Secure Network Connection- Supports Software Wi-Fi Protected Setup (WPS)
- Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES), and 802.1x Authentication
- Supports NAT firewall features, with SPI function to protect against DoS attacks
- Supports IP / Protocol-based access control and MAC Filtering
Easy Installation & Management- Web-based UI and Quick Setup Wizard for easy configuration
- Remote Management allows configuration from a remote site
- SNMP-based management interface
- System status monitoring includes DHCP Client, System Log
| | |
| 硬件特性 |
| 硬件特性 |
IEEE 802.11b/g/n Wireless LAN
IEEE 802.11i Wireless Security
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3x Flow Control
|
| Memory |
32 Mbytes DDR SDRAM
8 Mbytes Flash
|
| 端口 |
Wireless IEEE 802.11b/g/n, 1T1R
LAN / WAN: 1 x 10/100Base-TX, Auto-MDI / MDIX
|
| 天线 |
Built-in N-type (Male) Antenna Connector |
| 无线RF特性 |
| 无线技术 |
IEEE 802.11b/g
IEEE 802.11n
|
| 数据传输速率 |
IEEE 802.11b: 11, 5.5, 2 and 1Mbps
IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
IEEE 802.11n (20MHz): up to 72Mbps
IEEE 802.11n (40MHz): up to 150Mbps
|
| Media Access Control |
CSMA / CA |
| 调制 |
Transmission/Emission Type: DSSS / OFDM
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM,
DBPSK, DQPSK, CCK
|
| 频段 |
2.412GHz ~ 2.484GHz |
| 操作信道 |
America/ FCC: 2.414~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.484GHz (14 Channels)
|
| RF Output Power (Max.) |
IEEE 802.11b/g: 23 1.5dBm
IEEE 802.11n: 23 1.5dBm
|
| 接收器灵敏度 |
IEEE 802.11b/g: -95dBm
IEEE 802.11n: -91dBm
|
| Output Power Control |
3~23dBm |
| 软件特性 |
| LAN端口 |
Built-in DHCP Server supporting static IP address distributing
Supports 802.1d STP (Spanning Tree)
|
| WAN端口 |
? Static IP
? Dynamic IP
? PPPoE
? PPTP
? L2TP
? IPSec
|
| 操作模式 |
? Bridge
? Gateway
? WISP
|
| 防火墙 |
NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT Server supporting Virtual Server and DMZ
Built-in Firewall with Port / IP Address / MAC / URL Filtering
|
| 无线工作模式 |
? AP
? Client
? WDS PTP
? WDS PTMP
? WDS Repeater (AP+WDS)
|
| 信道频宽 |
20MHz / 40MHz |
| 无线隔离 |
Enables isolation of each connected wireless client from communicating with each other mutually |
| 加密类型 |
64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X |
| 无线安全 |
Wireless LAN ACL (Access Control List) Filtering
Wireless MAC Address Filtering
Supports WPS (Wi-Fi Protected Setup )
Enable / Disable SSID Broadcast
|
| Multiple SSID |
Up to 2 |
| 最大 无线客户端 |
20 |
| Max. WDS AP |
8 |
| 最大.有线客户端 |
30 |
| WMM (Wi-Fi Multimedia) |
Yes |
| QoS (Quality of Service) |
Yes |
| NTP(Network Time Management) |
Yes |
| 管理 |
Web UI, DHCP Client, Configuration Backup & Restore, Dynamic DNS, SNMP |
| 诊断工具 |
System Log, Ping Watchdog |
| Mechanical & Power |
| IP 速率 |
IP55 |
| 材质 |
Outdoor UV Stabilized Enclosure |
| 尺寸 |
45 x 169 mm |
| 重量 |
128g |
| 设备 |
Pole mounting |
| 电源要求 |
LAN: 12~24V DC, Passive PoE
? ?Pin 4,5 V DC+
? ?Pin 7,8 V DC-
|
| 功率损耗 |
1.5W |
| 环境与认证 |
| 工作温度 |
-35 ~ 65 degrees C |
| 工作湿度 |
5 ~ 90% non-condensing |
| 法规 |
CE / FCC / RoHS |
| 配件 |
| 标准配件 |
? Passive PoE Injector & Power Cord x 1
? Plastic Strap x 2
? Quick Installation Guide x 1
? CD (User�s Manual, Quick Installation Guide) x 1
|
