ADN-4101

150Mbps 802.11n Wireless ADSL 2/2+ Router

概述
应用场景
功能特性
产品规格
下载
相关产品

Improved Networking Function for Future IP Compatibility

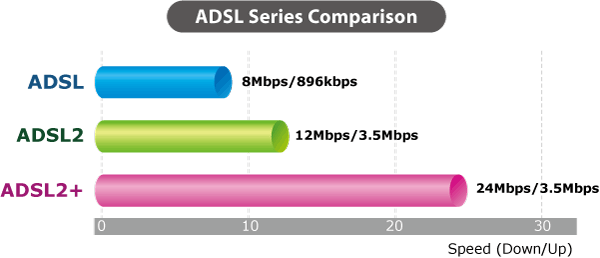

PLANET ADN-4101 is a Wireless ADSL 2/2+ Router compliant with 802.11n and features 1T1R MIMO antenna technology. The ADN-4101 is the ideal solution for office and residential users to share a high-speed ADSL 2/2+ broadband Internet connection and four-10/100Mbps Fast Ethernet backbone. It can support transmission rates up to 24Mbps downstream and 3.5Mbps upstream with ADSL 2+ support. The ADN-4101 supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 2684 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516), and IPoA (RFC1483) to establish a connection with ISP.

High-Speed 802.11n Wireless Type
With built-in IEEE 802.11b/g and 802.11n wireless network capabilities, the ADN-4101 allows any computer and wireless-enabled network device connecting to it without additional cabling. With an 802.11n compatible wireless card installed on your PC, any file can be transferred in the highest speed up to 150Mbps. The radio coverage is also doubled than before, which offers the high speed wireless connection even in your widely spacious office or house

One-touch Secure Wireless Connection

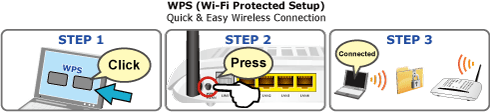

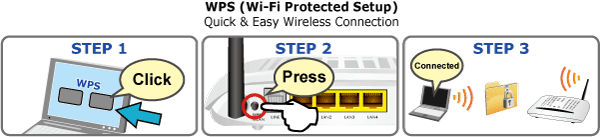

To secure the wireless communication, the ADN-4101 features the most up-to-date encryptions, such as WEP, WPA-PSK and WPA2-PSK. The ADN-4101 also supports WPS configuration with PBC/PIN type for users to easily connect to a secured wireless network with no need of complicated settings.

Powerful Firewall and Complete Access Control Functions
The ADN-4101 has user-friendly management interfaces to enable to be managed by workstations running standard web browsers. It provides DHCP server, NAT, Virtual Server, DMZ, Access Control, IP Filter, DDNS, and UPnP capabilities. The ADN-4101 also serves as an Internet firewall to protect your network from being accessed by unauthorized users. It offers the natural firewall function. All the incoming and outgoing IPs can be monitored and filtered. For the advanced application, it even can block internal users accessing to the Internet services.

Internet Access Features

Shared Internet Access
All users in the LAN can access the Internet through the ADN-4101 with using a single external IP Address. The local (invalid) IP Addresses are hidden from external sources. This process is called NAT (Network Address Translation).
Built-in ADSL 2/2+ Modem
The ADN-4101 provides ADSL 2/2+ modem service and supports all common ADSL connections.
PPPoE, PPPoA, Direct Connection Support
Various WAN connections are supported by the ADN-4101.
Fixed or Dynamic IP Address
With the Internet (WAN port) connection, the ADN-4101 supports both Dynamic IP Address (IP Address is allocated on connection) and Fixed IP Address.

Advanced Internet Functions

Virtual Servers
This feature allows Internet users to access Internet servers on your LAN. The required setup is quick and easy.
DMZ Support
The ADN-4101 can translate public IP addresses into private IP address and allow unrestricted 2-way communication with servers or individual users on the Internet. This provides the most flexibility to run programs which could be incompatible in NAT environment.
Firewall
The ADN-4101 supports simple firewall with NAT technology and provides options for access control from Internet like Telnet, FTP, TFTP, HTTP, SNMP, and ICMP services. It also supports IP/ MAC/ Application/ URL filtering.
Universal Plug and Play (UPnP)
UPnP allows automatic discovering and configuration of the Broadband Router. UPnP is supported by Windows ME, XP, or later.
Dynamic DNS Support
Based on the Virtual Servers feature, the ADN-4101 allows users to connect a server to the LAN by using a Domain Name even if you have a dynamic IP address. The ADN-4101 supports Planet Dynamic DNS that it is free for customers.
RIP Routing
It supports RIPv1/2 routing protocol for routing capability.
Simple Network Management Protocol (SNMP)
It is an easy way to remotely manage the router via SNMP.

LAN Features

4-port Switch
The ADN-4101 incorporates a 4-port 10/100Base-TX switching hub, making it easy to create or extend your LAN.
DHCP Server Support
Dynamic Host Configuration Protocol provides a dynamic IP address to PCs and other devices upon request. The ADN-4101 can act as a DHCP Server for devices on your local LAN and WLAN.

Wireless Features

Supports IEEE 802.11b, g and 802.11n Wireless Standard
The 802.11n standard provides backward compatibility with the 802.11b and 802.11g standard, so 802.11b, 802.11g, and 802.11n compliant devices can be used simultaneously.
802.11n Technology

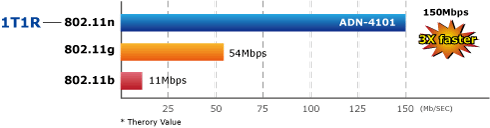

The ADN-4101 complies with IEEE 802.11n wireless technology standard and provides data rate up to 150Mbps. It provides farther coverage, less dead spaces and higher throughput.
WEP Support
WEP (Wired Equivalent Privacy) is included. Key sizes of 64 bit and 128 bit are supported.
WPS Push Button Control
The ADN-4101 supports WPS (Wi-Fi Protected Setup) for users to easily connect to wireless network without configuring the security.
WPA-PSK Support
WPA-PSK_TKIP and WAP-PSK_AES encryption are supported.
Wireless MAC Access Control
The Wireless Access Control feature can check the MAC address (hardware address) of Wireless stations to ensure that only trusted Wireless Stations can access your LAN.

硬件
标准	Compliant with ADSL Standard - Full-rate ANSI T1.413 Issue 2 - G.dmt (ITU G.992.1) - G.lite (ITU G.992.2) - G.hs, Multimode (ITU G.994.1) Capable of ADSL2 Standard - G.dmt.bis (ITU G.992.3) Capable of ADSL 2+ Standard - G.dmt.bisplus (ITU G.992.5) - Reach Extended ADSL (RE ADSL) Supports Annex A, B, M, L
协议	RFC 2364 - PPP over ATM (LLC/VCMUX) RFC 2516 - PPP over Ethernet (LLC/VCMUX) RFC 1483 - Classic IP over ATM (LLC/VCMUX) RFC 2684 - Bridged IP over ATM (LLC/VCMUX) RFC 2684 - Routed IP over ATM (LLC/VCMUX)
支持AAL 和 ATM	Supports up to 8 PVCs ATM Forum UNI 3.1/4.0 PVC VC and LLC Multiplexing Integrated ATM AAL5 support (UBR,CBR,VBR-rt, and VBR-nrt) 0~255 VPI plus 1~65535 VCI address range OAM F4 & F5 Segment end-to-end loop-back, AIS, and RDI OAM cells

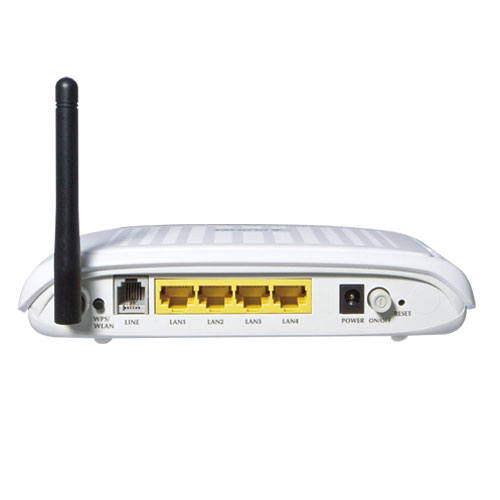

端口	LAN 4 x Ethernet (10/100Mbps, Auto-Negotiation, Auto MDI/MDI-X) WLAN 1 x 802.11b/g/n Access Point with one 2dBi dipole antenna WAN 1 x RJ-11
LED 指示灯	PWR, Link, Data, LAN 1~4, WLAN, WPS
按钮	WLAN, Reset, WPS, Power
最大并发会话	2048
无线标准	IEEE 802.11b, 802.11g and 802.11n
无线频率	2.4 to 2.4835GHz (Industrial Scientific Medical Band )
无线频道	Maximum 14 Channels, depending on regulatory authorities
无线数据加密	64 bit / 128 bit WEP, WPA-PSK / WPA2-PSK, and WPS PBC
无线数据传输速率	Maximum up to 150 Mbps IEEE 802.11b 1/2/5.5/11Mbps IEEE 802.11g 6/9/12/18/24/36/48/54Mbps IEEE 802.11n 20MHz 14/29/43/58/87/116/130/144Mps IEEE 802.11n 40MHz 30/60/90/120/150Mbps
RF调制	IEEE 802.11b mode: DSSS (CCK, QPSK, BPSK) IEEE 802.11g mode: OFDM (BPSK, QPSK, 16QAM, 64QAM) HT20 and HT40: 64 QAM, 16QAM, QPSK, BPSK
发射功率	11b: 16.5dBm � 1.5dBm 11g: 14dBm � 1.5dBm 11n HT20M:13dbm � 1.5dBm 11n HT40M: 13dbm � 1.5dBm
接收器灵敏度	802.11b: < -80dBm 802.11g: < -68dBm 802.11n HT20M: < -64dbm 802.11N HT40M: < -61dbm
软件
协议/功能	NAT supports multimedia applications NAT, Static Routing, and RIPv1/2 Transparent Bridging Dynamic Domain Name System (DDNS) SNTP DNS relay and IGMP proxy DMZ and Virtual Server Quality of Service (QoS) for Traffic Prioritization TR-069 Ready UPnP
安全	PPP over PAP (Password Authentication Protocol, RFC1334) PPP over CHAP (Challenge Authentication Protocol, RFC1994) DoS Protection Access Control ACL (Access Control) IP/MAC/Application/URL Filter Stateful Packet Inspection (SPI) Firewall Password protection for system management
管理	Web-based configuration Embedded Telnet server for remote and local management Firmware upgraded and configuration data upload/download via WEB SNMP v1/v2c MIB supported Support DHCP Server/Client/Relay Built-in Diagnostic tool TR-069
环境产品规格
尺寸 (W x D x H)	176 x 124 x 35 mm
电源	12V DC, 0.8A
温度和湿度	Operating temperature: 0 ~ 50 degrees C Storage temperature: -10 ~ 70 degrees C Humidity: 10 ~ 95% non-condensing
认证	FCC, CE

订购信息
ADN-4101	802.11n Wireless ADSL 2/2+ Router
