Make Advertising Effective and Easy

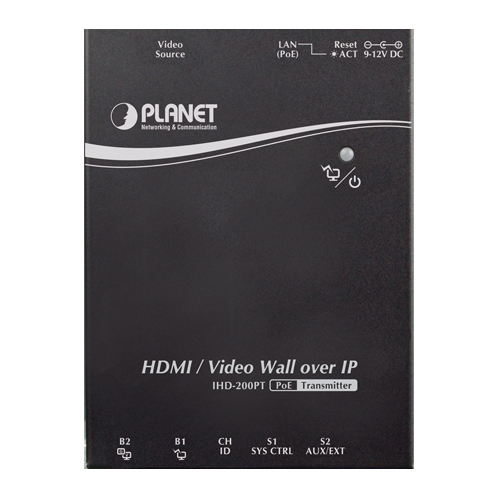

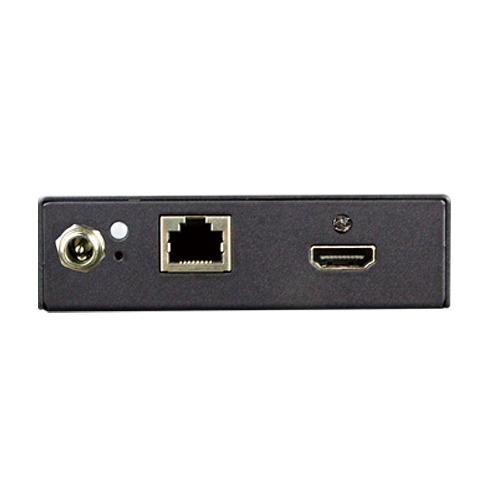

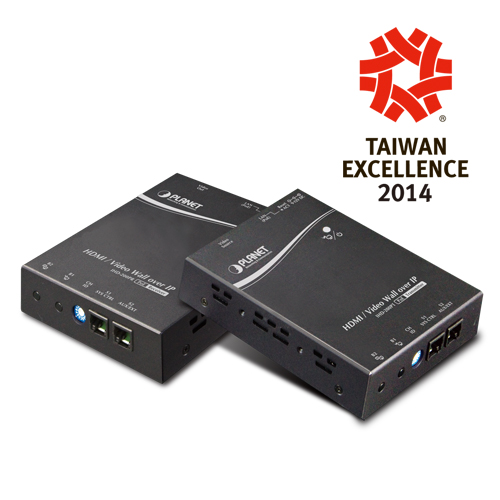

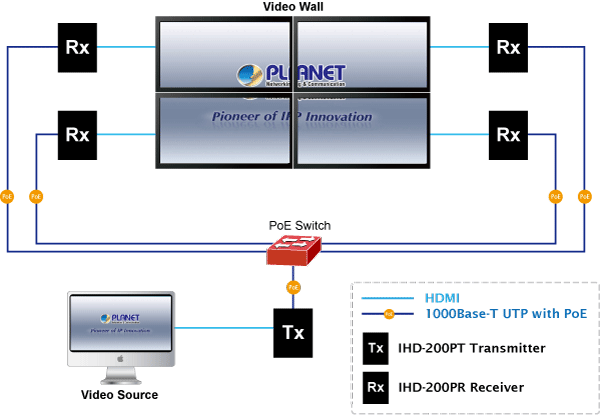

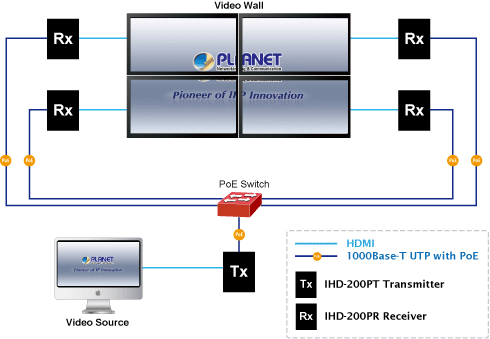

PLANET IHD-200 HDMI / Video Wall over IP with PoE delivers a great HD video distribution solution such as bringing an efficient and effective advertising deployment. The IHD-200 PoE series is the combination of the transmitter, IHD-200PT, and the receiver, IHD-200PR. They allow you to simultaneously send out a HDMI signal to one or more HDMI displays over a single Cat5/5e cable (or above) in the Ethernet infrastructure. Besides, by supporting PoE function, meaning there is no additional power supply needed, the IHD-200 PoE series thus reduces the complexity of cable installation. |
| |

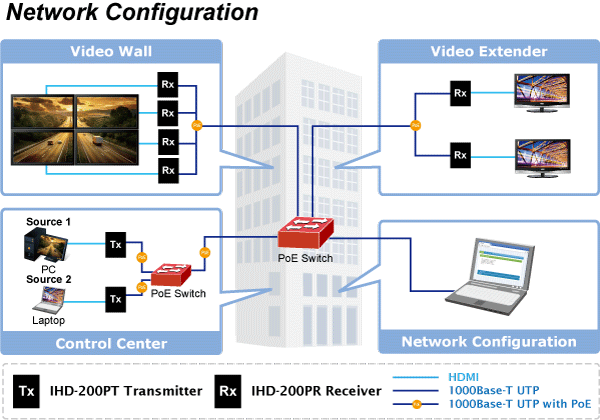

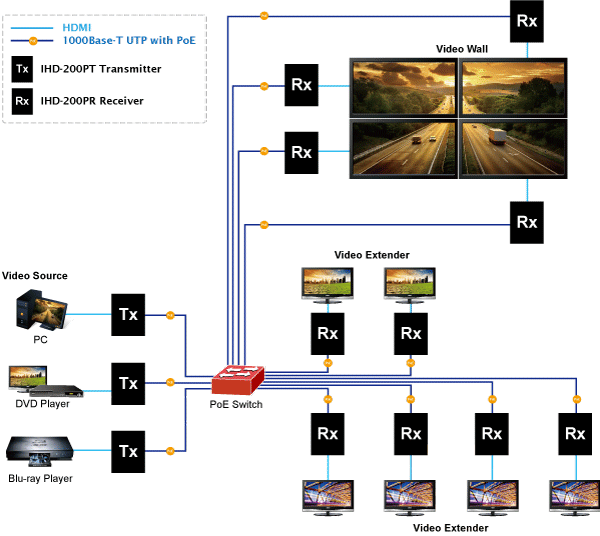

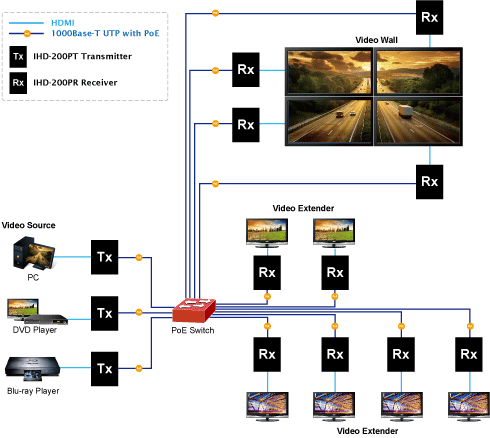

| The IHD-200 PoE series can distribute HD digital content from multiple sources to practically any number of remote displays on a LAN and deliver ultra high quality 1080p HDMI video broadcast over IP network. It not only offers smooth vivid 1080p full motion video with audio quality as CD, but also ensures the sharp images and text giving the viewers the maximum visual effect and ease of reading. By cascading multiple Ethernet switches as the backbone of the IHD-200 PoE series, it allows displays to be distributed far away from the source devices while sustaining consistent 1080p video and audio quality. The video sources can be rack centralized, decentralized or even a mixture of both. It thus increases the flexibility, scope and scalability of audio and video distribution via the Ethernet networks. |
| |

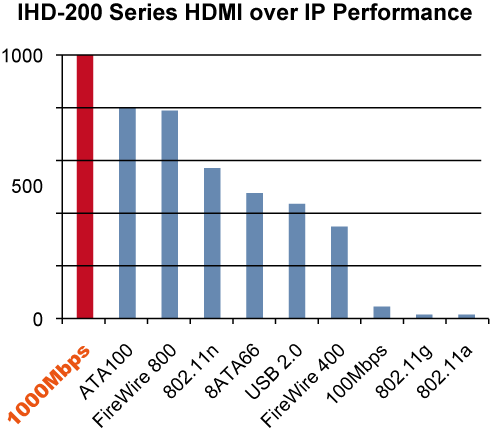

High-speed Video Distribution via Gigabit LAN

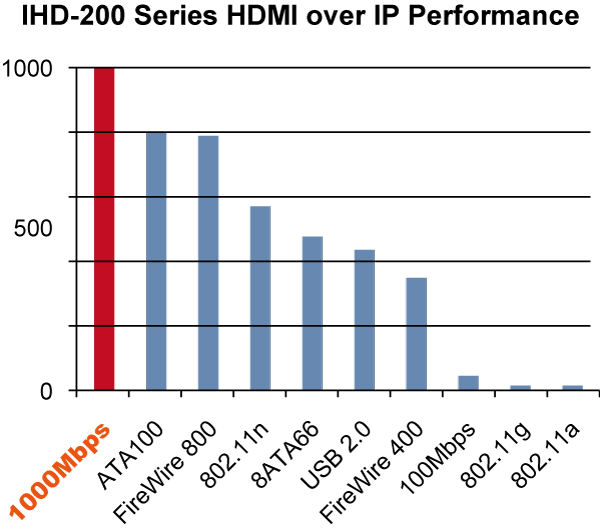

The IHD-200 PoE series is a perfect solution for audio and video signal extension via the existing LAN. Designed with Gigabit LAN interface, it supports super high speed transmission, which makes it ideal for live presentations, public broadcasting, education training, boardrooms, etc. |
| |
|
| |

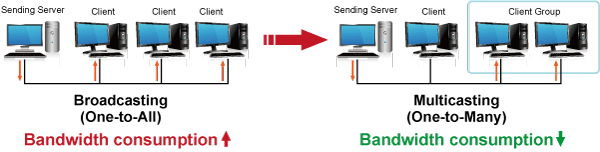

Exclusive Video Transmission by IGMP Multicast Technology

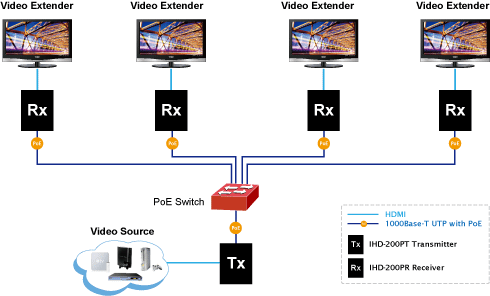

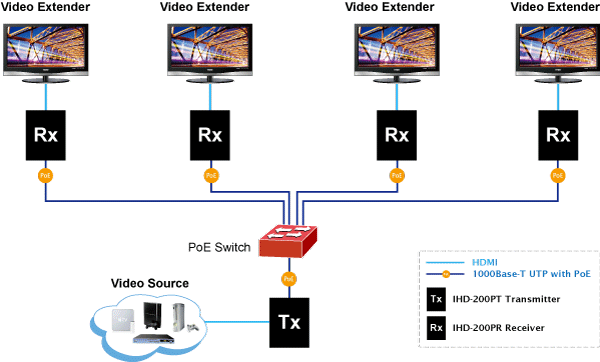

One IHD-200PT in local site can drive multiple IHD-200PRs in remote sites without consuming extra network loading. Integrated with Gigabit switch built-in with IGMP multicast functions, there are 16 channels selectable via the IHD-200 PoE series and up to 4 channels can be transmitted simultaneously. IGMP is an integral part of IP multicast and a communications protocol used by hosts and adjacent routers on IP networks to establish multicast group memberships. IGMP can be used for one-to-many networking applications such as online streaming video and gaming, and allows exclusive transmission and more efficient use of resources. |
| |
|
| |

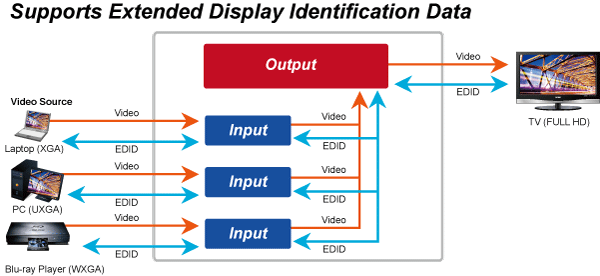

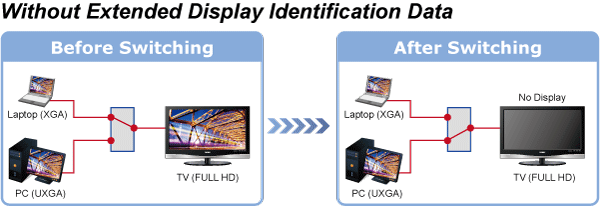

Extended Display Identification Data (EDID) Support

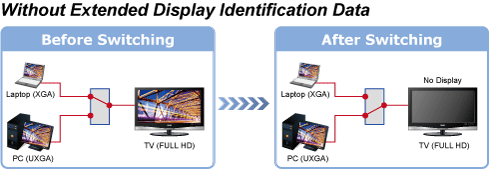

The IHD-200 PoE series adopts EDID (Extended Display Identification Data) COPY function to make smooth video distribution over different types of display units. EDID is greatly important as it contains information about resources manufacturer names, serial numbers, product types, maximum image sizes, color characteristics, factory pre-set timings, frequency range limits, etc. In some cases, display problems may occur due to incorrect EDID communication between the display monitor and the transmitting unit or inappropriate EDID data programmed by display manufacturers. Therefore, with EDID COPY function, the IHD-200 PoE series allows the system to copy EDID information from EDID compliant displays and assures accurate display performance. |
| |
|
| |
|
| |

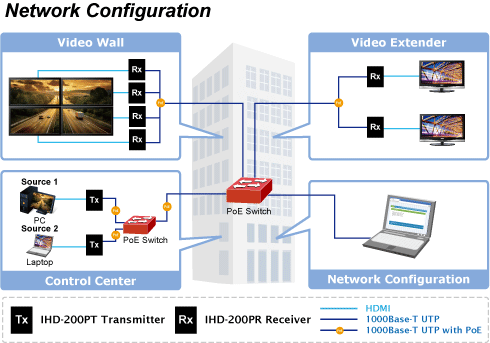

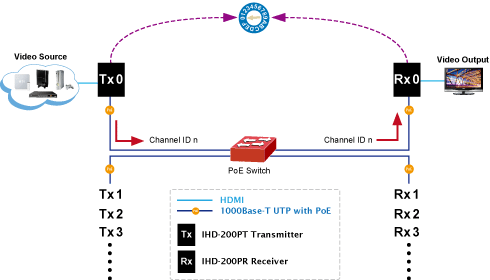

Easy Video Channel Matching through Network Configuration

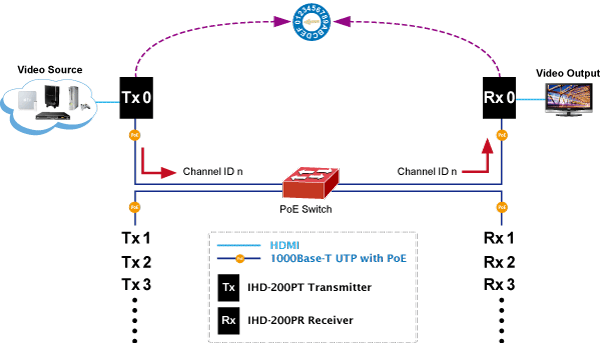

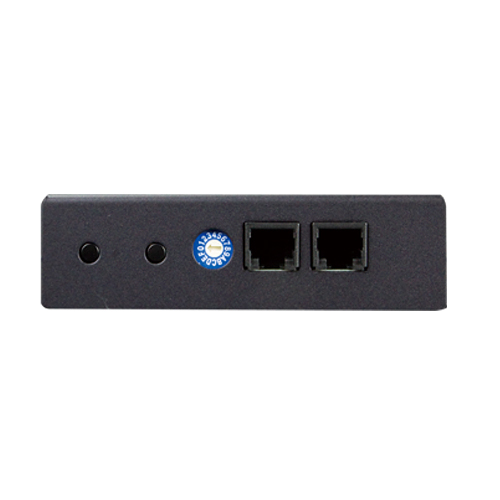

The IHD-200 PoE series network can be configured by a central computer over the same LAN within a certain distance. Fully leveraging the mature Gigabit Ethernet with 802.1Q VLAN function, multi-casting can be performed to allow more video sources/senders in the network and be remotely managed. Just adjust and match video channel setting with the simple DIP switch in both the IHD-200PT and IHD-200PR. The video distribution is easily deployed through Plug and Play. |
| |
|
| |
High-quality Output and Performance
The IHD-200 PoE series supports Full HD 1080p, HDCP and blu-ray quality, which have been commonly used for applications that require real-time high video resolution and transmission in long distance. It also contains security and noise immunity as well as HDMI with 2-ch. audio (dts.) functions to offer the superior video distribution. |
| |
|
| |
