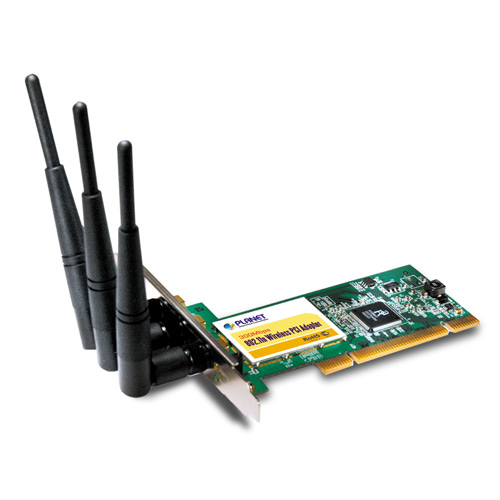

802.11n Wireless PCI Adapter |
| 链接端口 |
Compatible with PCI v2.1 / 2.2 standard |
| 标准一致性 |
Compliant with 802.11b / 802.11g / 802.11n (draft 2.0) |
| LED指示灯 |
LINK / ACT |
| RF调制 |
802.11b : DSSS, CCK, QPSK, BPSK
802.11g : OFDM
802.11n : 64QAM, 16QAM, QPSK, BPSK |
| RF输入功率 |
18dBm (max.)
|
| 数据传输速率 |
802.11n : Up to 300Mbps
802.11g : 54, 48, 36, 24, 18, 12, 9 and 6Mbps with auto-rate fall back
802.11b : 11, 5.5, 2, and 1Mbps with auto-rate fall back |
| 工作模式 |

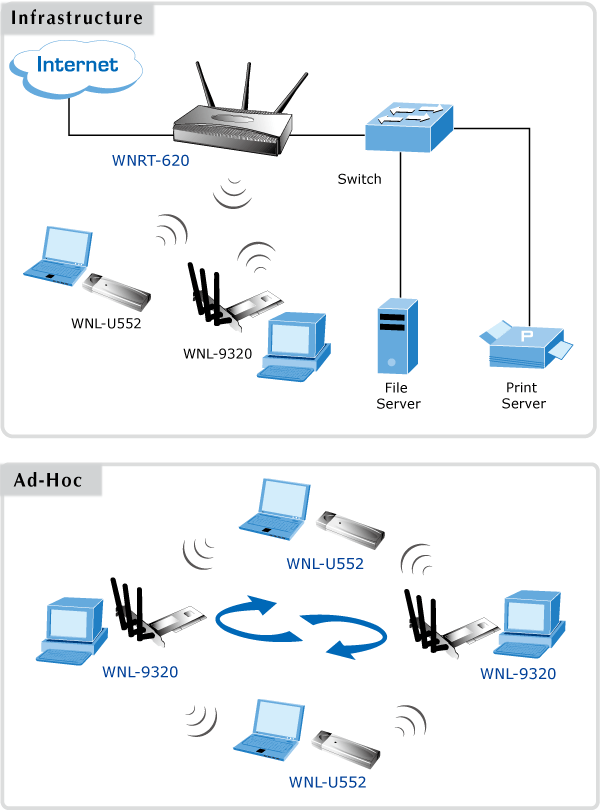

Ad-Hoc, Infrastructure
|
| 介质访问协议 |
CSMA / CA + ACK (Half-Duplex) |
| 安全 |
WEP 64/128 bit, WPA, WPA2, WPS |
| 天线 |
External 3 Antennas with 2 TX and 3 RX (Connector: RP-SMA) |
| 灵敏度 |
IEEE802.11b:
1Mbps (QPSK): -91.5dBm
11 Mbps (QPSK): -88dBm
IEE802.11g:
54Mbps (64QAM): -90dBm
6Mbps (BPSK): -77.6dBm
IEE802.11n:
HT20Mbps:?MCS0? -89.1dBm
??????MCS7? -72.3dBm
??????MCS8? -88.5dBm
??????MCS15?-68.6dBm
HT40Mbps:?MCS0 ?-86.5dBm
??????MCS7 ?-69.2dBm
??????MCS8 ?-85.4dBm
??????MCS15?-66.3dBm |
| 工作频率/信道 |
2.412~2.462GHz (FCC, Canada) / 11 Channels
2.412~2.4835GHz (Japan, TELEC) / 14 Channels
2.412~2.472GHz (Euro ETSI) / 13 Channels |
| 操作系统 |
Windows 2000 / XP / VISTA |
| 尺寸 |
132 x 120 x 22mm
|
| 温度 |
Operating Temperature : 0~55 degrees C
Storage Temperature : -20~80 degrees C |
| 湿度 |
< 90% (non-condensing) |
| 管理 |
Built-in utility or Windows XP Zero Configuration utility |
| 磁兼容性 |
FCC, CE |
