PLANET Unified Office Gateway series provides a total IT solution for the small and medium businesses (SMBs). It is integrated with commonly used office appliance features and provides Internet access, IP PBX, Fax / E-mail server, and data storage in one device. The UMG-2000 is the first model of PLANET Unified Office Gateway series and is equipped with built-in a 24-port Fast Ethernet plus 2-port Gigabit Ethernet switch, wireless access point, and 4-port FXO. It allows you to connect to various Internet and telephone carriers.
Via the 4-port FXO interface, the UMG-2000 provides a feature-rich IP PBX system that supports seamless communications between existing PSTN calls, analog, IP phones and SIP-based endpoints. Branch-to-Branch secured network and call features bring your remote offices together. The UMG-2000 facilitates sharing files safely between multiple office locations through secure channels. For VoIP functions, the users can call any extension from any remote location without paying local or long distance charge. Smart Wizard automatically adjusts your configuration and guides you through initial setup. The administrator can easily manage user accounts with privilege and access control.
In the storage feature, the storage volumes can be created for individual users and groups within the corporate. The UMG-2000 can also as Web and E-mail servers that are able to be set up with one mouse click. It provides schedule automated snapshot and backup tasks to prevent data loss. Besides the above functions, the extensive features include DMZ support, VoIP call control and Call Detail Record (CDR), Least Cost Routing (LCR), Busy Lamp Field (BLF), and Bridged Line Appearance (BLA), configuration backup and restore, secure remote management capabilities, and many more.
For more information, view product video on Youtube.

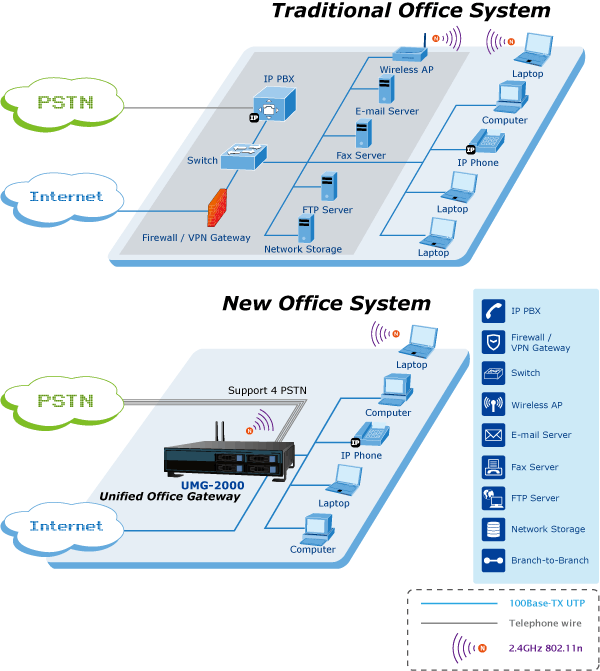

Highly Integrated IT Services
Providing IP PBX / VoIP, Internet Security, E-mail / Fax Server, Switch, Wireless AP, and Network Storage service, the UMG-2000 features single point of management to improve IT service ability.
The UMG-2000 beneficially provides the SMBs with lower cost of ownership, quick and easy deployment, low noise, space saving and energy conservation for better business environment.

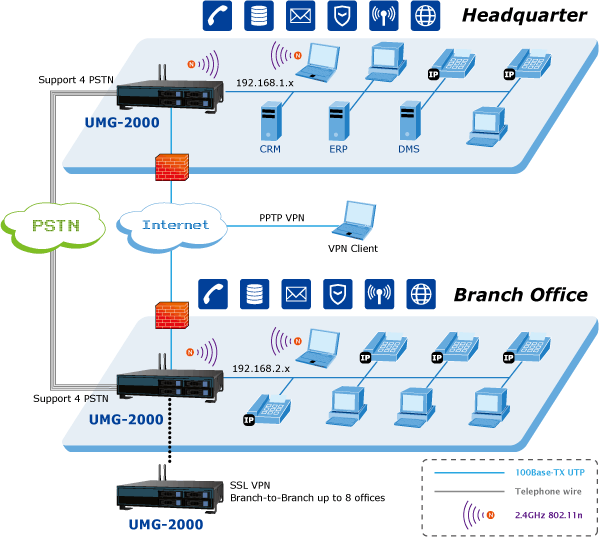

Office Voice and Data Communication
The exchange of business data and voice with high security and superior performance is in great demand. The Unified Office Gateway UMG-2000 meets the requirements. A secure channel based on SSL VPN is built for data synchronization. A private voice switching system helps to avoid local or long distance charges by exchanging voice via a secure Internet tunnel. Additionally, web-based remote management makes it possible to manage all IT resources in your branches without leaving your own office. The UMG-2000 supports Branch-to-Branch voice and data communication up to 8 offices.
IP PBX / VoIP Service
• SIP 2.0 (RFC3261)
• PSTN Support
• Call-Parking, Echo Cancellation
• FXO Disconnection Tone Detection
• QoS Support
• Music on Hold and Upload Music Files for MoH
• Telephone Conference, 3-Way Calling
• Voicemail to E-mail
• Forwards to Voicemail on No-Answer
• Supports Call Hold, Call Waiting
• Blacklist of Number Patterns
• Call Privilege Control, Call Log
• 450 Minutes Recording Time
• Unconditional, Unavailable, Busy Call Forward
• Fax Server Support
• Multiple SIP Trunk Support
• Upload Sound Files for IVR
• Least Cost Routing (LCR)
• Busy Lamp Field (BLF)
• Bridged Line Appearance (BLA)
E-mail Service
• Supports POP3, SMTP, IMAP
• Secured Socket Layer (SSL)
• Junk Mail Filtering
• E-mail Storage Quota
• E-mail Alias Group Assignment
• Mail Attachment Size Restriction
• User E-mail Storage Quota
• E-mail Log Record Management
• Anti-Virus and Anti-Spam
• Auto Backup, Auto Reply
• E-mail White and Black list Based on Domain
• Name, User Name, and E-mail Address
• Supports Web Mail
• Supports Mail Service via DDNS
Internet Security Service
• Static IP, PPPoE, DHCP, PPTP, L2TP
• Web Content Filter by Domain and Keyword
• Access Control List (ACL)
• URL / IM / P2P Blocking
• Firewall / NAT
• IPSec / PPTP / L2TP Pass-through
• DoS Attack Protection (TCP SYN Flood, UDP Flood, ICMP Flood, Ping of Death)
• UPnP and DMZ
• Site-to-Site SSL VPN
• PPTP VPN Remote Access
• RIP / Static Route
• IP-MAC Binding
Network Storage Service
• RAID 0, 5, 10, and JBOD
• Up to 4TB Hot-swap Disk Array
• Supports User Network Storage Quota
• Compatible Windows 2000 / XP / Vista, Mac, Linux
• Scheduled Auto Backup, Auto Snapshot
• Supports User / Group Privilege ACL
System Management
• Single Point of Management
• System Logging with E-mail Alert
• Fast Recovery with Remote Service
• Environment Monitoring
• Dynamic Domain Name Services (DDNS)
• Multiple Domain Name Support
• Multiple Hostname Support
WiFi Service
• 1 x 802.11b/g/n Wireless Access Point
• 2 x RP-SMA Detachable Antenna
• Security: WEP / WPA / WPA2
• SSID
• Wireless 802.1x Authentication
24+2G Switch Service
• IEEE 802.1d Spanning Tree
• IGMP Snooping
ç¡¬ä»¶è§„æ ¼

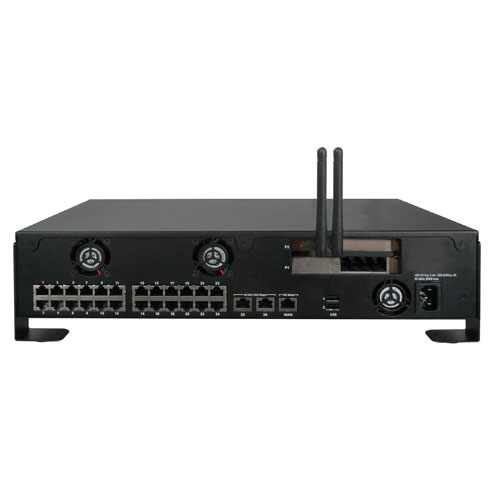

Case
2U high Rack or Desk
WAN
1 x RJ-45 (10/100Base-TX, Auto-Negotiation, Auto MDI/MDI-X)
LAN
2 x RJ-45 (10/100/1000Base-T, Auto-Negotiation, Auto MDI/MDI-X)
24 x RJ-45 (10/100Base-TX, Auto-Negotiation, Auto MDI/MDI-X)
支持SATA
4-Port SATA Controller (SATA I, SATA II Hard Disk)
硬盘
Hot-Swappable SATA Disk (4 x 80GB/160GB/250GB/500GB/1TB)
语音
4 x RJ-11 (4 x FXO)
无线
1 x 802.11b/g/n Wireless Access Point, 2 x RP-SMA Detachable Antenna
USB
2 x USB2.0 (future feature)
LED 指示灯
1 x PWR LED
1 x Internet LED
1 x PBX LED
1 x WLAN LED
1 x E-mail LED
1 x Firewall LED
1 x Alert LED
4 x Storage LEDs
1 x BTB LED
1 x FTX LED
26 x LAN LEDs
- Support call hold, call waiting, 3-way call conference with feature phones
- Built-in in-line call transfer
- Unconditional, unavailable, busy call forward, custom time of no answer
- Per-calling-number forward and rejection
- Group-based call pick-up
- Call-parking
- Inter-PBX SIP trunking
- Multi-room meet-me conference
- Auto-attendant
- Voice mail system
- Call privilege grouping
- FXO interface for PSTN Inbound/outbound
- FXO disconnection tone detection
- Caller ID detection
- In-band/RFC2833/SIP-INFO DTMF translation
- Music on hold (MoH), user upload MoH
- Direct line Outbound
- User upload IVR
语音信箱
- User PIN
- 450 minutes for personal record
- E-mail notification
- Personal reception on unavailability
- Reply call or new call in voicemail menu
E-mail
Protocol
- POP3,IMAP,SMTP, Web mail
Support accounts
- 250 users
Email Security
- Secured Socket Layer (SSL)
Anti-Virus
- ClamAV
Anti-Spam
Junk mail block
Mailbox size Limit
- 200M/500M/1G/2G/No Limit
Attachment
- 2M/5M/10M/20M/50M/No Limit
Block List
- Share/User/Domain security modes
Email Backup
- Auto-Backup
网络储存
RAID
- RAID 0, RAID 0/1, RAID 5, JBOD
Date Sharing
- Windows Network Sharing, NFSv3
