| 硬件特性 |
| 以太网端口 |
2 个10/100/1000Mbps RJ-45 端口（WAN/LAN） |
| 2 slots |
支持最大2组[FXO / FXS / GSM]（即8个口）或1个PRI / BRI 端口 |
| USB |
2 USB 2.0 Ports |
| Audio |
2 3.5mm Audio Jacks |
| VGA |
1 x DB15 VGA Interface |
| 协议与标准 |
| International Standard |

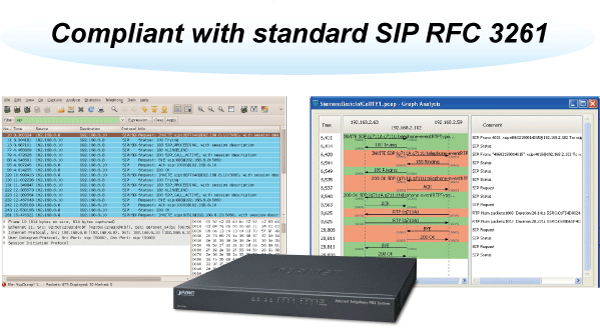

SIP 2.0 (RFC 3261), IAX2 |
| Protocol |
RFC 793 TCP RFC 826 ARP RFC 1034, 1035 DNS RFC 1631 NAT RFC 2068 HTTP RFC 2131 DHCP RFC 2516 PPPoE RFC 3261, RFC 3311, RFC 3515 RFC 3265, RFC 3892, RFC 3361 RFC 3842, RFC 3389, RFC 3489 RFC 3428, RFC 2327, RFC 2833 RFC 2976, RFC 3263 |
| 语音编码器 |
G.722 / G.711-Ulaw / G.711-Alaw / G.726 / G.729 / GSM / SPEEX |
| 视频解码器 |
H.261 / H.263 / H.263+ / H.264 |
| IP fax |
T.38 Fax (透传) |
| Voice Processing |
DTMF 检测和产生
内置 RFC 2833, SIP INFO
|
| Protocol |
SIP 2.0 (RFC 3261), TCP/IP, UDP / RTP / RTCP, HTTP, ICMP, ARP, DNS, DHCP, NTP/SNTP, PPP, PPPoE |
| 互联网共享 |
| Network Function |
DDNS客户端 (PLANET DDNS/Easy DDNS，DynDNS, Zone Edit, No IP/)
DHCP服务器 / SNMP v1/v2
IEEE 802.1Q VLAN
IP分配方式 (PPPoE / DHCP / Static)
IPv4 / IPv6
静态路由
联通测试 (Ping, Traceroute)

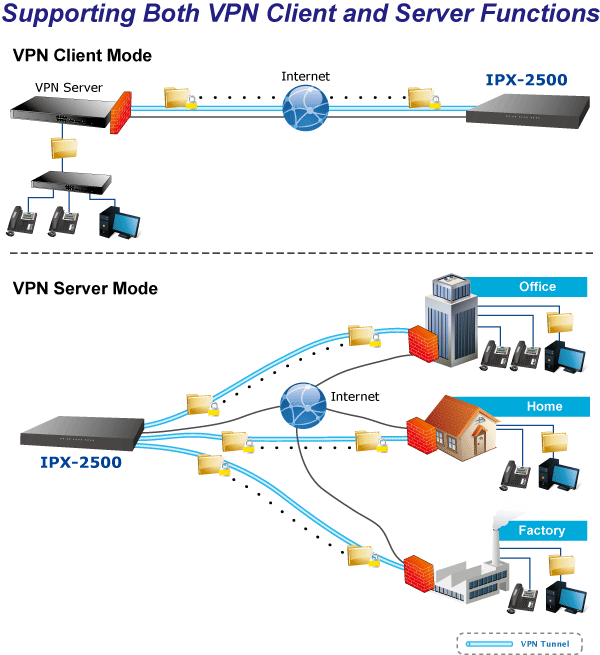

VPN 客户端 (支持N2N / L2TP / PPTP / OpenVPN)
VPN 服务器 (PPTP / L2TP / OpenVPN服务器) |
| Security Features |
Refuse SIP Register DoS
Refuse Abort Invite Dos
Refuse SSH Login DoS
Firewall / SRTP
|

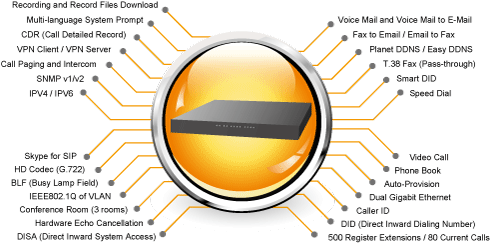

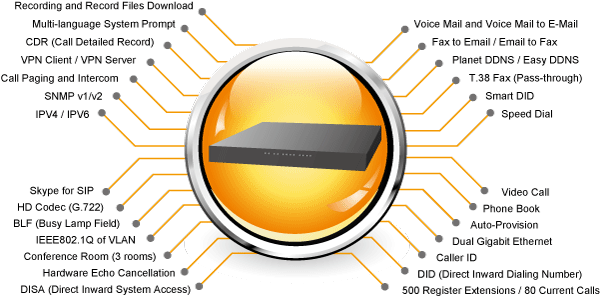

| 功能特性 |
| PBX功能 |
Black List
Busy Lamp Field (BLF)
Call Detail Record (CDR)
Conference Room (3)
Direct Inward Dialing (DID)
DISA
Do Not Disturb (DND) / Feature Code
Auto Attendant / Auto Provisioning
Interactive Voice Response (IVR)
Multi-language System Prompt
Multi-language GUI Management Interface
Phonebook / PIN Setting
Recording File Download
Ring Group / SIP Trunk
Support Skype SIP / Smart DID / System Log Function
T.38 Fax Pass-through / Time-based Rules

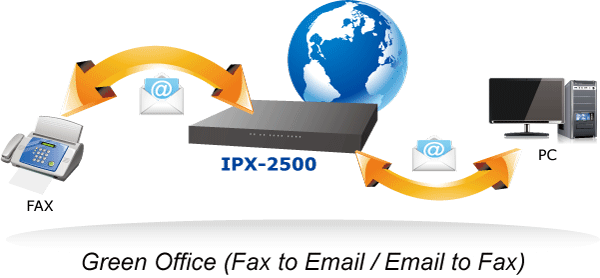

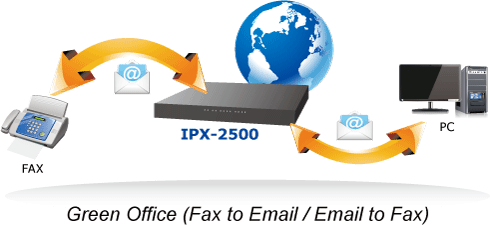

Virtual Fax / Voicemail to Email |
| Call Function |
Waiting Prompt Tone
Call Queue
Call Routing
Callback
Call Transfer / Park / Routing / Forward / Hold / Waiting
Call Group
Caller ID
Three-way Conference / Video Call |
| 系统容量 |
| System Capacity |
80路IP电话并发使用
最大支持管理500台IP话机
通话录音 (GSM / default): 2,500,000 minutes;
Wav: 210,000 minutes
语音留言(GSM / default):2,500,000 minutes;
Wav: 210,000 minutes
|
| 网络配置 |
| Access Mode |
静态IP, PPPoE, DHCP |
| LED 指示灯 |
SYS: 1, 联通/关闭
WAN: 1, 联通/关闭
LAN: 1, 联通/关闭
PWR: 1, 联通/关闭
FXO / GSM: 红色
FXS: 绿色
|
| 尺寸 (W x D x H) |
310 * 500 *90 mm |
| Operating Temperature |
-10~45 degrees C, 10~80% humidity |
| Power Requirement |
AC 100~240V, 50/60Hz, 1.5A max |
| Authentication Standard |
CE, FCC Class B, RoHS |
