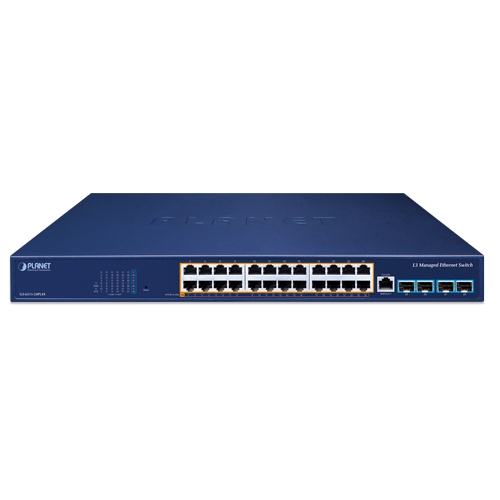

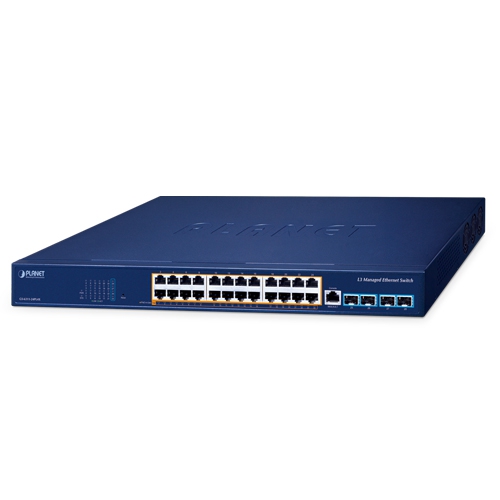

| Hardware Specifications |
| Copper Ports |
24 10/100/1000BASE-T RJ45 copper ports (Ports 1 to 24) |
| PoE Injector Port |
24 ports with 802.3af/802.3at PoE+ injector function (Ports 1 to 24) |
| 10G SFP+ Ports |
4 10GBASE-SR/LR SFP+ interfaces (Ports 25 to 28)
Backward compatible with 1000BASE-SX/LX/BX SFP transceiver |
| Console Port |
1 x RJ45-to-RS232 serial port (9600, 8, N, 1) |
| CPU |
RTL9301-CG |
| RAM |
4GB |
| Flash Memory |
32MB |
| ESD Protection |
Contact ±6KV , Air ±8KV |
| Surge Protection |
Differential mode ±2KV , Common mode ±4KV |
| Dimensions (W x D x H) |
440 x 330 x 44mm |
| Weight |
4542g |
| Power Consumption |
23.3 watts/ 79.5 BTU (System)
745.5 watts/ 2544.8 BTU (System + PoE) |

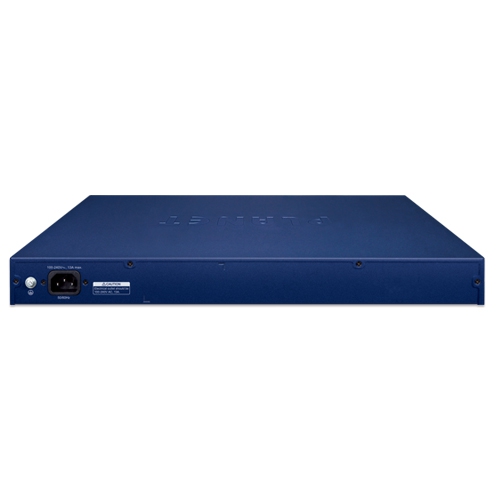

| Power Requirements- AC |
AC 100~240V, 50/60Hz |
| Fan |
4 |
| LED |
System:
PWR (Green), SYS (Green)
Ports:
LNK/ACT (Green)
PoE-in-Use (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-forward |
| Switch Fabric |
128Gbps/non-blocking |
| Switch Throughput |
95.23Mpps |
| Address Table |
16K MAC address table with auto learning function |
| ARP Table |
8K |
| Routing Table |
6K |
| IP Interface |
1024 |
| ACL Table |
2K |
| Shared Data Buffer |
12MB |
| Jumbo Frame |
12KBytes |
| Flow Control |
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex |
| Power over Ethernet Specifications |
| PoE Standard |
IEEE 802.3af/at PoE+ PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
32W (max.) |
| Power Pin Assignment |
1/2(-), 3/6(+) |
| PoE Power Budget |
720 watts (max.) |
| IPv4 Layer 3 Functions |
| IP Routing Protocol |
Static route
RIPv1/v2
OSPFv2 |
| Layer 3 Protocol |
ARP
ARP Proxy
IGMP Proxy |
| IPv6 Layer 3 Functions |
| Other |
ICMPv6, ND, DNSv6 |
| Layer 2 Functions |
| Port Configuration |
Port disable/enable
Flow control disable/enable
Bandwidth control on each port
Port loopback detect |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status and auto negotiation status |
| VLAN |
802.1Q tagged VLAN, up to 4K VLAN groups
802.1ad Q-in-Q (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE) supported
Protocol-based VLAN
MAC-based VLAN
IP subnet VLAN |
| Bandwidth Control |
TX/RX/Both |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk
Supports 64 groups with 8 ports per trunk group |
| QoS |
8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
IEEE 802.1p CoS/ToS
IPv4/IPv6 DSCP
Port-based WRR |
| Multicast |
IPv4 IGMP v1/v2/v3 snooping
IPv4 Querier mode support
IPv6 MLD v1/v2 snooping
Multicast VLAN Register (MVR)
Up to 1024 entries |
| Security Functions |
| Access Control List |
Supports Standard and Expanded ACL
IP-based ACL/MAC-based ACL
Time-based ACL
Up to 2K entries |
| Security |
Port isolation
Supports IP + MAC + port binding
Identification and filtering of L2/L3/L4 based ACL
Defend against DOS or TCP attacks
Suppression of broadcast, multicast and unknown unicast packet
DHCP Snooping, DHCP Option 82/43/60/61/67
Command line authority control based on user levels |
| AAA |
TACACS+ and IPv4/IPv6 over RADIUS |
| Authentication |
IEEE 802.1x port-based network access control |
| Switch Management Functions |
| System Configuration |
Console, Telnet, Web browser, SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLSv1.2, SNMPv3 |
| Management |
IPv4 and IPv6 dual stack management
User IP security inspection for IPv4/IPv6 SNMP
SNMP v1, v2c and v3
SNMP MIB and TRAP
SNMP RMON 1, 2, 3, 9 four groups
IPv4/IPv6 FTP/TFTP
IPv4/IPv6 NTP
RADIUS authentication for IPv4/IPv6 Telnet user name and password
IPv4/IPv6 SSH
The right configuration for users to adopt RADIUS server’s shell management
CLI, console, Telnet
Security IP safety net management function: avoid unlawful landing at nonrestrictive area
Syslog server for IPv4 and IPv6
TACACS+
PLANET Smart Discovery Utility |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMP v2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMP v3 notify
RFC 2574 SNMP v3 vacm
RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB)
RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) |
| Standard Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1ag CFM
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 783 TFTP
RFC 793 TCP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 1058 RIP v1
RFC 2453 RIP v2
ITU-T G.8032 ERPS Ring |
| Environment |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing) |
