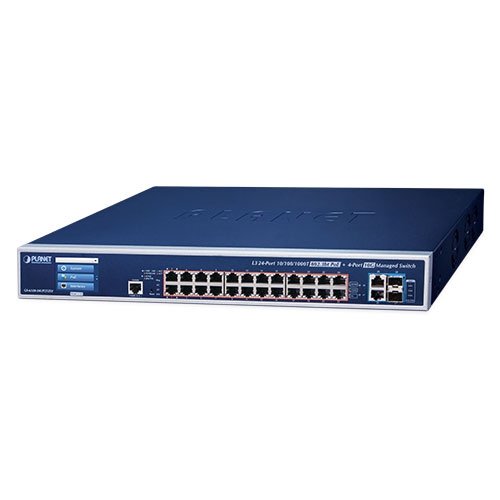

| Hardware Specifications |

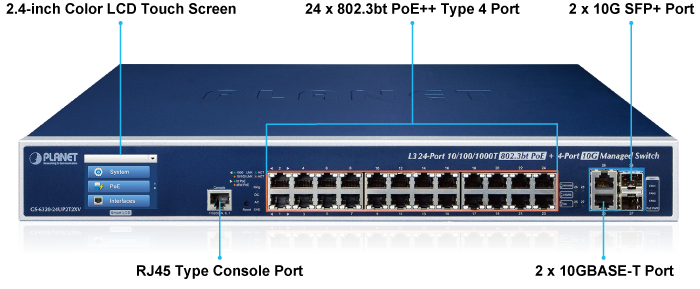

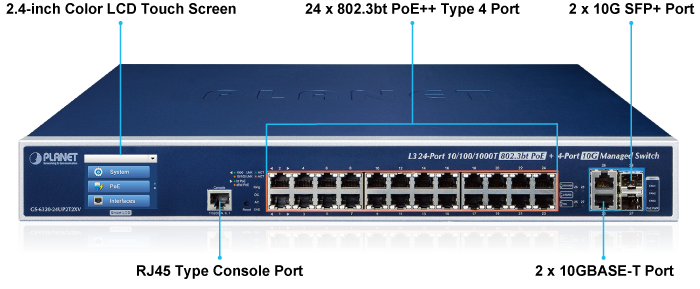

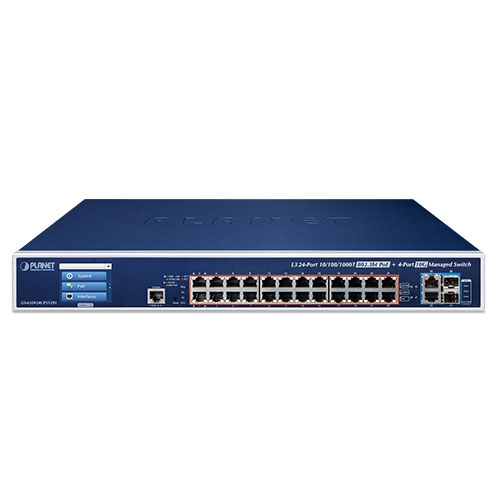

| Copper Ports |
24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
2 10GBASE-T RJ45 ports auto negotiation (Ports -25 to Port-26), supports 10G/5G/2.5G/1G/100Mbps data rate |
| SFP+ Slots |
2 10GBASE-SR/LR SFP+ interfaces (Ports -27 to Port-28)
Compatible with 1000BASE-SX/LX/BX SFP transceiver |
| Console |
1 x RJ45 serial port (115200, 8, N, 1) |
| RING |
Supports ERPS and, complies with ITU-T G.8032
Recovery time < 50 ms |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Dimensions (W x D x H) |
444 x 301 x 56 mm, 1.25 U height |
| Weight |
5417 g |
| Power Consumption |
Max. 835 watts/ 2849.14 BTU |

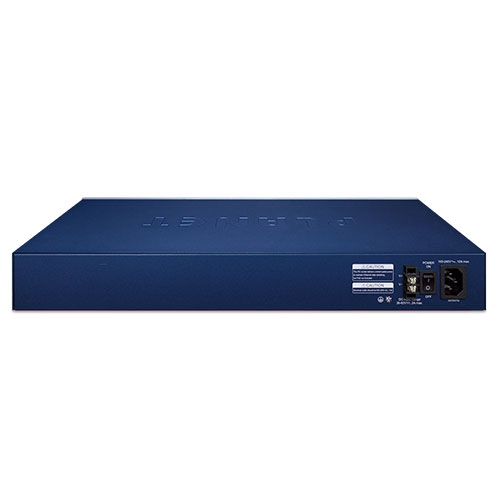

| Power Requirements – AC |
AC 100~240 V, 50/60 Hz, 8 A
Both the system and PoE functions operate normally, supplying power to connected PD devices |
| Power Requirements – DC |
DC 36~60 V, 2 A
The switch remains operational for data transmission, but PoE output is disabled |
| ESD Protection |
5K V DC |
| Fan |
3 smart fans |
| LED |
System:
SYS (Green)
AC (Green)
DC (Green)
Ring (Green)
Fan1/2/3 Alert (Red)
PoE PWR Alert (Red)
PoE Ethernet Interfaces (Ports 1 to 24):
af/at PoE (Amber)
bt PoE/UPOE (Green)
Ethernet Interfaces (Ports 1 to 24):
1000 LNK/ACT (Green), 10/100 LNK/ACT (Amber)
10GBASE-T Interfaces (Ports 25 to 26):
1G (Green), 2.5G/5G (Green + Amberr ), 10G (Amber)
1/10G SFP+ Interfaces (Ports 27 to 28):
1G (Green) , 2.5G (Green + Amber ), 10G (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
128 Gbps/non-blocking |
| Throughput |
95.23 Mbps@64Bytes |
| Address Table |
32K entries, automatic source address learning and aging |
| Shared Data Buffer |
32 Mbits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
10K bytes |
| Power over Ethernet |
| PoE Standard |
802.3bt PoE++ PSE
Backward compatible with IEEE 802.3af/802.3at PoE PSE |
| PoE Power Supply Type |
802.3bt
UPoE
End-span
Mid-span
Force |
| PoE Power Output |
Per port 52V DC
802.3bt Type-4 mode: Port-1 to Port-24: maximum 90 watts
UPoE mode: Port-1 to Port-24: maximum 95 watts
End-span mode: maximum 36 watts
Mid-span mode: maximum 36 watts
Force mode: maximum 90 watts |
| Power Pin Assignment |
802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-) |
| PoE Power Budget |
720 watts (max.) @ < 40 degrees C operating temperature
660 watts (max.) @ 40 to 49 degrees C operating temperature
600 watts (max.) @ 50 degrees C operating temperature |
| Number of 90w 802.3bt Type-4 PDs |
8 units |
| Number of 60w 802.3bt Type-3 PDs |
12 units |
| Number of 30w 802.3at PDs |
24 units |
| PoE Management Functions |
| PoE System Management |
PoE Port sStatus monitoring
Total PoE power budget control
Over tTemperature pProtection
PoE usage threshold and temperature threshold |
| PoE Device Live Detection |
Per port remote PD IP address
4 actions
None
PD reboot
PR reboot and alarm
Alarm |
| PoE Power Recycling |
Daily or predefinedinded schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Max. 200 meters |
| Layer 3 Functions |
| IP Interfaces |
Max. 128 VLAN interfaces |
| Routing Table |
Max. 128 routing entries
Max. 4K H/W routing table entries |
| Routing Protocols |
IPv4 RIPv1/v2
IPv4 OSPFv2
IPv4 hardware static routing
IPv6 OSPFv3
IPv6 hardware static routing |
| Layer 2 Management Functions |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status,
auto-negotiation status, trunk status |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor |
| VLAN |
802.1Q tagged VLAN
802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN registration)
GVRP
Up to 4K VLAN groups, out of 4095 VLAN IDs |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
BPDU Guard |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk
14 trunk groups with 4 ports per trunk |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
IPv4 IGMP Snooping port filtering
Up to 255 multicast groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping
IPv6 MLD querier mode support
Up to 255 multicast groups |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time <50ms @ 16 nodes
Supports major ring and sub-ring |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching:
Port number
802.1p priority
802.1Q VLAN tag
DSCP/ToS field in IP packet |
| Bandwidth Control |
Per port bandwidth control
Ingress: 10kbps~13000Mbps
Egress: 10kbps~13000Mbps |
| Security Functions |
| Access Control List |
IP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 512 entries |
| Security |
Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries |
| AAA |
RADIUS client
TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication |
| Management |
| Basic Management Interfaces |
Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv1/SSHv2, TLSv1.2,SNMP v3 |
| System Management |
Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app |
| Event Management |
Remote syslog
System log
SMTP |
| ONVIF |
ONVIF device discovery
ONVIF device monitoring
Floor map |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt PoE++
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1058 RIP v1
RFC 2453 RIP v2
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 2740 OSPF v3
ITU-T G.8032 ERPS Ring |
| Environment |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
