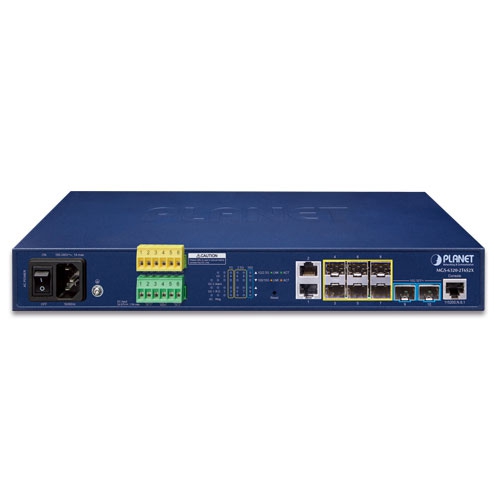

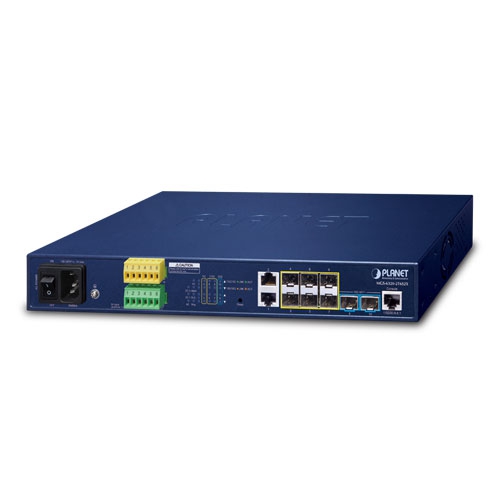

| Hardware Specifications |
| Copper Ports |
2 100/1000BASE-T RJ45 auto-MDI/MDI-X ports
(Port 1 and port 2) |
| SFP Ports |
2 1000BASE-SX/LX/BX SFP ports (Port 3 and port 4)
Compatible with 100BASE-FX SFP.
4 100/1000/2500BASE-X SFP ports (Port 5 and port 8) |
| SFP+ Ports |
2 1000/2500/10GBASE-X SFP ports (Port 9 and port 10) |
| Console |
1 x RJ45 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| RAM |
512Mbytes |
| Flash Memory |
64Mbytes |
| Dimensions (W x D x H) |
330.2 x 153 x 44 mm, 1U high |
| Weight |
1486g |
| Power Requirements |
AC 100~240V, 50/60Hz 1A
24V DC @ 1.5A, Range: 24V ~ 57V DC |
| Power Consumption |
Max. 16.2 watts/55.2 BTU (AC input)
Max. 17.6 watts/60 BTU (DC input) |
| Alarm |
One relay output for power failure. Alarm Relay current carry ability: 1A @ DC 24V |
| DI/DO |
2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.
2 Digital Output (DO): Open collector to 24VDC, 100mA max. |
| ESD Protection |
6KV DC |
| LED |
System:
PWR (Green), DC 1 (Green), DC 2 (Green)
DI/DO (Red), Alarm (Red), Ring (Green), Ring Owner (Green)
Gigabit RJ45 Ports (Ports 1 to 2)
100 LNK/ACT (Amber)
1G LNK/ACT (Green)
Gigabit SFP Ports (Ports 3 to 4)
100 LNK/ACT (Amber)
1G LNK/ACT (Green)
Gigabit SFP Ports (Ports 5 to 8)
100 LNK/ACT (Amber)
1G/2.5G LNK/ACT (Green)
10 Gigabit SFP Ports (Ports 9 to 10)
10G LNK/ACT (Amber)
1G/2.5G LNK/ACT (Green) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
68Gbps/non-blocking |
| Throughput |
50.59Mpps @ 64Bytes packet |
| Address Table |
8K entries, automatic source address learning and aging |
| RAM |
512Mbytes |
| Flash |
64Mbytes |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
10KB |
| Layer 3 Functions |
| IP Interfaces |
Max. 32 VLAN interfaces |
| Routing Table |
Max. 32 static route entries
Max. 1K routing table entries |
| Routing Protocols |
IPv4 RIPv1/v2
IPv4 OSPFv2
IPv6 OSPFv3
IPv4 hardware static routing
IPv6 hardware static routing |
| Layer 2 Functions |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Port link capability control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor
Supports up to 5 sessions |
| VLAN |
IEEE 802.1Q tag-based VLAN,
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/Static Trunk
Supports 5 trunk groups with 10 ports per trunk group |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet |
| Ring |
Supports ERPS, and complies with ITU-T G.8032 |
| IGMP Snooping |
IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
IGMP Querier mode support |
| MLD Snooping |
MLD (v1/v2) Snooping, up to 255 multicast groups
MLD Querier mode support |
| Bandwidth Control |
Per port bandwidth control
Ingress: 500Kb~13128Mbps
Egress: 500Kb~13128Mbps |
| Security Functions |
| Access Control List |
IP-based ACL/MAC-based ACL
ACL based on:
- MAC Address
- IP Address
- Ethertype
- Protocol Type
- VLAN ID
- DSCP
- 802.1p Priority
Up to 512 entries |
| Security |
Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries |
| AAA |
RADIUS client
TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication |
| Switch Management Functions |
| Basic Management Interfaces |
Console; Telnet; Web Browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLS v1.2, SNMP v3 |
| System Management |
Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET NMS system and CloudViewer |
| Event Management |
Remote Syslog
Local System log
SMTP |
| SNMP MIBs |
SNMP MIBs
RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3ae 10Gb/s Ethernet
IEEE802.3x flow control and back pressure
IEEE802.3ad port trunk with LACP
IEEE802.1D Spanning Tree Protocol
IEEE802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE802.1p Class of Service
IEEE802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 2453 RIP v2 |
| Environment |
| Operating |
Temperature: -10 ~ 60 degrees C for DC power input
0 ~ 50 degrees C for AC power input
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
