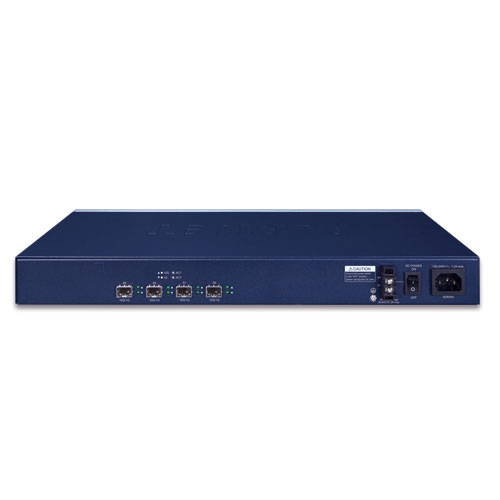

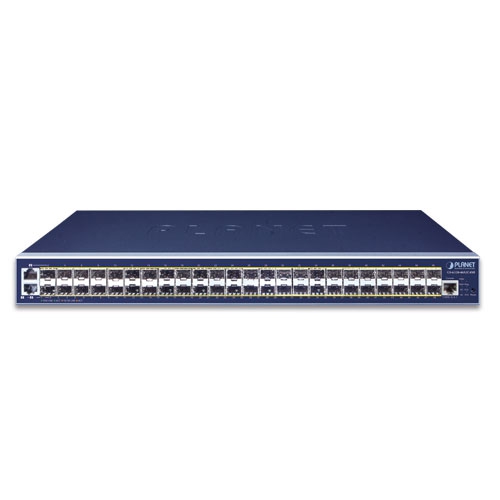

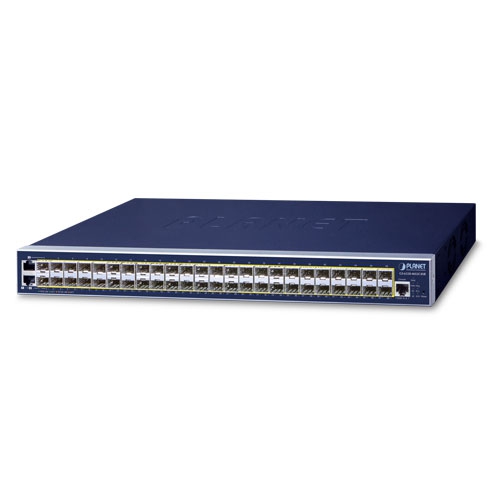

| Hardware Specifications |
| 100/1000X SFP/mini-GBIC Slots |
48 |
| 10/100/1000T Copper Ports |
2 |
| 10GBASE-LR/SR SFP+ Slots |
4, compatible with 1000BASE-SX/LX/BX SFP |
| Console |
1 x RJ45 serial port (115200 , 8, N, 1) |
| Reset Button |
< 5 sec: System reboot
>= 10 sec: Factory default |
| Smart FAN |
2 |
| Power Requirements |
AC: 100~240V, 50/60Hz
DC: 36V-60V, 2A max.
Redundant power designed |
| Power Consumption (Full Loading) |
AC 110V: 72 watts/245BTU (max.)
DC 60V: 69 watts/235BTU (max.) |
| ESD Protection |
6KV DC |
| Dimensions (W x D x H) |
444 x 200 x 44.2 mm, 1U height |
| Weight |
3.4kg |
| SDRAM |
512Mbytes |
| Flash Memory |
64Mbytes |
| LED |
System:
Fan2 Alert (Red), Fan1 Alert (Red), DC (Green), AC (Green)
Ring (Green), R.O. (Green), SYS (Green)
10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 2):
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Orange)
100/1G Mbps SFP Interfaces (Port 1 to Port 48):
1000 LNK/ACT (Green)
100 LNK/ACT (Orange)
1G/10G BASE-X Interfaces (Port 49 to Port 52):
10G LNK/ACT (Green)
1000Mbps LNK/ACT (Green) |
| Switch Performance |
| Switch Fabric |
176Gbps/non-blocking |
| Throughput |
130Mpps@ 64Bytes packet |
| Switch Architecture |
Store-and-Forward |
| Address Table |
16K entries, automatic source address learning and aging |
| Share Data Buffer |
32Mbits |
| Flow Control |
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex |
| Jumbo Frame |
10KB |
| Layer 2 Functions |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor |
| VLAN |
802.1Q tagged based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
Port Isolation
MAC-based VLAN
IP Subnet-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 255 VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/Static Trunk
Supports 26 trunk groups with 16 ports per trunk |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups |
| Access Control List |
IP-based ACL/MAC-based ACL
ACL based on:
- MAC Address
- IP Address
- Ethertype
- Protocol Type
- VLAN ID
- DSCP
- 802.1p Priority
Up to 256 entries |
| Bandwidth Control |
Per port bandwidth control
Ingress: 10Kbps~13000Mbps
Egress: 10Kbps~13000Mbps |
| Layer 3 Functions |
| IP Interfaces |
Max. 128 VLAN interfaces |
| Routing Table |
Max. 128 routing entries |
| Routing Protocols |
IPv4 OSPFv2 dynamic routing
IPv4 hardware static routing
IPv6 hardware static routing |
| Management |
| Basic Management Interfaces |
Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLS v1.2, SNMP v3 |
| Management Functions |
Firmware upgrade by HTTP protocol through Ethernet network
Remote syslog and local system log
LLDP protocol
UDLD
NTP
UPnP |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
IEEE 802.1ab LLDP
MAU-MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2

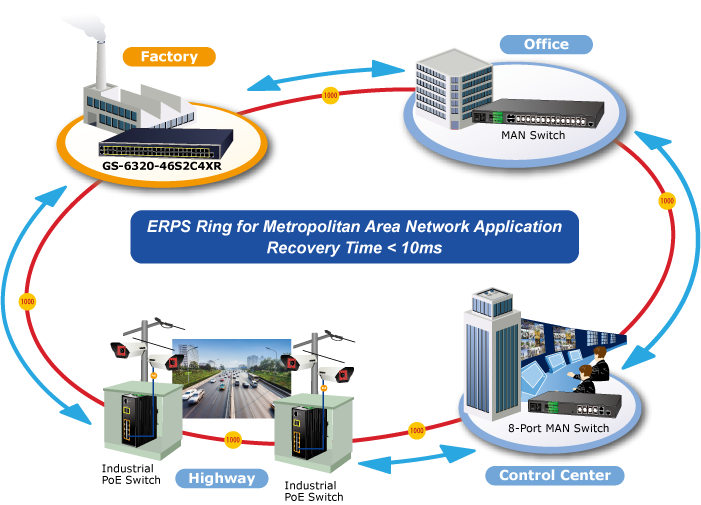

ITU-T G.8032 ERPS Ring |
| Environments |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
