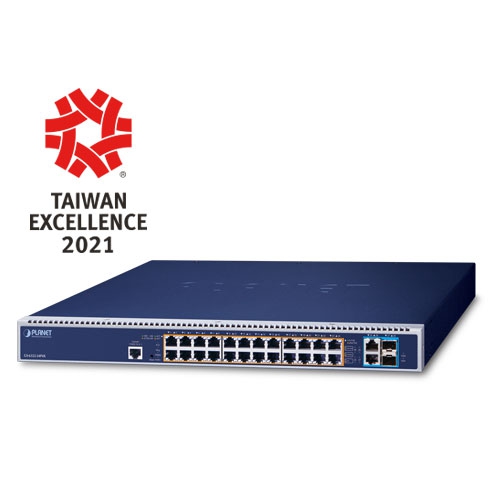

| Hardware Specifications |

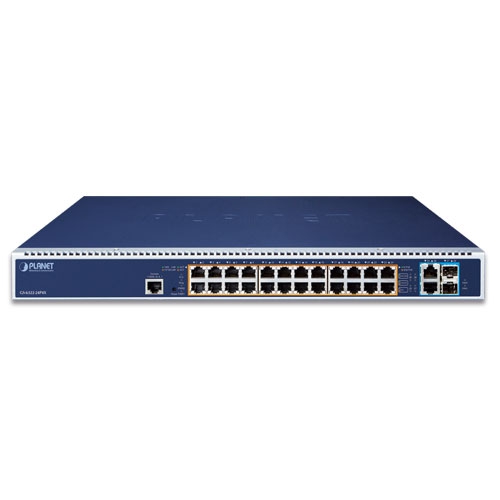

| Copper Ports |
24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
2-port 10GBASE-T RJ45 auto negotiation (Port-25 to Port-26), supports 10G/5G/2.5G/1G/100Mbps data rate |
| SFP+ Slots |
2 10GBASE-SR/LR SFP+ interfaces (Port-27 to Port-28) Compatible with 1000BASE-SX/LX/BX SFP and 2.5G SFP transceiver |
| Console |
1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Dimensions (W x D x H) |
444 x 301 x 44mm, 1U height |
| Weight |
5478g |

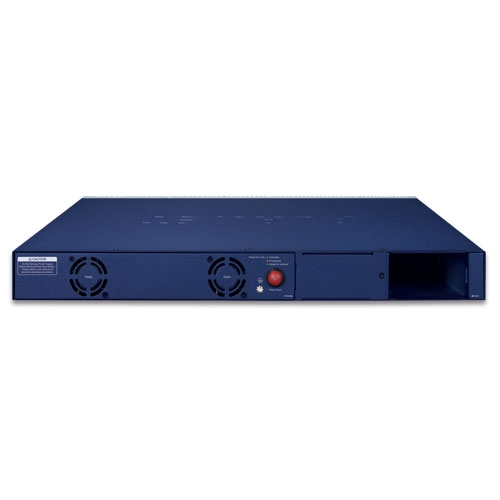

| Power Requirements |

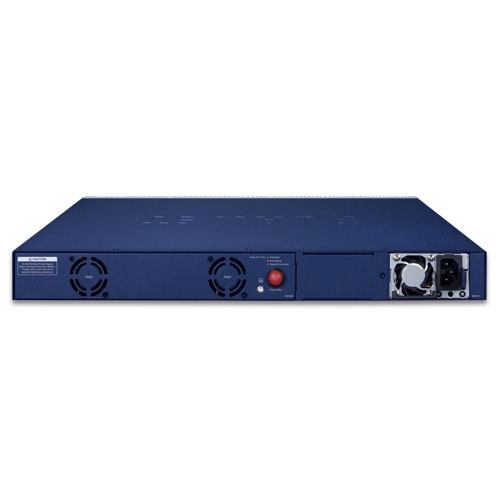

Single
920W PSU: AC 100~240V, 50/60Hz, 13A
1200W PSU: AC 100~240V, 50/60Hz, 13A
2000W PSU: AC 100~240V, 50/60Hz, 13A

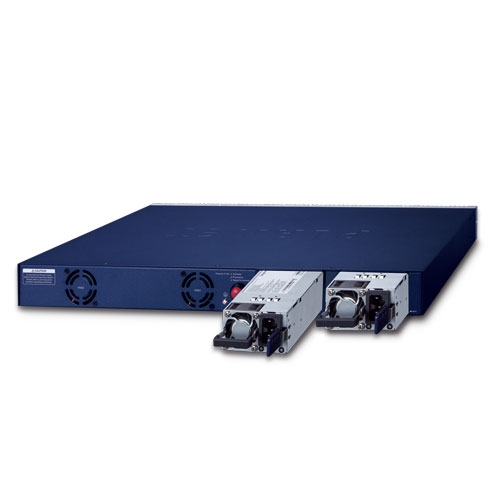

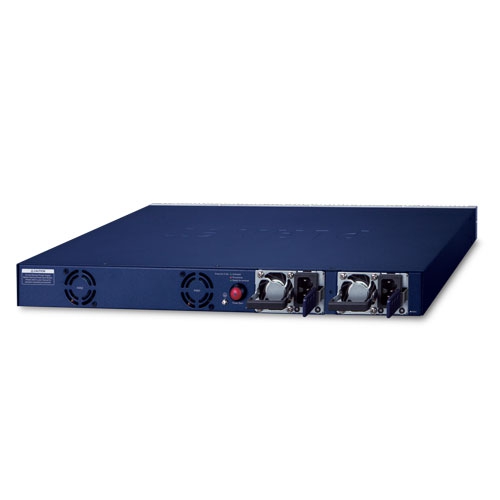

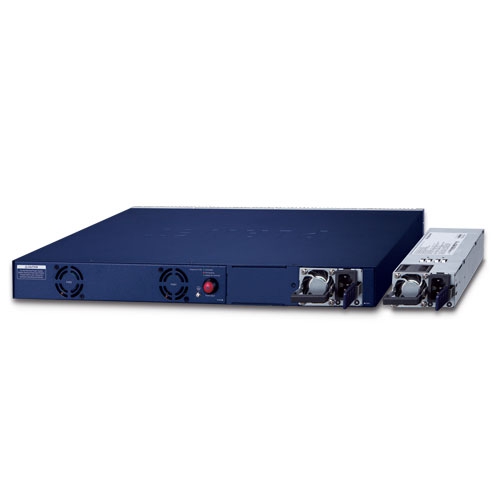

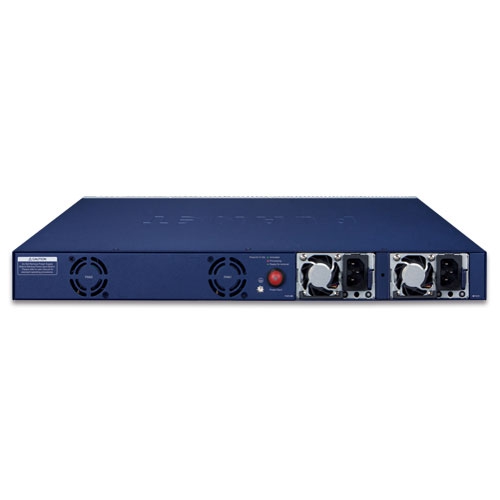

Dual
920W PSU: AC 100~240V, 50/60Hz, 26A
1200W PSU: AC 100~240V, 50/60Hz, 26A
2000W PSU: AC 100~240V, 50/60Hz, 26A |
| Power Consumption |
Single PSU: Max. 2032 watts/ 6933 BTU
Dual PSUs in EPS mode: Max. 2377 watts/ 8111 BTU |
| ESD Protection |
6KV DC |
| Fan |
2 smart fans |
| LED |
System:
SYS (Green)
PWR1 (Green)
PWR2 (Green)
Ring (Green)
Fan1/2/3 Alert (Red)
PoE PWR Alert (Red)
PoE Ethernet Interfaces (Port-1 to Port-24):
af/at PoE (Orange)
bt PoE/UPOE (Green)
Ethernet Interfaces (Port-1 to Port-24):
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
1/10G SFP+ Interfaces (Port-27 to Port-28):
1G (Green), 10G (Orange) |
| Network Cables |
10G/5G/2.5G/1G/100M BASE-T:
-10G – Cat 6A/7
-5G – Cat 6/6A/7
-1G/2.5G – Cat 5e/6/6A/7
-100M – Cat 5/5e/6/6A/7
-Cat 5/5e/6/6A/7 UTP cable (maximum 100 meters)
10GBASE-LR/SR/BX:
-50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m
-9/125μm single-mode fiber optic cable, up to 60km |
| Switching |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
128Gbps/non-blocking |
| Throughput |
95.23Mpps@64Bytes |
| Address Table |
16K entries, automatic source address learning and aging |
| Shared Data Buffer |
32M bits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
10K bytes |
| Power over Ethernet |
| PoE Standard |
802.3bt PoE++ PSE
Backward compatible with IEEE 802.3af/802.3at PoE PSE |
| PoE Power Supply Type |
802.3bt
UPoE
End-span
Mid-span
Force |
| PoE Power Output |
Per port 54V DC
-802.3bt Type-4 mode, Port-1 to Port-24: maximum 90 watts
-UPoE mode, Port-1 to Port-24: maximum 95 watts
-End-span mode: maximum 36 watts
-Mid-span mode: maximum 36 watts
-Force mode: maximum 60 watts |
| Power Pin Assignment |
802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-) |
| PoE Power Budget |
up to 2280 watt |
| PoE Management Functions |
| Active PoE device alive detects |
Yes |
| PoE Power Recycle |
Yes, daily or predeinded schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Yes, max. 160 to 200 meters |
| PoE System Management |
System PoE Admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-termperature threshold alarm
PoE usage threshold alarm |
| PoE Port Management |
Port Enable/Disable/Schedule
PoE mode control
- 802.3bt
- UPoE
- 802.3at End-span
- 802.3at Mid-span
Force mode
Port Priority |
| Layer 3 Functions |
| IP Interfaces |
Max. 128 VLAN interfaces |
| Routing Table |
Max. 128 routing entries |
| Routing Protocols |
IPv4 OSPFv2
IPv4 hardware static routing
IPv6 hardware static routing |
| Layer 2 Management Functions |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status,
auto-negotiation status, trunk status |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor |
| VLAN |
802.1Q tagged VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN registration)
Up to 4K VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk
Supports 3 trunk groups with 4 ports per trunk group |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching:
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/ToS field in IP packet |
| Access Control List |
IP-based ACL/MAC-based ACL
ACL based on:
- MAC Address
- IP Address
- Ethertype
- Protocol Type
- VLAN ID
- DSCP
- 802.1p Priority
Up to 256 entries |
| Bandwidth Control |
Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps |
| RING |
Support ERPS, complies with ITU-T G.8032
Recovery time < 10ms with 3 units
Recovery time < 50ms with 16 units |
| Management |
| Basic Management Interfaces |
Console
Telnet
Web browser
SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLSv1.2, SSL, SNMP v3 |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt PoE++ Power over Ethernet Plus Plus
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring |
| Environment |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
