| Hardware Specifications |
| Copper Port |

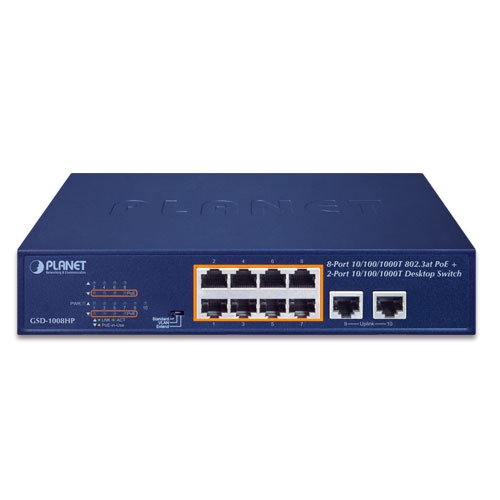

10 10/100/1000BASE-T MDI/MDIX Ports |
| PoE Injector Port |
8-port with 802.3af/at PoE injector function with Port-1 to Port-8 |
| LED Indicators |
System:
10/100/1000BASE-T RJ45 interfaces:
- 10/100/1000Mbps LNK/ACT (Green)
PoE interfaces:
|
| DIP Switch |
Selectable operation mode
|
| Dimensions (W x D x H) |
220 x 150 x 44 mm (1U height) |
| Enclosure |
Metal |
| Weight |
1205 g |
| Power Requirements |

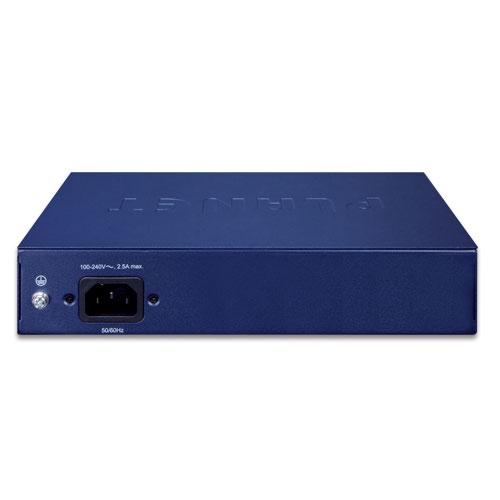

AC 100~240V, 50/60Hz, 2.5A max. |
| Power Consumption/ Dissipation |
System On: Max. 4.1 watts/13.9 BTU
PoE Full Loading: Max. 124 watts/423.1 BTU |
| ESD Protection |
Contact discharge of 6KV DC
Air discharge of 8KV DC |
| Thermal Fan |
1 |
| Switching Specification |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
20Gbps |
| Switch Throughput@64 bytes |
13.4Mpps@64 bytes |
| Flow Control |
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex |
| MAC Address Table |
2K entries, automatic source address learning and aging |
| Maximum Frame Size |
9K bytes |
| Buffer Memory |
1Mbits |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
Per port 54V DC, 600mA. max. 32 watts |
| Power Pin Assignment |
1/2 (+), 3/6 (-) |
| PoE Power Budget |
120 watts |
| Max. Number of Class 2 PDs |
8 |
| Max. Number of Class 3 PDs |
8 |
| Max. Number of Class 4 PDs |
4 |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
