Name: 1000BASE-SX/LX SFP收发器
Brand: PLANET Technology

Print Version

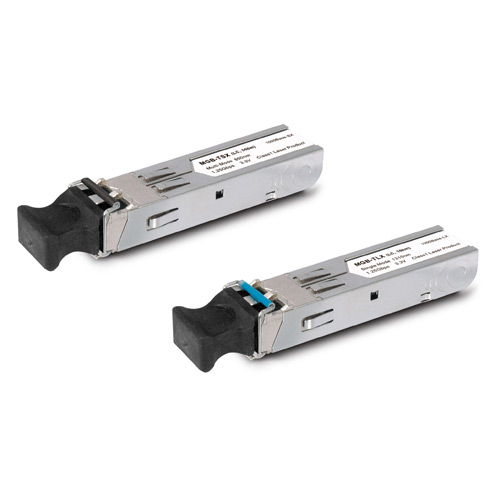

MGB-Series Transceiver

1000BASE-SX/LX SFP收发器

概述
应用场景
功能特性
产品规格
下载

MGB-GT
PHY Type	IEEE 802.3ab 1000BASE-T
Connector	RJ45 Copper
Maximum Distance	100m
Operating Temperature	0~60 degrees C
MGB-SX
PHY Type	IEEE 802.3z 1000BASE-SX
Fiber Type	Multi-Mode
Connector	Dual LC/UPC
DDM	YES
Wavelength	850nm
Maximum Distance	550m
Operating Temperature	0~60 degrees C
MGB-SX2
PHY Type	IEEE 802.3z 1000BASE-SX
Fiber Type	Multi-Mode
Connector	Dual LC/UPC
DDM	YES
Wavelength	1310nm
Maximum Distance	2km
Operating Temperature	0~60 degrees C
MGB-LX
PHY Type	IEEE 802.3z 1000BASE-LX
Fiber Type	Single-Mode
Connector	Dual LC/UPC
DDM	YES
Wavelength	1310nm
Maximum Distance	20km
Operating Temperature	0~60 degrees C
MGB-L40
PHY Type	IEEE 802.3z 1000BASE-LX
Fiber Type	Single-Mode
Connector	Dual LC/UPC
DDM	YES
Wavelength	1310nm
Maximum Distance	40km
Operating Temperature	0~60 degrees C
MGB-L80
PHY Type	IEEE 802.3z 1000BASE-LX
Fiber Type	Single-mode
Connector	Dual LC/UPC
DDM	Yes
Wavelength	1550nm
Maximum Distance	80km
Operating Temperature	0~60 degrees C
MGB-L120
PHY Type	IEEE 802.3z 1000BASE-LX
Fiber Type	Single-mode
Connector	Dual LC/UPC
DDM	Yes
Wavelength	1550nm
Maximum Distance	120km
Operating Temperature	0~60 degrees C
MGB-TSX
PHY Type	IEEE 802.3z 1000BASE-SX
Fiber Type	Multi-Mode
Connector	Dual LC/UPC
DDM	YES
Wavelength	850nm
Maximum Distance	550m
Operating Temperature	-40~85 degrees C
MGB-TGT
PHY Type	IEEE 802.3ab 1000BASE-T
Fiber Type	N/A
Connector	RJ45 Copper
DDM	N/A
Wavelength	N/A
Maximum Distance	100m
Operating Temperature	-40~85 degrees C
MGB-TSX2
PHY Type	IEEE 802.3z 1000BASE-SX
Fiber Type	Multi-mode
Connector	Dual LC/UPC
DDM	Yes
Wavelength	1310nm
Maximum Distance	2km
Operating Temperature	-40~85 degrees C
MGB-TLX
PHY Type	IEEE 802.3z 1000BASE-LX
Fiber Type	Single-Mode
Connector	Dual LC/UPC
DDM	YES
Wavelength	1310nm
Maximum Distance	20km
Operating Temperature	-40~85 degrees C
MGB-TL40
PHY Type	IEEE 802.3z 1000BASE-LX
Fiber Type	Single-mode
Connector	Dual LC/UPC
DDM	YES
Wavelength	1310nm
Maximum Distance	40km
Operating Temperature	-40~85 degrees C
MGB-TL80
PHY Type	IEEE 802.3z 1000BASE-LX
Fiber Type	Single-mode
Connector	Dual LC/UPC
DDM	Yes
Wavelength	1550nm
Maximum Distance	80km
Operating Temperature	-40~85 degrees C
MGB-LA10 and MGB-LB10
PHY Type	IEEE 802.3z 1000BASE-BX
Fiber Type	Single-mode
Connector	Simplex LC/UPC
DDM	Yes
Wavelength	MGB-LA10: TX1310nm, RX1550nm MGB-LB10: TX1550nm, RX1310nm
Maximum Distance	10km
Operating Temperature	0~60 degrees C
MGB-LA20 and MGB-LB20
PHY Type	IEEE 802.3z 1000BASE-BX
Fiber Type	Single-mode
Connector	Simplex LC/UPC
DDM	Yes
Wavelength	MGB-LA20: TX1310nm, RX1550nm MGB-LB20: TX1550nm, RX1310nm
Maximum Distance	20km
Operating Temperature	0~60 degrees C
MGB-LA40 and MGB-LB40
PHY Type	IEEE 802.3z 1000BASE-BX
Fiber Type	Single-mode
Connector	Simplex LC/UPC
DDM	Yes
Wavelength	MGB-LA40: TX1310nm, RX1550nm MGB-LB40: TX1550nm, RX1310nm
Maximum Distance	40km
Operating Temperature	0~60 degrees C
MGB-LA80 and MGB-LB80
PHY Type	IEEE 802.3z 1000BASE-BX
Fiber Type	Single-mode
Connector	Simplex LC/UPC
DDM	Yes
Wavelength	MGB-LA80: TX1490nm, RX1550nm MGB-LB80: TX1550nm, RX1490nm
Maximum Distance	80km
Operating Temperature	0~60 degrees C
MGB-TSA and MGB-TSB
PHY Type	IEEE 802.3z 1000BASE-BX
Fiber Type	Multi-mode
Connector	Simplex LC/UPC
DDM	Yes
Wavelength	MGB-TSA: TX1310nm, RX1550nm MGB-TSB: TX1550nm, RX1310nm
Maximum Distance	2km
Operating Temperature	-40~85 degrees C
MGB-TLA10 and MGB-TLB10
PHY Type	IEEE 802.3z 1000BASE-BX
Fiber Type	Single-mode
Connector	Simplex LC/UPC
DDM	YES
Wavelength	MGB-TLA10: TX1310nm, RX1550nm MGB-TLB10: TX1550nm, RX1310nm
Maximum Distance	10km
Operating Temperature	-40~85 degrees C
MGB-TLA20 and MGB-TLB20
PHY Type	IEEE 802.3z 1000BASE-BX
Fiber Type	Single-mode
Connector	Simplex LC/UPC
DDM	YES
Wavelength	MGB-TLA20: TX1310nm, RX1550nm MGB-TLB20: TX1550nm, RX1310nm
Maximum Distance	20km
Operating Temperature	-40~85 degrees C
MGB-TLA40 and MGB-TLB40
PHY Type	IEEE 802.3z 1000BASE-BX
Fiber Type	Single-mode
Connector	Simplex LC/UPC
DDM	YES
Wavelength	MGB-TLA40: TX1310nm, RX1550nm MGB-TLB40: TX1550nm, RX1310nm
Maximum Distance	40km
Operating Temperature	-40~85 degrees C
MGB-TLA80 and MGB-TLB80
PHY Type	IEEE 802.3z 1000BASE-BX
Fiber Type	Single-mode
Connector	Simplex LC/UPC
DDM	YES
Wavelength	MGB-TLA80: TX1490nm, RX1550nm MGB-TLB80: TX1550nm, RX1490nm
Maximum Distance	80km
Operating Temperature	-40~85 degrees C
MGB-TLA120 and MGB-TLB120
PHY Type	IEEE 802.3z 1000BASE-EZX
Fiber Type	Single-mode
Connector	Simplex LC/UPC
DDM	Yes
Wavelength	MGB-TLA120:　TX1490nm, RX1550nm MGB-TLB120:　TX1550nm, RX1490nm
Maximum Distance	120km
Operating Temperature	-40~85 degrees C

订购信息
MGB-GT	SFP-Port 1000BASE-T Module
MGB-LX	SFP-Port 1000BASE-LX mini-GBIC module - 20km
MGB-SX	SFP-Port 1000BASE-SX mini-GBIC module - 550m
MGB-SX2	SFP-Port 1000BASE-SX mini-GBIC module - 2km
MGB-L40	SFP-Port 1000BASE-LX mini-GBIC module - 40km
MGB-L80	SFP-Port 1000BASE-LX mini-GBIC module - 80km
MGB-L120	SFP-Port 1000BASE-LX mini-GBIC module - 120km
MGB-LA10	SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module - 10km
MGB-LB10	SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module - 10km
MGB-LA20	SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module - 20km
MGB-LB20	SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module - 20km
MGB-LA40	SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module - 40km
MGB-LB40	SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module - 40km
MGB-LA80	SFP-Port 1000BASE-BX (WDM, TX:1490nm) mini-GBIC module - 80km
MGB-LB80	SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module - 80km
MGB-TSX	SFP-Port 1000BASE-SX mini-GBIC module - 550m (-40~85 degrees C)
MGB-TSX2	SFP-Port 1000BASE-SX mini-GBIC module – 2km (-40~85 degrees C)
MGB-TLX	SFP-Port 1000BASE-LX mini-GBIC module - 20km (-40~85 degrees C)
MGB-TL40	SFP-Port 1000BASE-LX mini-GBIC module - 40km (-40~85 degrees C)
MGB-TL80	SFP-Port 1000BASE-LX mini-GBIC module - 80km (-40~85 degrees C)
MGB-TLA10	SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module - 10km (-40~85 degrees C)
MGB-TLB10	SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module - 10km (-40~85 degrees C)
MGB-TLA20	SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module - 20km (-40~85 degrees C)
MGB-TLB20	SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module - 20km (-40~85 degrees C)
MGB-TLA40	SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module - 40km (-40~85 degrees C)
MGB-TLB40	SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module - 40km (-40~85 degrees C)
MGB-TLA80	SFP-Port 1000BASE-BX (WDM, TX:1490nm) mini-GBIC module - 80km (-40~85 degrees C)
MGB-TLB80	SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module - 80km (-40~85 degrees C)
MGB-TSA	SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module - 2km (-40~85 degrees C)
MGB-TSB	SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module - 2km (-40~85 degrees C)
MGB-TGT	SFP-Port 1000BASE-T Module – 100m (-40~85 degrees C)
MGB-TLA120	SFP-Port 1000BASE-BX (WDM, TX:1490nm) mini-GBIC module - 120km (-40~85℃)
MGB-TLB120	SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module - 120km (-40~85℃)
