| Hardware Specifications |
| Interface |
Ethernet：1 x 10/100/1000BASE-T RJ45, Ethernet data output port
PoE in：1 x 10/100/1000BASE-T RJ45, PoE power input port

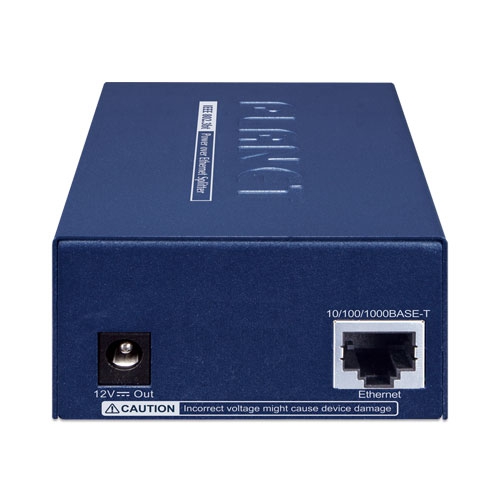

Power socket：1 x DC plug-in |
| DC Socket |
DC receptacle 2.5mm |

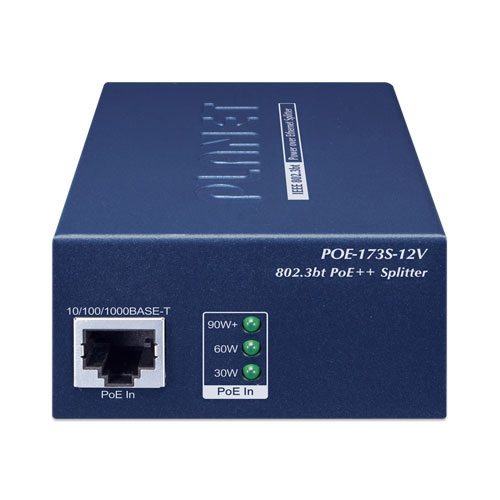

| LED Indicators |
PoE in:
30W (Green)
60W (Green)
90W+ (Green) |
| Data Rate |
10/100/1000Mbps |
| Dimensions(W x D x H) |
94 x 70.3 x 39.2 mm |
| Weight |
265g |
| Installation |
Desktop/wall mountable/DIN-rail |
| Enclosure |
Metal case |
| Power Requirements |
48~56V DC PoE |
| Unit Output Current(at 56VDC Input) |
With 803.bt type 3 PoE++ input: 4.5A@12V DC
With 803.bt type 4 PoE++ input: 5A@12V DC |
| Power Consumption |
Ethernet full loading without DC output: 6.5 watts
Full loading with maximum 12V DC, 5A output: 70 watts |
| Network Cable |
803.bt PoE (60W+)
4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
802.3at PoE (30W)
2-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) |
| Power over Ethernet |
| PoE Standard |
802.3bt Type 3/4 Power over Ethernet
4-pair 802.3at PoE+
Compliant with voltage within 48-56V DC |
| Power Output |
DC 12V |
| PoE Power Supply Type |
End-span + Mid-span
End-span
Mid-span |
| Power Pin Assignment |
1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or
1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-) |
| Standards Conformance |
| Standards Compliance |
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet Type 4 |
| Regulatory Compliance |
FCC, CE, UL |
| Environment |
| Operating Temperature |
0~ 50 degrees C |
| Storage Temperature |
-10~ 70 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
