| Hardware Specifications |
| Network Connector |

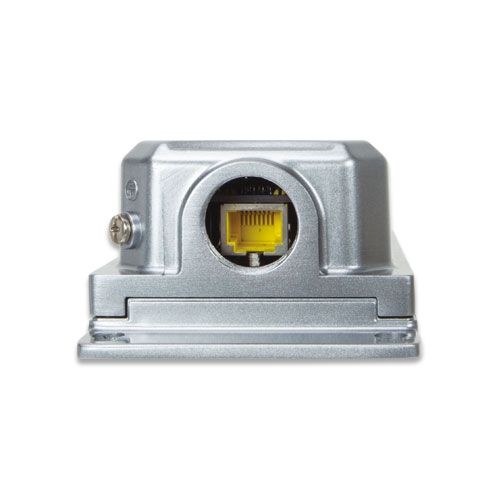

PoE in Port
1 x 10/100/1000BASE-T Ethernet with 802.3bt PoE++ “Data + DC” in
Auto MDI/MDI-X, auto-negotiation RJ45 connector

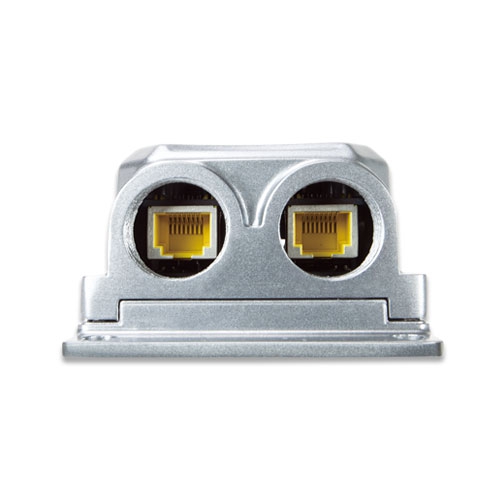

PoE out Port
2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/bt PoE++ “Data + DC” out
Auto MDI/MDI-X, auto-negotiation RJ45 connector |
| LED Display |
LNK/ACT LED x 3 |
| Dimensions (W x D x H) |
150.5 x 43.8 x 72.94 mm (W x D x H)

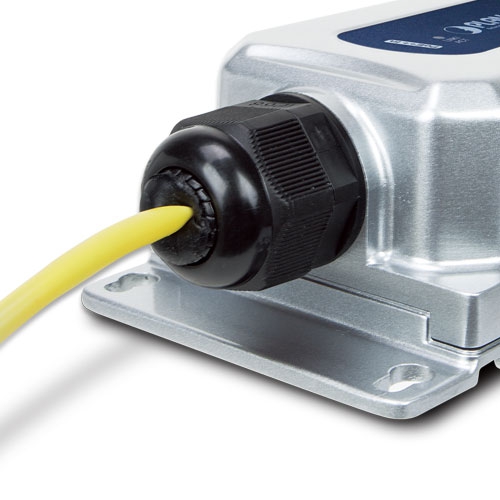

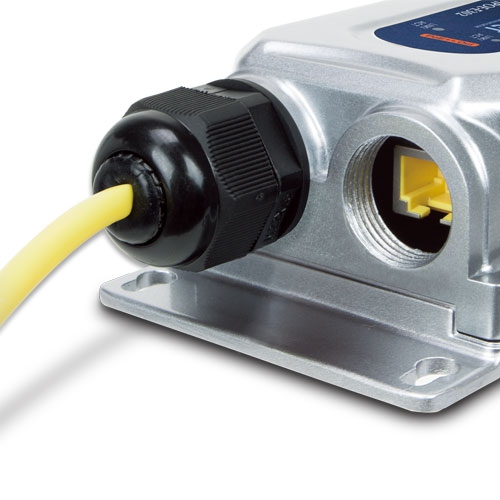

169.85 x 43.8 x 72.94 mm (W x D x H), with cable gland |
| Weight |
339g
372g(with three waterproof cable glands) |
| Power Consumption |
95.6 watts / 326.2BTU (Full loading with PoE function) |
| ESD Protection |
Air 8KV DC
Contact 6KV DC |
| Surge Protection |
6KV |
| Enclosure |
IP67-rated and IK10 aluminum case |
| Installation |
Wall-mount ear |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward switch architecture |
| MAC Address Table |
2K MAC address table with auto learning function |
| Data Buffer |
1Mbit |
| Switch Fabric |
6Gbps |
| Switch Throughput |
4.46Mpps @ 64Bytes |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
9Kbytes |
| Power over Ethernet |
| PoE Standard |
PoE in Port
IEEE 802.3bt PoE++ Type 4 standard PD
IEEE 802.3bt PoE++ Type 3 standard PD
IEEE 802.3at PoE+ end-span/mid-span PD
Per PoE out Port
IEEE 802.3bt PoE++ end-span/mid-span PSE |
| PoE Power |
PoE in Port
52~57V DC, max. 95 watts
Per PoE out Port
50~55V DC, max. 60 watts |
| Power Pin Assignment |
PoE in Port
1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) or 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-)
Per PoE out Port
1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) |
| PoE Power Budget |
60 watts (max.) @ 802.3bt PoE++ Type 3 input
30 watts (max.) @ IEEE 802.3at PoE+ input
IEEE 802.3af PoE input not supported |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A
CE |
| Stability Testing |
IEC 60068-2-32 (Free fall)
IEC 60068-2-27 (Shock)
IEC 60068-2-6 (Vibration) |
| Standards Compliance |
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus |
| Environment |
| Operating |
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
