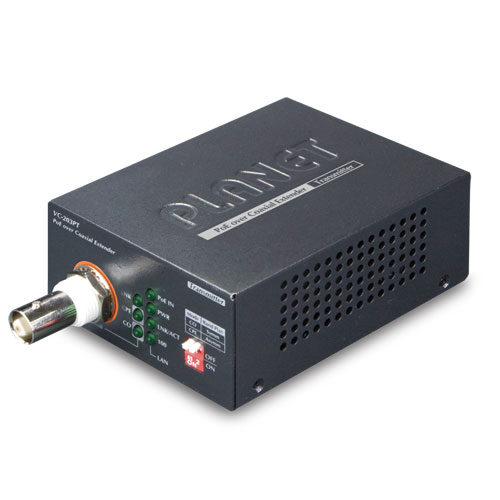

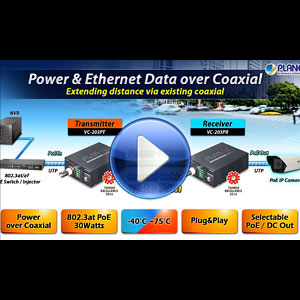

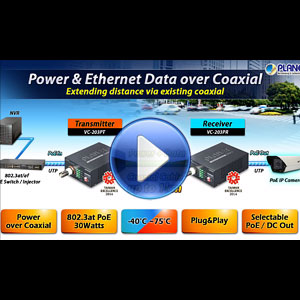

| Hardware Specifications |
| Interface |
Copper:
10/100Base-TX RJ-45
Auto-negotiation/auto-MDI/MDI-X
802.3at/af PoE Input
Coaxial:
BNC, female
Power over Coaxial output
DC Socket(Optional):
52~56V DC input
DIP-Switch:
2-position DIP Switch
■ Selectable CO or CPE mode
(Default: CPE)
■ Selectable Band plan: asymmetric or symmetric
(Default: asymmetric) |
| LED Indicators |
| LED is Green in Color: | | System: | PoE: | | ■ PWR | | ■ PoE IN | | VDSL2: | Ethernet: | | ■ LNK | | ■ LNK/ACT | | ■ CO | | ■ 100 | | ■ CPE | | |
|
| System: |
PoE: |
|
■ PWR |
| VDSL2: |
Ethernet: |
|
■ LNK |
|
■ CO |
|
■ CPE |
| ESD Protection |
2KV DC |
| EFT Protection |
2KV DC |
| Enclosure |
IP30 metal case |
| Installation |
Wall mount or DIN rail with optional kit |
| Dimensions (W x D x H) |
94 x 70.3 x 39.2 mm |
| Weight |
288g |
| Power Requirements |
■ RJ-45 PoE Input: 802.3at/af 44~57V DC
■ DC Input: 52~56V DC
|
| Power over Ethernet/Coaxial |
| PoE Standard |
IEEE 802.3at Type 2
IEEE 802.3af |
| PSE Interface |
BNC
44~57V DC
(Depending on what the DC/PoE Power Input is) |
| PD Interface |
RJ-45, both Mid-Span and End-Span
Input Range: 44~57V DC |
| DC Power Output |
- |
| Max. PoE Budget |
Power Input by PoE
BNC : 25 watts
Power Input by DC
BNC : 30 watts |
| Performance *(Downstream / Upstream)* |
Distance | Data Rate | VC-203PR PoE Output | Asymmetric Mode | Symmetric Mode | VC-203PT
W/DC IN | VC-203PT
W/PoE+ IN | 200m | 100/60 Mbps | 90/100 Mbps | 20W | 13W | 400m | 95/55 Mbps | 85/100 Mbps | 16W | 11W | 600m | 90/50 Mbps | 70/80 Mbps | 12W | 10W | 800m | 85/45 Mbps | 65/70 Mbps | 7W | 6W | 1000m | 70/35 Mbps | 55/55 Mbps | 5W | 4W | 1200m | 60/25 Mbps | 45/40 Mbps | - | - |
|
| Distance |
Data Rate |
| Asymmetric Mode |
Symmetric Mode |
| 200m |
100/60 Mbps |
| 400m |
95/55 Mbps |
| 600m |
90/50 Mbps |
| 800m |
85/45 Mbps |
| 1000m |
70/35 Mbps |
| 1200m |
60/25 Mbps |
| Standards Conformance |
| Standards Compliance |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2) |
| Regulation Compliance |
FCC Part 15 Class A, CE |
| Environment |
| Temperature |
| Operating: | -40 ~ 75 degree C | | Storage: | -40 ~ 75 degrees C |
|
| Operating: |
-40 ~ 75 degree C |
| Storage: |
-40 ~ 75 degrees C |
| Humidity |
| Operating: | 5 ~ 95% (non-condensing) | | Storage: | 5 ~ 95% (non-condensing) |
|
| Operating: |
5 ~ 95% (non-condensing) |
| Storage: |
5 ~ 95% (non-condensing) |
| * The actual data rate will vary on the quality of the copper wire and environment factors. |
| ** Default Downstream VC-203PR to VC-203PT ; Upstream VC-203PT to VC-203PR. |
