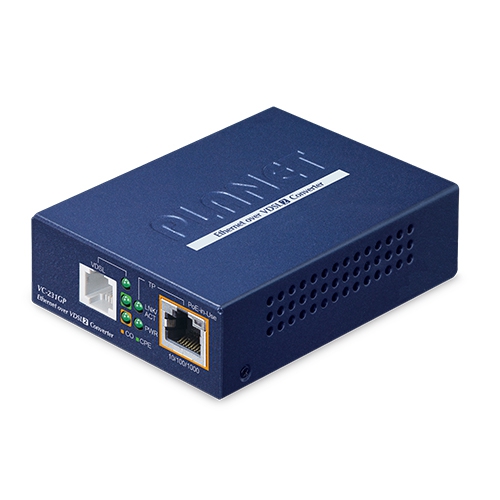

| Hardware Specifications |
| Hardware Version |
2 |
| LAN Ports |
1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
| VDSL Port |
1 VDSL2 RJ11 female phone jack
Twisted-pair telephone wires (AWG-24 or better) up to 1.4km |

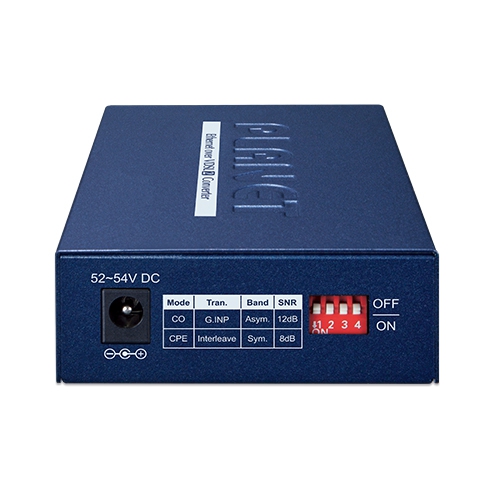

| DIP Switch & Functionality |
4-position DIP switch
CO or CPE mode selectable
Selectable G.INP and interleaved mode
Selectable target Band plan
Selectable target SNR mode |
| Phone Port |
Additional splitter for POTS connection |
| Dimensions (W x D x H) |
94 x 70.3 x 26.2 mm |
| Weight |
214g |
| Power Requirements |
DC 54V, 0.74A external power |
| Power Consumption |
34.5 watts/117BTU |

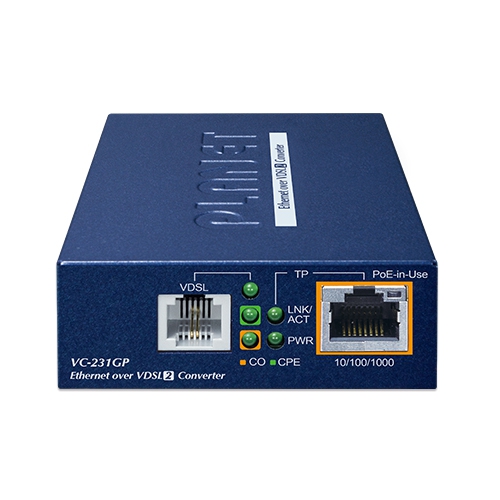

| LED Indicators |
1 x power: Green
1 x 10/100/1000BASE-T LNK/ACT: Green
1 x 10/100/1000BASE-T PoE-in-Use: Amber
1 x VDSL: Green
1 x CO: Green
1 x CPE: Green |
| Housing |
Metal |
| Installation |
Wall-mount or DIN-rail installation (optional) |
| Power over Ethernet Specifications |
| PoE Standard |
IEEE 802.3at PoE+ PSE |
| PoE Power Output Budget |
DC 54V, 30 watts |
| PoE Power Supply Type |
End-span |
| Power PIN Assignment |
1/2(+), 3/6(-) |
| Switch Specifications |
| Switch Processing Scheme |
Store-and-Forward |
| Address Table |
1K entries |
| Maximum Packet Size |
1522bytes |
| Standards Conformance |
| VDSL Compliance |
VDSL-DMT
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support)
ITU-T G.993.5 .vectoring
ITU-T G.998
G.INP |
| ADSL Compliance |
Capable of ADSL2/2+ standard
ITU G.992.3 G.dmt.bis
ITU G.992.5 G.dmt.bisplus
Data Rate: Up to 24Mbps |
| Standards Compliance |
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.1p Class of Service
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support)
ITU-T G.993.5 G.Vectoring & G.INP
ITU-T G.998 |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Environment |
| Temperature |
Operating: 0~50 degrees C
Storage: -10~70 degrees C |
| Humidity |
Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing) |
| Performance |
| RJ11 Performance*(Downstream/Upstream) |
Distance
(meter) | Interleave
(Downstream/Upstream: Mbps) | Asymmetric | Symmetric | 8dB | 12dB | 8dB | 12dB | 200m | 254/56 | 234/53 | 178/160 | 163/144 | 400m | 197/51 | 174/46 | 145/122 | 104/104 | 600m | 112/40 | 88/36 | 81/72 | 67/58 | 800m | 77/29 | 56/24 | 48/47 | 36/36 | 1000m | 32/7 | 28/6 | 18/17 | 16/15 | 1200m | 27/2 | 23/5 | 14/14 | 13/12 | 1400m | 18/1 | 15/1 | 12/6 | 9/4 | Distance
(meter) | G.INP
(Downstream/Upstream: Mbps) |
|
| Distance(meter) |
Interleave
(Downstream/Upstream: Mbps) |
| Asymmetric |
Symmetric |
| 8dB |
12dB |
| 200m |
254/56 |
| 400m |
197/51 |
| 600m |
112/40 |
| 800m |
77/29 |
| 1000m |
32/7 |
| 1200m |
27/2 |
| 1400m |
18/1 |
| Asymmetric |
Symmetric |
| 8dB |
12dB |
| 200m |
281/59 |
| 400m |
208/53 |
| 600m |
112/42 |
| 800m |
76/30 |
| 1000m |
32/9 |
| 1200m |
27/4 |
| 1400m |
24/2 |
