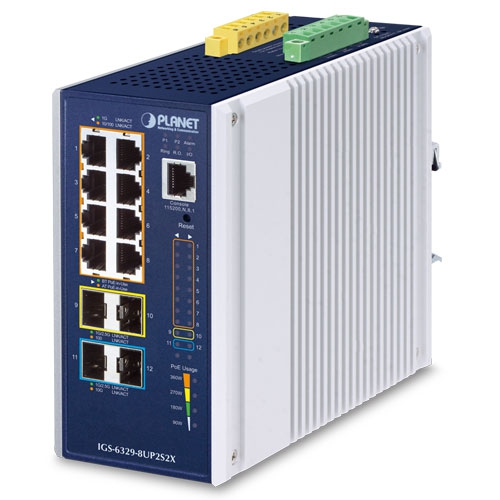

| Hardware Specifications |
| Copper Ports |
8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP Ports |
2 1000BASE-SX/LX/BX SFP slot interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX and 2500BASE-X SFP |
| SFP+ Ports |
2 10GBASE-SR/LR SFP+ slot interfaces (Port-11 to Port-12)
Compatible with 1000BASE-X and 2500BASE-X SFP |
| PoE Injector Ports |
8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8 |
| Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |

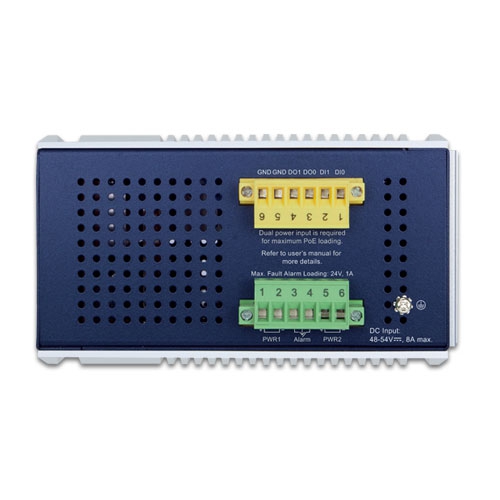

| Connector |
Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input (DI) |
2 digital inputs:
Level 0: -24~2.1V (±0.1V)
Level 1: 2.1~24V (±0.1V)
Input load to 24V DC, 10mA max. |
| Digital Output (DO) |
2 digital outputs:
Open collector to 24VDC, 100mA |
| Enclosure |
IP30 aluminum case |
| Installation |
DIN-rail or wall mounting |
| Dimensions (W x D x H) |
76 x 135 x 152 mm |
| Weight |
1,152g |
| Power Requirements |
Dual DC 48~54V, 8A max.
(>52V DC for 802.3bt PoE++ output recommended) |
| Power Consumption |
Max. 29 watts/98.96BTU@54V DC input (System on)
Max. 401 watts/1,368.27BTU@54V DC input (Full loading with 802.3bt PoE++ function) |
| ESD Protection |
Air 8KV DC
Contact 6KV DC |
| Surge Protection |
4KV DC |

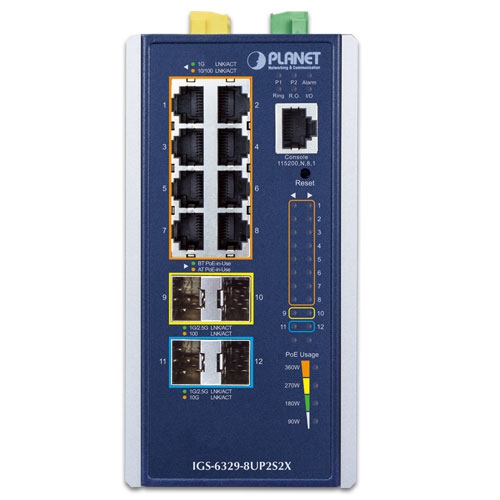

| LED Indicator |
System:
Power 1 (Green), Power 2 (Green), Alarm (Red)
Ring (Green), Ring Owner (Green), DIDO (Red)
Per 10/100/1000T RJ45 PoE++ Port:
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Amber)
802.3bt PoE++-in-use x 1 (Green)
802.3at/af PoE-in-use x 1 (Amber)
Per SFP Interface:
1G/2.5G LNK/ACT (Green)
100 LNK/ACT (Amber)
Per SFP+ Port:
10Gbps LNK/ACT (Green)
1Gbps LNK/ACT (Amber)
PoE Usage:
90W, 180W, 270W, 360W (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
66Gbps/non-blocking |
| Throughput (packet per second) |
56.55Mpps@ 64 bytes packet |
| Address Table |
32K entries, automatic source address learning and aging |
| Shared Data Buffer |
32Mbits |
| Jumbo Frame |
10Kbytes |
| SDRAM |
512Mbytes |
| Flash Memory |
64Mbytes |
| Flow Control |
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex |
| Power Over Ethernet |
| PoE Standard |
IEEE 802.3bt PoE++ Type-4 PSE
Backward compatible with 802.3at PoE+ PSE |
| PoE Power Supply Type |
802.3bt
UPOE/POH
End-span
Mid-span
Force |
| PoE Power Output |
802.3bt PoE++
Per port 52V~54V DC (depending on the power supply), max. 90 watts
UPoE(PoH)
Per port 52V~54V DC (depending on the power supply), max. 95 watts
IEEE 802.3at Standard
Per port 52V~54V DC (depending on the power supply), max. 36 watts
Force
Per port 52V~54V DC (depending on the power supply), max. 60 watts |
| Power Pin Assignment |
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
802.3bt/UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-) |
| PoE Power Budget |
Single power input: 240W maximum (depending on power input)
Dual power input: 360W maximum (depending on power input)
※Dual power input must be the same as DC voltage, like dual 54V |
| PoE Ability PD @ 12.5 watts |
8 units |
| PoE Ability PD @ 25 watts |
8 units |
| PoE Ability PD @ 51 watts |
6 units |
| PoE Ability PD @ 71 watts |
4 units |
| PoE Management Functions |
| Active PoE device alive detects |
Yes |
| PoE Power Recycle |
Yes, daily or predeinded schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Yes, max. 160 to 200 meters |
| PoE System Management |
System PoE Admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-temperature threshold alarm
PoE usage threshold alarm |
| PoE Port Management |
Port Enable/Disable/Schedule
PoE mode control
802.3bt
UPoE
802.3at End-span
802.3at Mid-span
Force mode
Port Priority |
| Layer 2 Functions |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status |
| Port Mirroring |
TX/RX/both
Many-to-1 monitor
Supports up to 5 sessions |
| VLAN |
IEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk
Supports 3 trunk groups with 4 ports per trunk group |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups |
| Bandwidth Control |
Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms
Supports Major ring and sub-ring |
| Synchronization |
IEEE 1588v2 PTP(Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet |
| Layer 3 Functions |
| IP Interfaces |
Max. 128 VLAN interfaces |
| Routing Table |
Max. 128 routing entries |
| Routing Protocols |
IPv4 hardware static routing
IPv6 hardware static routing
RIPv2 dynamic routing
IPv4 OSPFv2 dynamic routing
IPv6 OSPFv3 dynamic routing |
| Security Functions |
| Access Control List |
IP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 256 entries |
| Security |
Port security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level |
| AAA |
RADIUS client
TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication |
| Management Functions |
| Basic Management Interfaces |
Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLSv1.2, SNMPv3 |
| System Management |
Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app |
| Event Management |
Remote Syslog
System log
SMTP |
| ONVIF |
ONVIF device discovery
ONVIF device monitoring
Floor Map |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A
CE:
EN 55032 , EN 55035
EN 50121-4, EN 50121-1
EN 61000-6-2, EN 61000-6-4 |
| Railway |
EN50121-4 |
| Stability Testing |
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring |
| Environment |
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
