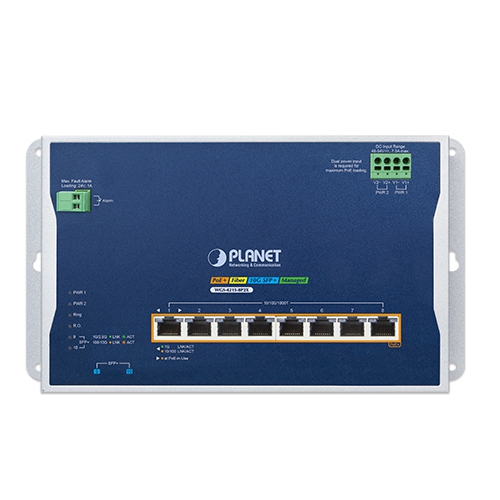

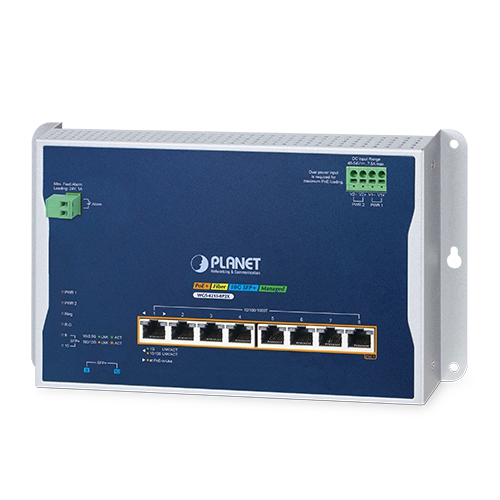

| Hardware Specifications |
| Copper Ports |
8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |

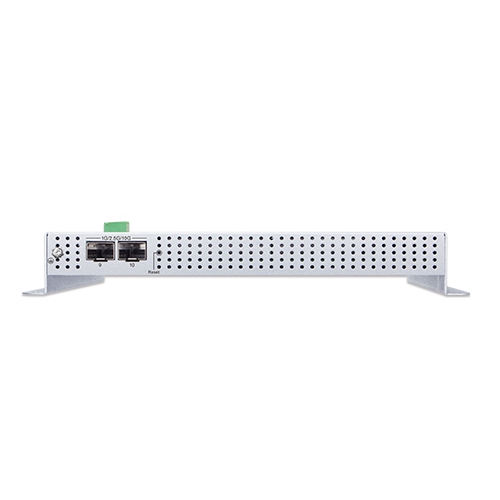

| SFP+ Slots |
2 100/1G/2.5G/10GBASE-X SFP+ interfaces |
| PoE Injector Port |
8 ports with 802.3at PoE+ injector function (Ports1 to 8) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory Default |
| Connector |
4-pin terminal block for power input
Pin 1/2 for Power 1 (Pin 1: V+ / Pin 2: V-)
Pin 3/4 for Power 2 (Pin 3: V+ / Pin 4: V-)
2-pin terminal block for event alarm |
| Alarm |
One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V DC |
| Enclosure |
IP30 metal case |

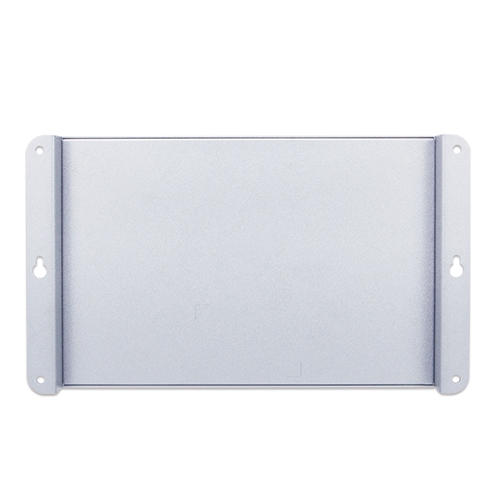

| Installation |
Wall-mount |
| Dimensions (W x D x H) |
245 x 36 x 140 mm |
| Weight |
914g |
| Power Requirements |
48~54V DC
(>52V DC for PoE and PoE+ output recommended)
Dual power input is required for maximum power loading
Maximum current 7.5A |
| Power Consumption |
System on:
Max. 15.7 watts/53.57 BTU @54V DC input (288-watt PoE Budget)
Full loading with PoE function:
Max. 344.3 watts/1174.80 BTU @Dual 54V DC input (288-watt PoE Budget) |
| ESD Protection |
6KV DC |
| LED Indicator |
System:
PWR 1(Green)
PWR 2 (Green)
Ring (Green)
Ring Owner (Green)
Per 10/100/1000T RJ45 PoE Ports:
100/1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
802.3af/at PoE-in-Use (Amber)
Per SFP+ Interface:
1G/2.5G LNK/ACT (Green)
10G LNK/ACT (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
56Gbps/non-blocking |
| Throughput (packet per second) |
41.67Mbps@ 64 bytes packet |
| Address Table |
16K entries, automatic source address learning and aging |
| Shared Data Buffer |
12Mbits |
| Flow Control |
IEEE 802.3x pause frame for full duplex |
| Jumbo Frame |
12Kbytes |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Power Over Ethernet |
| PoE Standard |
IEEE 802.3at PoE+ PSE |
| PoE Power Supply Type |
802.3at |
| PoE Power Output |
Per port 54V DC
End-span mode: maximum 36 watts
Force mode: maximum 36 watts
legacy mode: maximum 36 watts |
| Power Pin Assignment |
802.3at PoE: End-span: 1/2(+), 3/6(-) |
| PoE Power Budget |
Single power input: 180W maximum (depending on power input)
Dual power input: 288W maximum (depending on power input)
※Dual power input must be the same as DC voltage, like dual 54V |
| Number of 802.3at PDs |
8 |
| PoE Management Functions |
| Enhanced PoE Mode |
System PoE Admin Mode
Consumption Mode/Allocation Mode
Temperature Threshold |
| Enhanced PoE Mode |
Standard/Legacy/Force |
| Active PoE Device Live Detection |
Yes |
| PoE Power Recycling |
Yes, daily or predefined schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extended Mode |
Yes, max. up to 250 meters |
| Layer 2 Function |
| Port Mirroring |
TX/RX/both
Many-to-1 monitor
Up to 4 sessions |
| VLAN |
802.1Q tagged VLAN
802.1ad Q-in-Q tunneling (VLAN stacking)
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP and static trunk
Supports 8 groups with 8 ports per trunk |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping |
IPv4 IGMP snooping v2, v3
IGMP querier
Up to 256 multicast groups |
| MLD Snooping |
IPv6 MLD snooping v1, v2, up to 256 multicast groups |
| QoS |
8 mapping IDs to 8 level priority queues
Port number
802.1p priority
DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms |
| Layer 3 Functions |
| IP Interfaces |
Max. 64 VLAN interfaces |
| Routing Table |
Max. 32 routing entries |
| Routing Protocols |
IPv4 hardware static routing
IPv6 hardware static routing |
| Security Functions |
| Access Control List |
IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries |
| Port Security |
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication |
| MAC Security |
IP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries |
| Enhanced Security |
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard |
| Management Functions |
| Basic Management Interfaces |
Web browser
Telnet
SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLS v1.2, SNMP v3 |
| System Management |
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS, NMSViewerPro and CloudViewerPro |
| Event Management |
Remote/Local Syslog
System log |
| ONVIF |
ONVIF device discovery
ONVIF device monitoring
Floor map |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE802.3ae 10Gb/s Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az for Energy-Efficient Ethernet
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS Ring |
| Environment |
| Operating |
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
