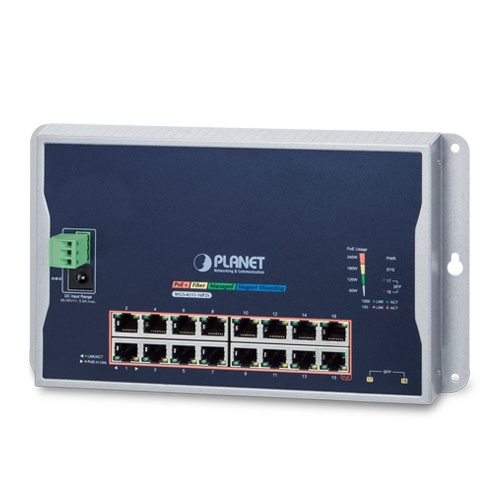

| Hardware Specifications |
| Copper Ports |

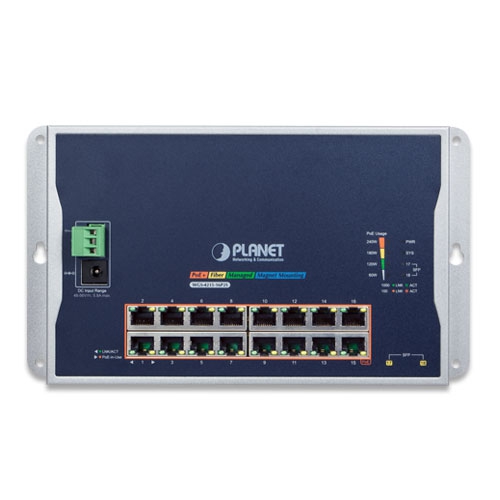

Sixteen 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| PoE Inject Ports |
Sixteen with 802.3at PoE+ injector function (Ports1 to 16) |
| SFP/mini-GBIC Ports |

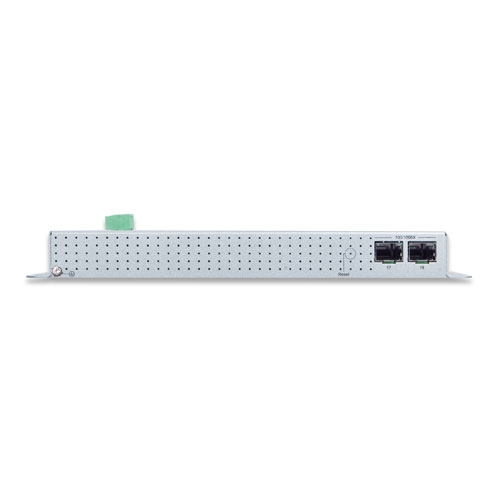

Two 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Connector |
Removable 3-pin terminal block for power input
Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)
Pin 3 for earth ground
DC power jack with 2.1mm central pole |
| Power Requirements |
48~54V DC, 5.8A (max.) terminal block power input
48~54V DC, 5.8A (max.) DC jack power input
Note: The two power input interfaces don’t support power redundant function. |
| Power Consumption/ Dissipation |
Max. 276 watts/941 BTU |
| Dimensions (W x D x H) |
245 x 24.4 x 140 mm |
| Weight |
929g |
| Enclosure |
IP30 metal case |
| Installation |

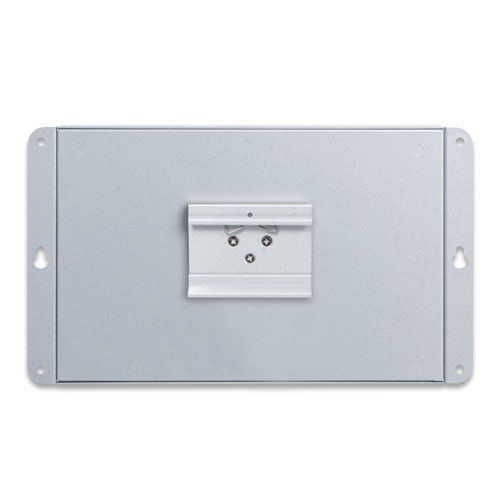

Fixed wall mount, magnetic wall mount or DIN rail |
| ESD Protection |
Contact Discharge 6KV DC
Air Discharge 8KV DC |
| LED |
Power LED:
Power (Green)
PoE Port (Ports 1 to 16):
PoE-in-Use (Amber)
LNK/ACT (Green)
100/1000X SFP Ports (Port 17 to 18):
1000 LNK/ACT (Green)
100 LNK/ACT (Amber) |
| Switch Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
36Gbps/non-blocking |
| Switch Throughput@64 bytes |
26.78Mpps @64 bytes |
| MAC Address Table |
8K entries |
| Shared Data Buffer |
4.1 megabits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
10Kbytes |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af/802.3at Power over Ethernet PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
IEEE 802.3af Standard
Per port 48V~54V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
Per port 50V~54V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Budget |
240 watts (depending on power input) |
| Max. Number of Class 2 PDs |
16 |
| Max. Number of Class 3 PDs |
16 |
| Max. Number of Class 4 PDs |
9 |
| PoE Management Functions |
| PoE Management |
PD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring
PoE Extension |
| Enhanced PoE Mode |
Standard/Legacy/Force |
| Active PoE De vice Live Detection |
Yes |
| PoE Power Recycling |
Yes, daily or predefined schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Yes, max. up to 250 meters |
| Layer 2 Functions |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor
Up to 4 sessions |
| VLAN |
802.1Q tagged VLAN
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP and static trunk
Supports 8 groups with 8 ports per trunk |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU guard, BPDU filtering and BPDU forwarding |
| IGMP Snooping |
IPv4 IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping, up to 256 multicast groups |
| QoS |
8 mapping IDs to 8 level priority queues
Port Number
802.1p priority
DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms |
| Security Functions |
| Access Control List |
IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries |
| Port Security |
IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication |
| MAC Security |
IP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries |
| Enhanced Security |
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard |
| Management Functions |
| Basic Management Interfaces |
Web browser;Telnet; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLSv1.2, SNMPv3 |
| Switch Management |
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer |
| Event Management |
Remote/Local Syslog
System log |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC 768 UDP
RFC 783 TFTP
RFC 793 TCP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU G.8032 ERPS Ring |
| Environment |
| Operating |
Temperature: -10 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Accessories |
| Standard Accessories |
Quick Installation Guide x 1
3-pin Terminal Block Connector x 1
Wall-mounted Kit x 1
DIN-rail Kit x 1
Magnet Kit x 1
RJ45 Dust Cap x 16
SFP Dust Cap x 2 |
