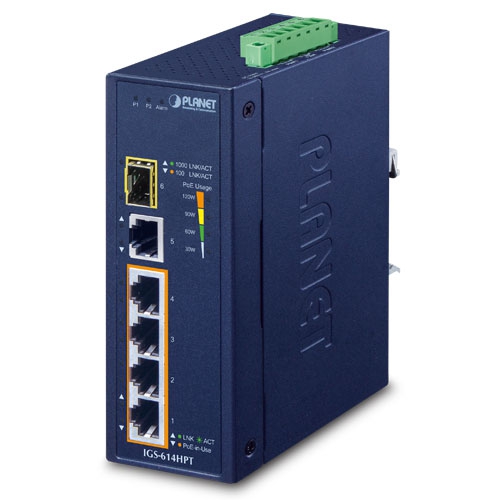

| Hardware Specifications |
| Copper Ports |
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE Injector Ports |
Four ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| SFP Slots |
1 1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP |
| Connector |

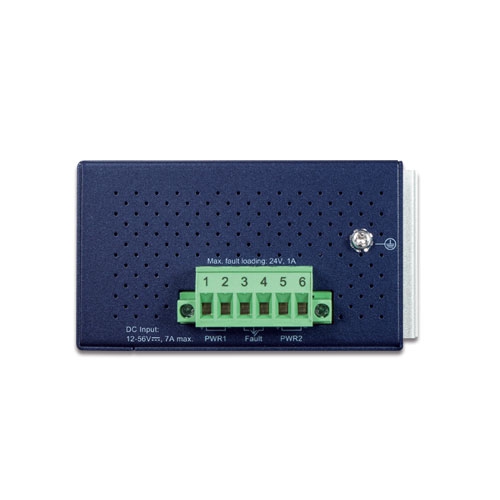

Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Power Requirements |
12~54V DC, 7A (max.)
Redundant power with reverse polarity protection |
| Power Consumption |
Max. 5.94 watts/20BTU@54V DC input (System)
Max. 139 watts/474BTU(Ethernet + PoE Full Loading) |
| Dimensions(W x D x H) |
50 x 86.4 x 135 mm |
| Weight |
623g |
| Enclosure |
IP40 metal case |
| Installation |
DIN-rail kit and wall-mount kit |
| ESD Protection |
6KV |

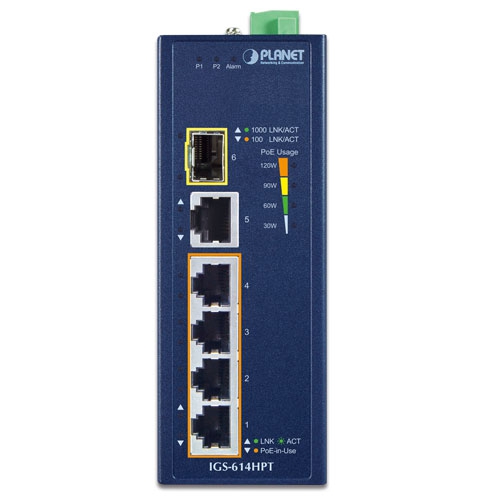

| LED |
3 x LED for System and Power:
Green: DC Power
Green: DC Power 2
Red: Power Alarm
2 x LED for PoE Copper Port (Ports 1~Port 4):
Green: LNK/ACT (10/100/1000Mbps)
Amber: PoE-In-Use
2 x LED for 10/100/1000T Copper Port (Port 5):
Green: 1000 LNK/ACT
Amberr: 10/100 LNK/ACT
2 x LED for 100/1000X SFP Interface (Port 6):
Green: 1000 LNK/ACT
Amber: 100 LNK/ACT
4 x LED for PoE Power Usage (W) (Low to high):
Amber: 30W, 60W, 90W and 120W |
| Switch Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
12Gbps |
| Throughput (packet per second) |
8.93Mpps@64bytes |
| Address Table |
2K entries |
| Buffer Memory |
4M bits on-chip buffer memory |
| Jumbo Frame |
9Kbytes |
| Flow Control |
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type |
End-span |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Output |
Per port 54V DC, max. 36 watts |
| PoE Power Budget (max.) |
60W@12V DC input
90W@24V DC input
120W@48V-54V DC input |
| Max. Number of Class 2 PDs |
4 |
| Max. Number of Class 3 PDs |
4 |
| Max. Number of Class 4 PDs |
4 |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE, UL |
| Stability Testing |
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
IEEE 802.1p Class of Service |
| Environment |
| Temperature |
Operating: -40~75 degrees C
Storage: -40~75 degrees C |
| Humidity |
Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing) |
