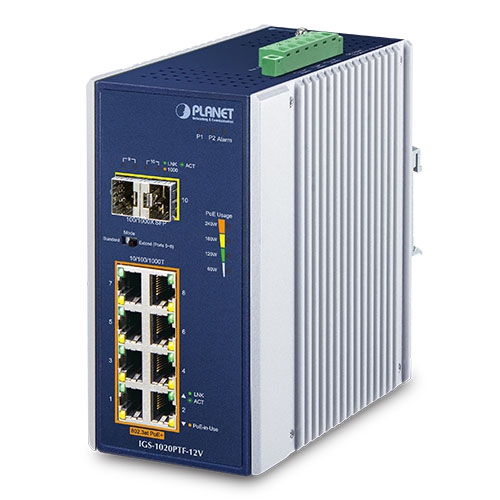

| Hardware Specifications |
| Copper Ports |
8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE Injector Ports |
8 ports with 802.3at PoE+ injector function (Ports 1 to 8) |
| SFP Slots |
2 1000BASE-SX/LX/BX SFP interfaces (Ports 9 to 10)
Compatible with 100BASE-FX SFP |

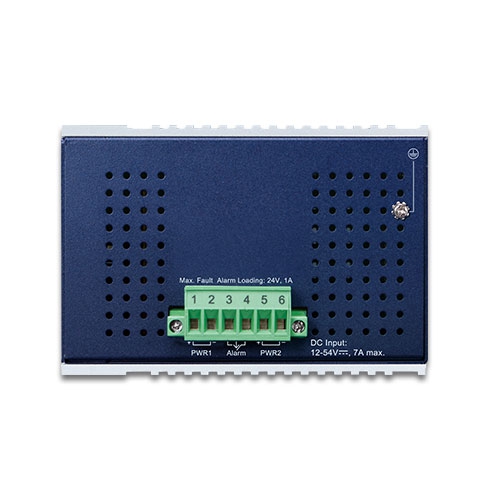

| Connector |
Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| DIP Switch |
Standard/Extend mode (Extend mode for Ports 5 to 8 only) |
| Power Requirements |
12~54V DC, 7A (max.) |
| Power Consumption |
Max. 5.6 watts/19BTU@54V DC input (System)
Max. 8.4 watts/29BTU@54V DC input (Ethernet Full Loading)
Max. 265.1 watts/904BTU@54V DC input (Ethernet + PoE Full Loading) |
| Dimensions (W x D x H) |
76.8 x 107.3 x 152mm |
| Weight |
1133g |
| Enclosure |
IP30 aluminum case |
| Installation |
DIN-rail/ wall-mount |
| ESD Protection |
6KV |

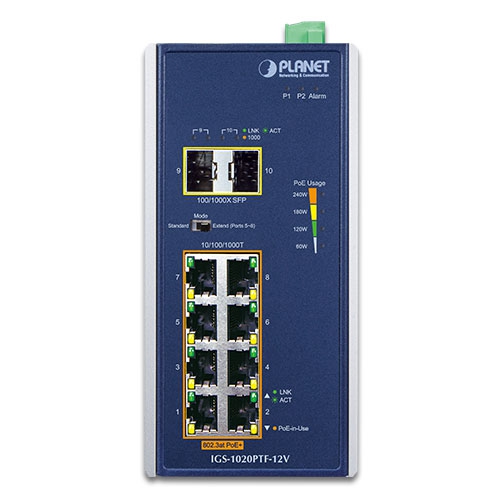

| LED Indicators |
3 x LED for System and Power:
Green: DC Power 1
Green: DC Power 2
Red: Power Fault Alarm
8 x LED for PoE Copper Port (Ports 1 to 8):
Green: LNK/ACT (10/100/1000Mbps)
Amber: PoE-in-Use
2 x LED for 100/1000X Fiber Port (Ports 9 to 10):
Green: LNK/ACT (100/1000Mbps)
Amber: 1000Mbps
4 x LED for PoE Usage
Amber: 60W, 120W, 180W and 240W |
| Switch Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
20Gbps |
| Throughput (packet per second) |
14.8Mpps@64bytes |
| Address Table |
8K entries |
| Buffer Memory |
4M bits on-chip buffer memory |
| Jumbo Frame |
9Kbytes |
| Flow Control |
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type |
End-span |
| Power Pin Assignment |
1/2 (+), 3/6 (-) |
| PoE Power Output |
Per port 54V DC, Max. 30 watts |
| PoE Power Budget (max.) |
240W maximum @54V DC
120W maximum@24V DC
60W maximum@12V DC |
| Max. Number of Class 3 PDs@25W |
8 |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE, UL |
| Stability Testing |
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet |
| Environment |
| Temperature |
Operating: -40~75 degrees C
Storage: -40~85 degrees C |
| Humidity |
Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing) |
